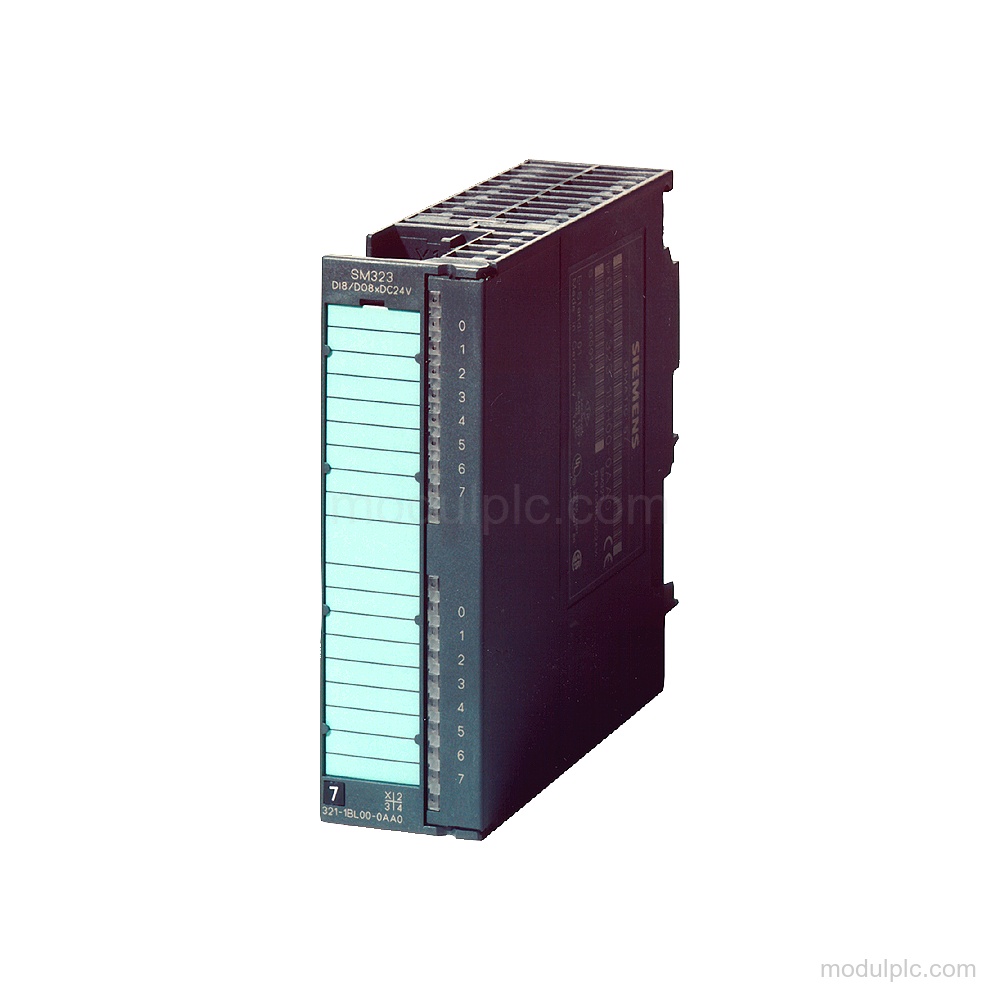

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital input channels | 8 |
| Digital output channels | 8 |
| Rated load voltage | 24 V DC |
| Input voltage for signal "0" | -30 V to +5 V |
| Input voltage for signal "1" | 13 V to 30 V |
| Output current for signal "1", rated | 0.5 A |
| Output switching frequency with resistive load, max. | 100 Hz |
| Required front connector | 20-pin |
| Digital input isolation | Between channels in groups of 8; between channels and backplane bus with optocoupler |
| Digital output isolation | Between channels in groups of 8; between channels and backplane bus with optocoupler |
Applications
- Digital signal control: The module controls a digital input and provides digital outputs for signal control.
Key Features
- Digital inputs and outputs: 8 digital inputs and 8 digital outputs.
- 24 V DC supply and signals: Rated load voltage is 24 V DC; input voltage is DC with a rated value of 24 V.
- Output current: Output current for signal "1" has a rated value of 0.5 A and a permissible range of 5 mA to 0.6 A.
- Electrical isolation: Digital inputs and digital outputs are electrically isolated between channels in groups of 8 and from the backplane bus by optocouplers.
- Output protection and indicators: Digital outputs have short-circuit protection. Green status indicators are provided for digital inputs and digital outputs.

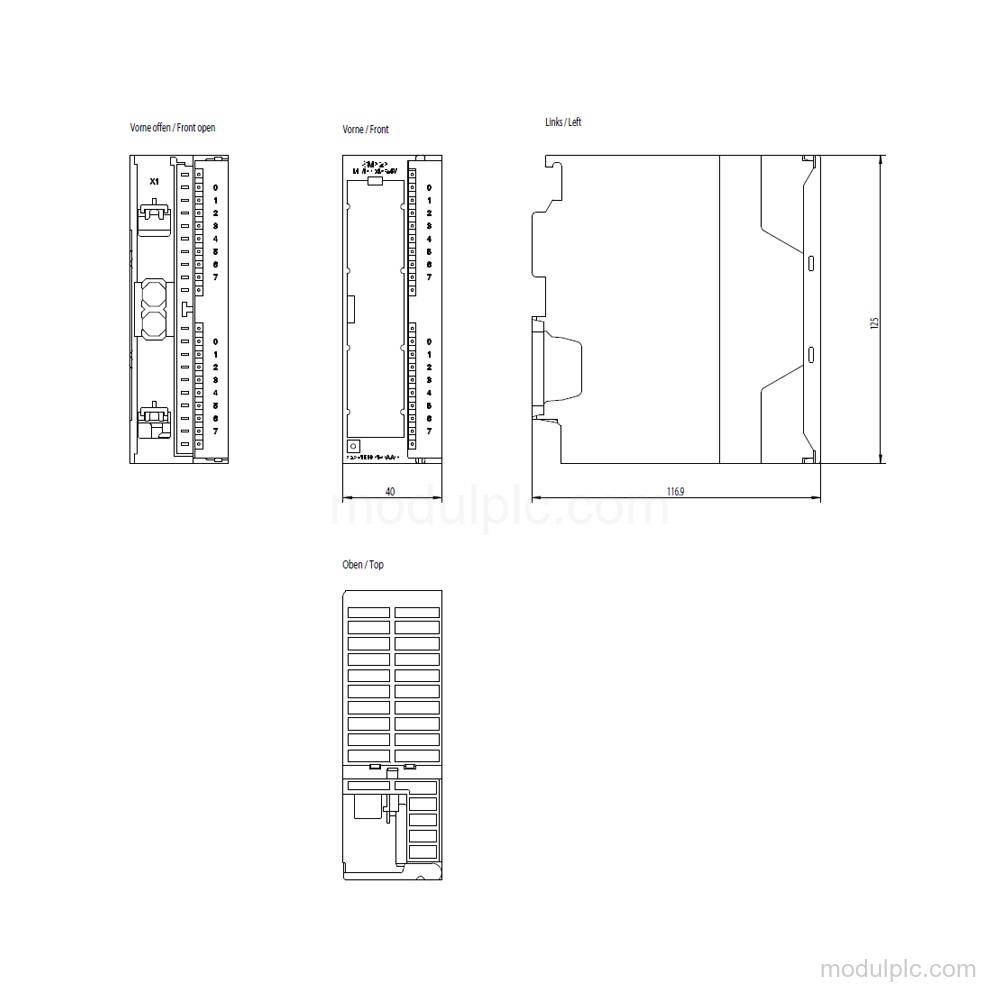

- Connection and dimensions: The required front connector is 20-pin. Dimensions are 40 mm wide, 125 mm high, and 120 mm deep.
Frequently Asked Questions
1. How many digital inputs and outputs does 6ES7323-1BH01-0AA0 have?
It has 8 digital inputs and 8 digital outputs.
2. What signal ranges are supported by the digital inputs?
For signal "0", the input voltage is -30 V to +5 V. For signal "1", it is 13 V to 30 V.
3. What connector is required for this module?
A 20-pin front connector is required.
