Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Output type | 8 relay digital outputs |
| Rated output current | 5 A for signal "1" |
| Load voltage L+ | 24 V DC rated value; permissible range 24 V to 120 V DC |
| Load voltage L1 | 230 V AC rated value |
| Diagnostics | Parameterizable diagnostics and diagnostic alarms; diagnostic information readable |
| Isolation | Between channels; between channels and backplane bus with optocoupler; between channels and relay power supply |
| Front connector | 40-pin |
| Switching frequency | 2 Hz maximum with resistive load; 0.5 Hz maximum with inductive load |
| Installation limit | 5 A maximum for horizontal installation up to 60 °C; 5 A maximum for vertical installation up to 40 °C |
Applications
- Digital output control: The relay outputs can control a digital input.
Key Features
- Digital relay outputs: 8 digital outputs with relay switching and 5 A rated output current for signal "1".
- Supply values: Load voltage L+ rated value: 24 V DC; load voltage L1 rated value: 230 V AC.
- Diagnostics: Parameterizable diagnostics and diagnostic alarms are available, with a red SF group-error LED and green digital-output status indicators.
- Electrical isolation: The digital outputs have potential separation between channels, between channels and the backplane bus through optocouplers, and between channels and the relay power supply.
- Front connection: A 40-pin front connector is required.

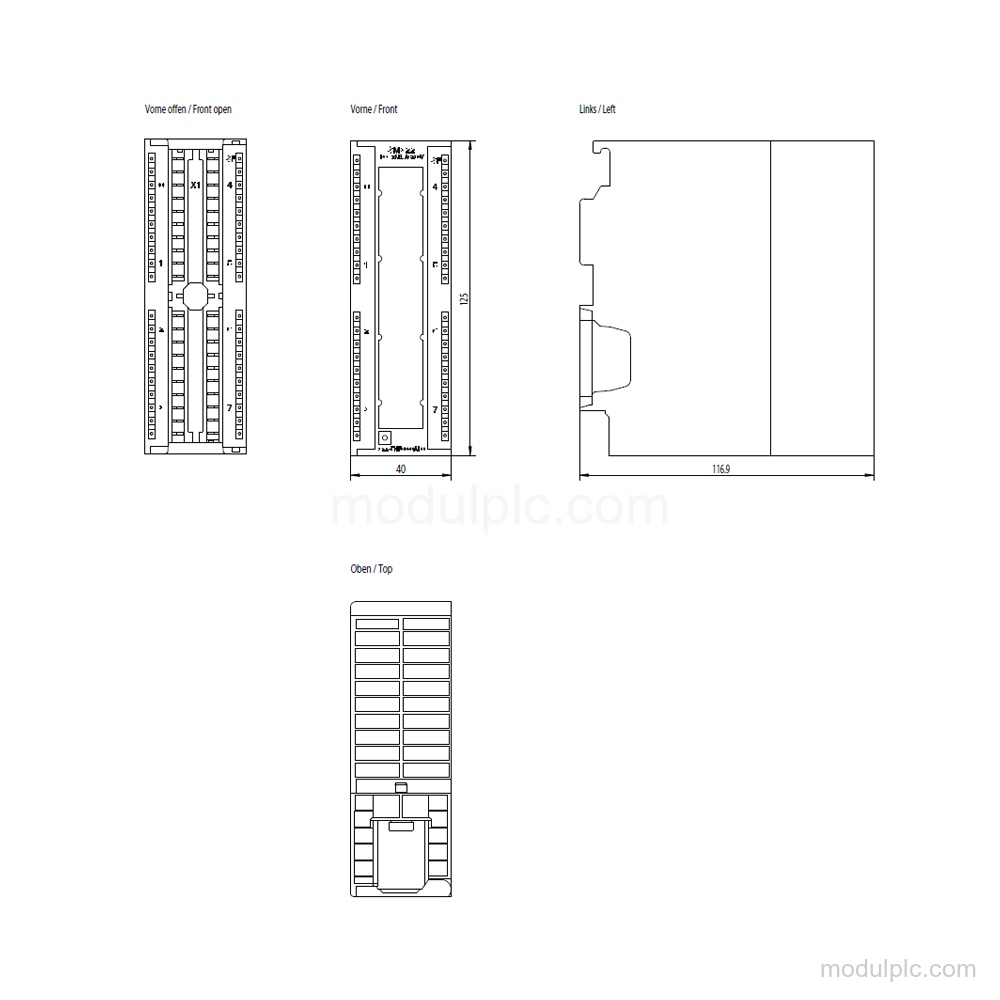

- Installation and dimensions: Maximum output current is 5 A for horizontal installation up to 60 °C and vertical installation up to 40 °C. Dimensions are 40 mm × 125 mm × 120 mm.
Frequently Asked Questions
1. How many relay outputs does Siemens 6ES7322-5HF00-0AB0 have?
It has 8 digital relay outputs.
2. What output current does 6ES7322-5HF00-0AB0 provide?
The rated output current for signal "1" is 5 A, with a minimum load current of 10 mA.
3. Which connector is required?
A 40-pin front connector is required.
4. Does the module provide diagnostics?
Yes. It has parameterizable diagnostics, parameterizable diagnostic alarms, readable diagnostic information, a red SF group-error LED, and green digital-output status indicators.
5. What installation temperature limits apply to the 5 A output current?
The maximum output current is 5 A for horizontal installation up to 60 °C and vertical installation up to 40 °C.
