Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | 8 relay outputs |
| Output isolation | Between channels and from the backplane bus; optocoupler |
| Rated output current | 5 A for signal "1" |
| Relay coil supply voltage | 24 V DC |
| Load voltage | 120 V DC or 230 V AC |
| Front connector | 40-pin |
| Lamp-load switching capacity | 1 500 W at 230 V AC |
| Switching frequency | 2 Hz with resistive load; 0.5 Hz with inductive load |
| Operating cycles | 300 000 maximum |
| Product lifecycle | Product cancellation |
Applications
- Digital input control: The digital outputs can control a digital input.
Key Features
- Digital outputs: 8 isolated relay outputs; the outputs are potential-separated between channels and from the backplane bus by optocoupler.
- Output current: Rated output current for signal "1": 5 A; minimum load current: 5 mA.
- Supply and coil voltage: Load voltage: 120 V DC or 230 V AC. Rated relay coil supply voltage L+ (DC): 24 V.
- Connection: Required front connector: 40-pin. Connectors with spring-loaded terminals can be used as of 6ES7392-1BM01-0AA0.
- Switching capacity: Maximum switching capacity on lamp load: 1 500 W at 230 V AC. Maximum switching frequency: 2 Hz with resistive load and 0.5 Hz with inductive load.

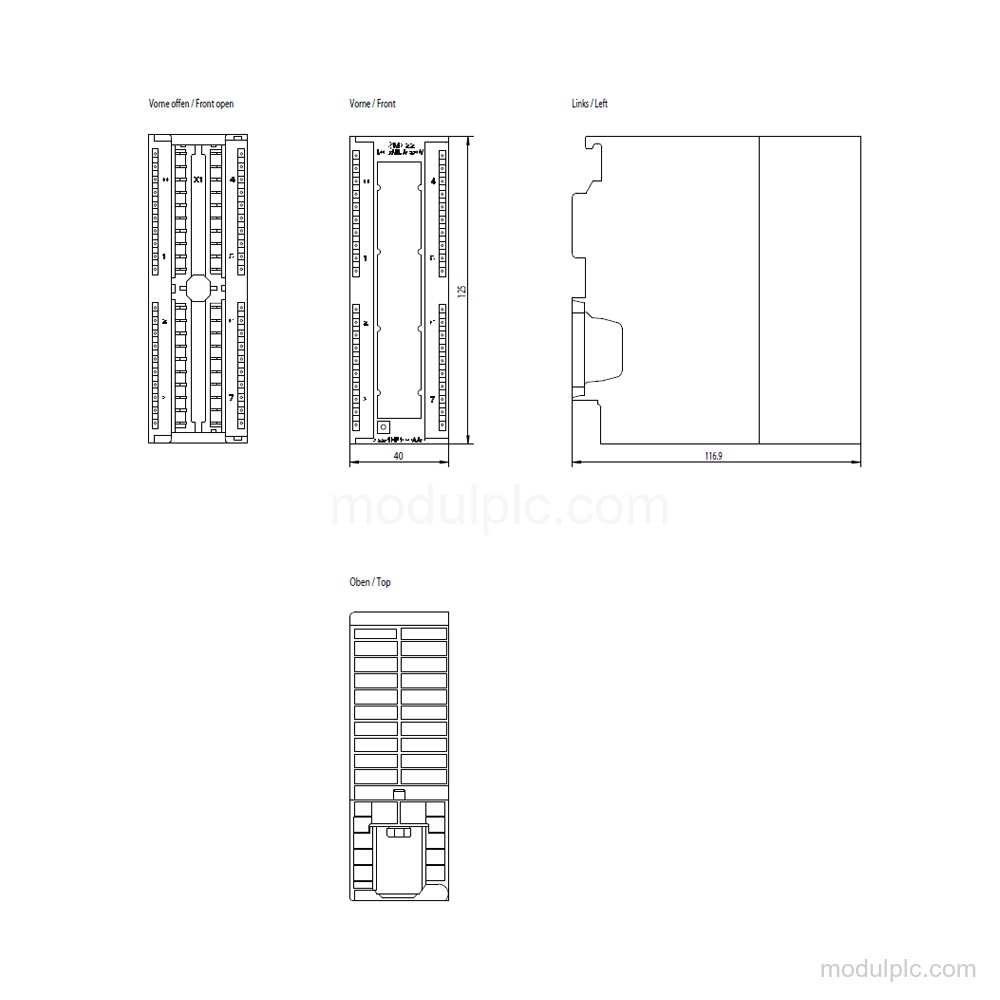

- Installation and dimensions: Maximum output current is 5 A for horizontal installation up to 60 °C and vertical installation up to 40 °C. Dimensions: 40 mm × 125 mm × 120 mm.
Frequently Asked Questions
1. How many relay outputs does Siemens 6ES7322-1HF10-0AA0 have?
It has 8 isolated relay outputs.
2. What output current is supported?
The rated output current for signal "1" is 5 A, with a minimum load current of 5 mA.
3. What supply voltage does the relay coil use?
The rated relay coil supply voltage L+ (DC) is 24 V.
4. Which front connector is required?
A 40-pin front connector is required. Connectors with spring-loaded terminals can be used as of 6ES7392-1BM01-0AA0.
5. Does the module include short-circuit protection or diagnostics?
It has no short-circuit protection, alarms, or diagnostics function; short-circuit protection must be provided externally.
