Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC S7-300 SM 322 isolated digital output |
| Digital outputs | 8 |
| Load voltage | 230 V rated; 120/230 V AC specified |
| Permissible load-voltage range | 93 V to 264 V AC, 47 Hz to 63 Hz |
| Output current, signal "1" | 10 mA to 2 A at 0 to 40 °C; 10 mA to 1 A at 40 to 60 °C |
| Short-circuit protection | 8 A, 250 V fuse per group |
| Diagnostics | Blown fuse and missing load voltage |
| Potential separation | Between channels in groups of 4; between channels and backplane bus via optocoupler |
| Front connector | 20-pin |
Applications
- Digital output control: Controls digital inputs.
- Redundant load control: Supports redundant control of a load; parallel switching of two outputs is not supported for uprating.
Key Features
- 8 isolated digital outputs: SM 322 provides 8 digital outputs with potential separation between channels and the backplane bus through an optocoupler.
- AC load voltage: Rated load voltage is 230 V; the specified load-voltage range is 120/230 V AC, with a permissible range of 93 V to 264 V at 47 Hz to 63 Hz.
- Output current: Signal "1" output current is 10 mA to 2 A for 0 to 40 °C and 10 mA to 1 A for 40 to 60 °C.
- Protection and diagnostics: Short-circuit protection is provided with an 8 A, 250 V fuse per group. Diagnostics detect a blown fuse or missing load voltage, with PWR, FSG, SF, and digital-output status LEDs.
- Front connection: The required front connector is 20-pin.

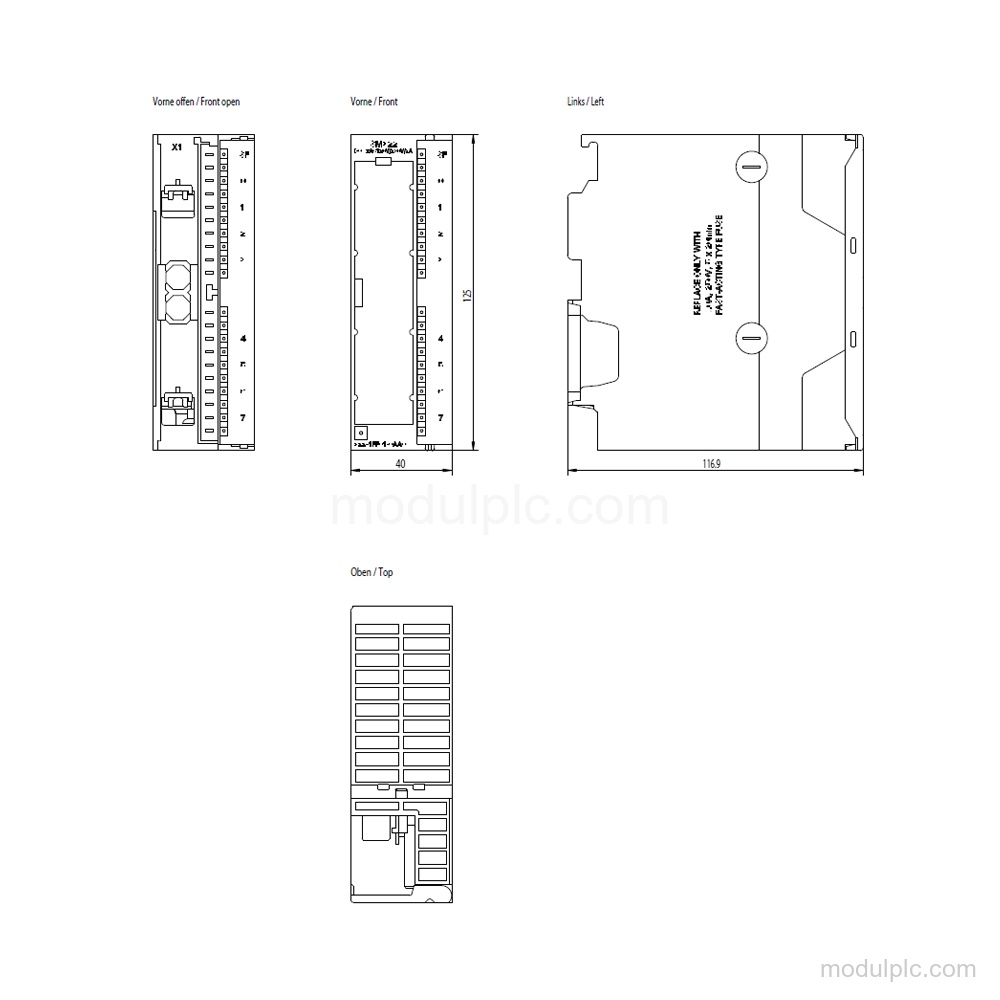

- Dimensions and weight: Dimensions are 40 mm wide, 125 mm high, and 120 mm deep; approximate weight is 275 g.
Frequently Asked Questions
1. What type of output module is Siemens 6ES7322-1FF01-0AA0?
It is a SIMATIC S7-300 SM 322 isolated digital output module with 8 digital outputs.
2. What load voltage does 6ES7322-1FF01-0AA0 use?
The rated load voltage is 230 V, with 120/230 V AC specified and a permissible range of 93 V to 264 V at 47 Hz to 63 Hz.
3. What connector is required?
A 20-pin front connector is required.
4. Does the module provide diagnostics?
Yes. Diagnostics detect a blown fuse or missing load voltage, and LEDs indicate PWR, FSG, SF, and digital-output status.
