Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital outputs | 64 |
| Rated load voltage | 24 V DC |
| Permissible load voltage range | 20.4 V to 28.8 V |
| Rated output current for signal "1" | 0.3 A |
| Output current range for signal "1" | 2.4 mA to 0.36 A |
| Output isolation | Between channels in groups of 16; between channels and backplane bus with optocoupler |
| Output delay with resistive load | 450 μs maximum for "0" to "1" and "1" to "0" |
| Front connector | Cable 6ES7392-4Bxx0-0AA0; terminal blocks 6ES7392-1xN00-0AA0 |
| Lifecycle | Product cancellation |
Applications
- Digital output control: Controls digital inputs.
- Redundant load control: Supports parallel switching of two outputs for redundant control of a load.
Key Features
- Digital outputs: Has 64 digital outputs, isolated in groups of 16.
- Load voltage: Rated load voltage L+ is 24 V DC, with a permissible range of 20.4 V to 28.8 V.
- Output current: Rated output current for signal "1" is 0.3 A, with a permissible range of 2.4 mA to 0.36 A.
- Output protection: Has electronic short-circuit protection and can control a digital input.
- Connection: Requires a front connector: cable 6ES7392-4Bxx0-0AA0 and terminal blocks 6ES7392-1xN00-0AA0.

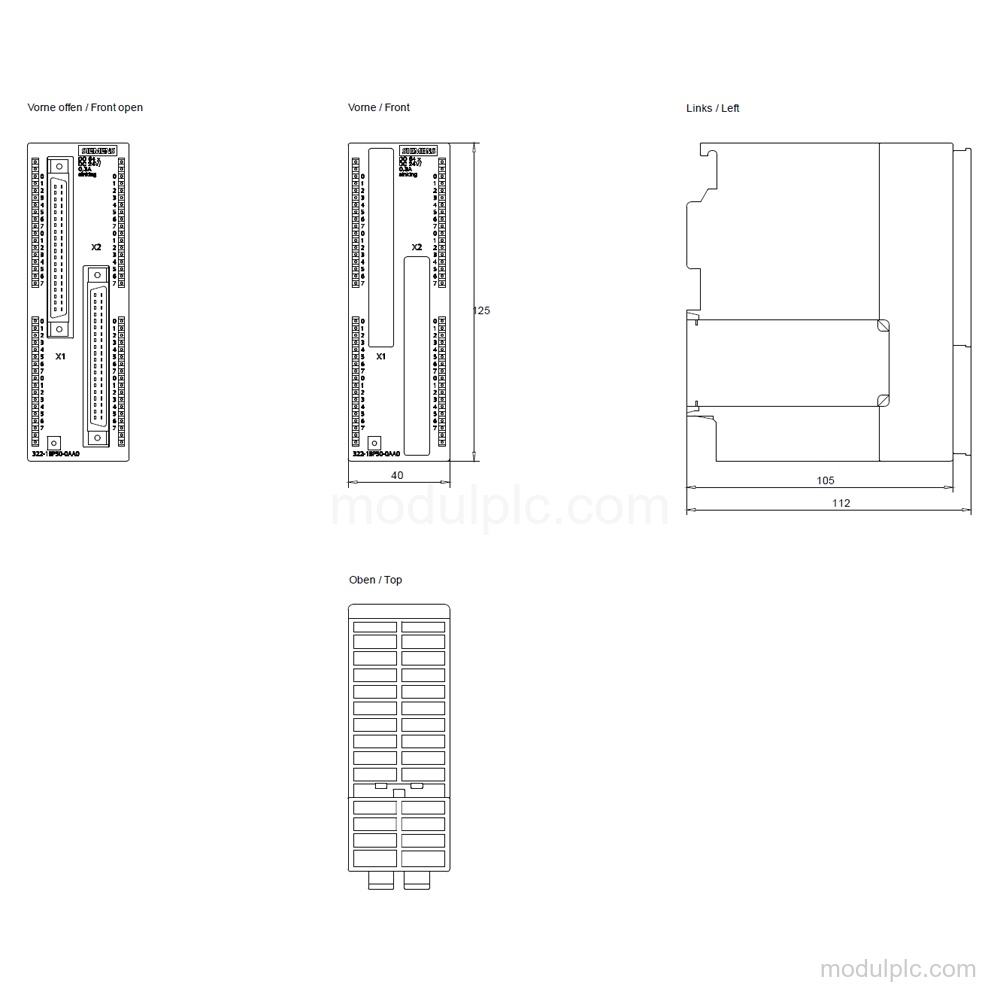

- Module dimensions: Dimensions are 40 mm wide, 125 mm high, and 112 mm deep; approximate weight is 230 g.
Frequently Asked Questions
1. What type of module is Siemens 6ES7322-1BP50-0AA0?
It is a SIMATIC S7-300 digital output module with 64 digital outputs.
2. How many channels does the 6ES7322-1BP50-0AA0 have?
It has 64 digital outputs, isolated in groups of 16.
3. What load voltage and output current does it use?
The rated load voltage is 24 V DC, and the rated output current for signal "1" is 0.3 A.
4. Which connector is required?
It requires cable 6ES7392-4Bxx0-0AA0 and terminal blocks 6ES7392-1xN00-0AA0.
5. Is the module supplied with the required connectors?
It is without the required terminal blocks and cable; these are required separately.
