Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital outputs | 16 |
| Rated load voltage | 24 V DC |
| Permissible load voltage range | 20.4 V to 28.8 V |
| Rated output current for signal "1" | 0.5 A |
| Output current range for 0 to 40 °C | 5 mA to 0.6 A |
| Output current range for 40 to 60 °C | 5 mA to 0.6 A |
| Maximum switching frequency with resistive load | 1 000 Hz |
| Output delay, "0" to "1" | 100 μs max. |
| Output delay, "1" to "0" | 200 μs max. |
| Required front connector | 20-pin |
| Product lifecycle | Product cancellation |
Applications
- Digital output control: The module controls a digital input through its digital outputs.
Key Features
- 16 isolated digital outputs: The module has 16 digital outputs with potential separation between channels in groups of 8 and between the channels and the backplane bus by optocoupler.
- 24 V DC load supply: Rated load voltage is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
- 0.5 A output current: Rated output current for signal "1" is 0.5 A; the permissible range is 5 mA to 0.6 A for 0 to 40 °C and 40 to 60 °C.
- Electronic short-circuit protection: The digital outputs have electronic short-circuit protection and can control a digital input.
- High-speed switching: With a resistive load, maximum switching frequency is 1 000 Hz; output delay is up to 100 μs from "0" to "1" and 200 μs from "1" to "0".

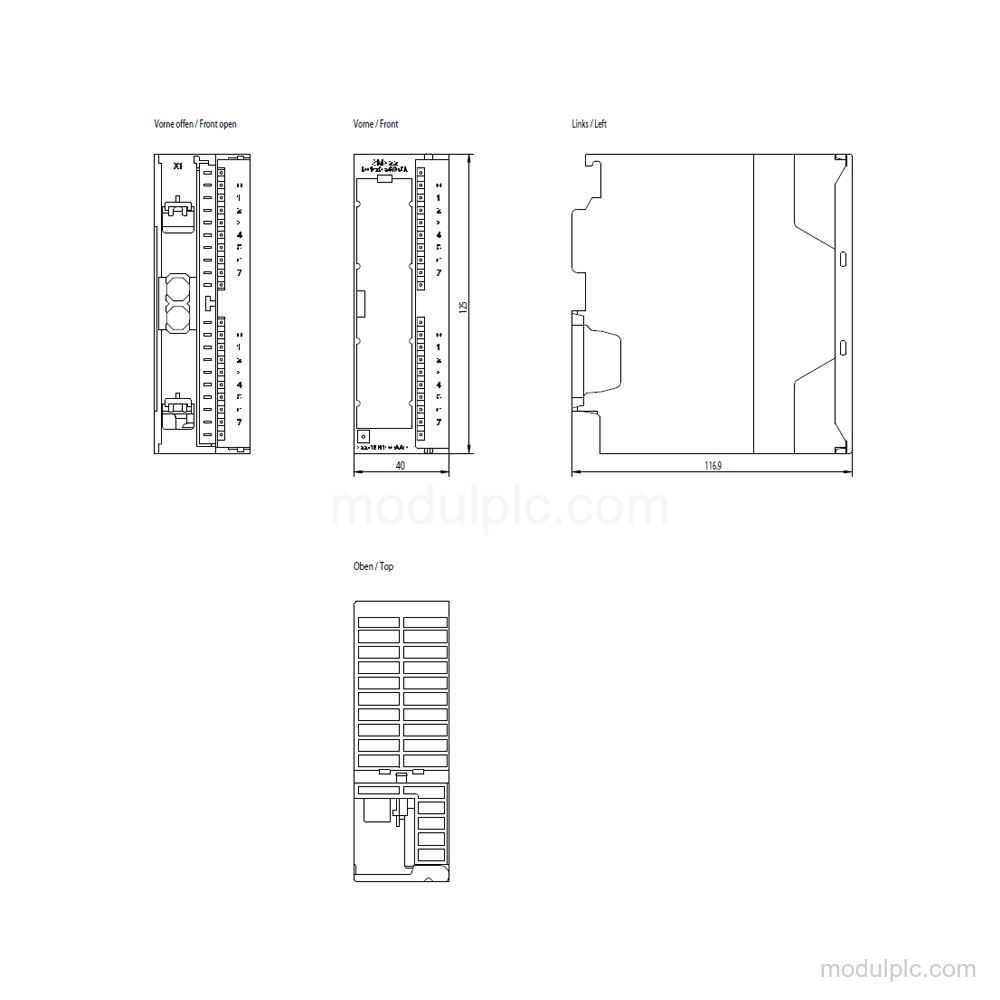

- 20-pin front connector: A 20-pin front connector is required. Module dimensions are 40 mm wide, 125 mm high, and 120 mm deep.
Frequently Asked Questions
1. How many digital outputs does 6ES7322-1BH10-0AA0 have?
It has 16 digital outputs.
2. What load voltage does 6ES7322-1BH10-0AA0 use?
The rated load voltage is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
3. What output current is available for signal "1"?
The rated output current is 0.5 A. The permissible range is 5 mA to 0.6 A for 0 to 40 °C and 40 to 60 °C.
4. Which front connector is required?
A 20-pin front connector is required.
