Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output channels | 8 |
| Rated load voltage | 24 V |
| Permissible load-voltage range | 20.4 V to 28.8 V |
| Rated output current for signal "1" | 2 A |
| Output current range for signal "1", 0 to 40 °C | 5 mA to 2.4 A |
| Short-circuit protection | Yes; Electronic |
| Required front connector | 20-pin |
| Channel and backplane isolation | Yes; Optocoupler |
| Output status indicator | Yes; per channel |
Applications
- Digital output control: The outputs support controlling a digital input.
- Redundant load control: Two outputs can be switched in parallel for redundant control of a load.
Key Features
- 8 isolated digital outputs: The module has 8 digital outputs with potential separation between channels and the backplane bus by optocoupler.
- 24 V DC load voltage: Rated load voltage is 24 V, with a permissible range from 20.4 V to 28.8 V.
- 2 A rated output current: Output current for signal "1" is rated at 2 A; the permissible range is 5 mA to 2.4 A for 0 to 40 °C and 40 to 60 °C.
- Output protection and timing: Short-circuit protection is electronic. With a resistive load, maximum output delay is 100 μs from "0" to "1" and 500 μs from "1" to "0".
- 20-pin front connector: The required front connector is 20-pin.

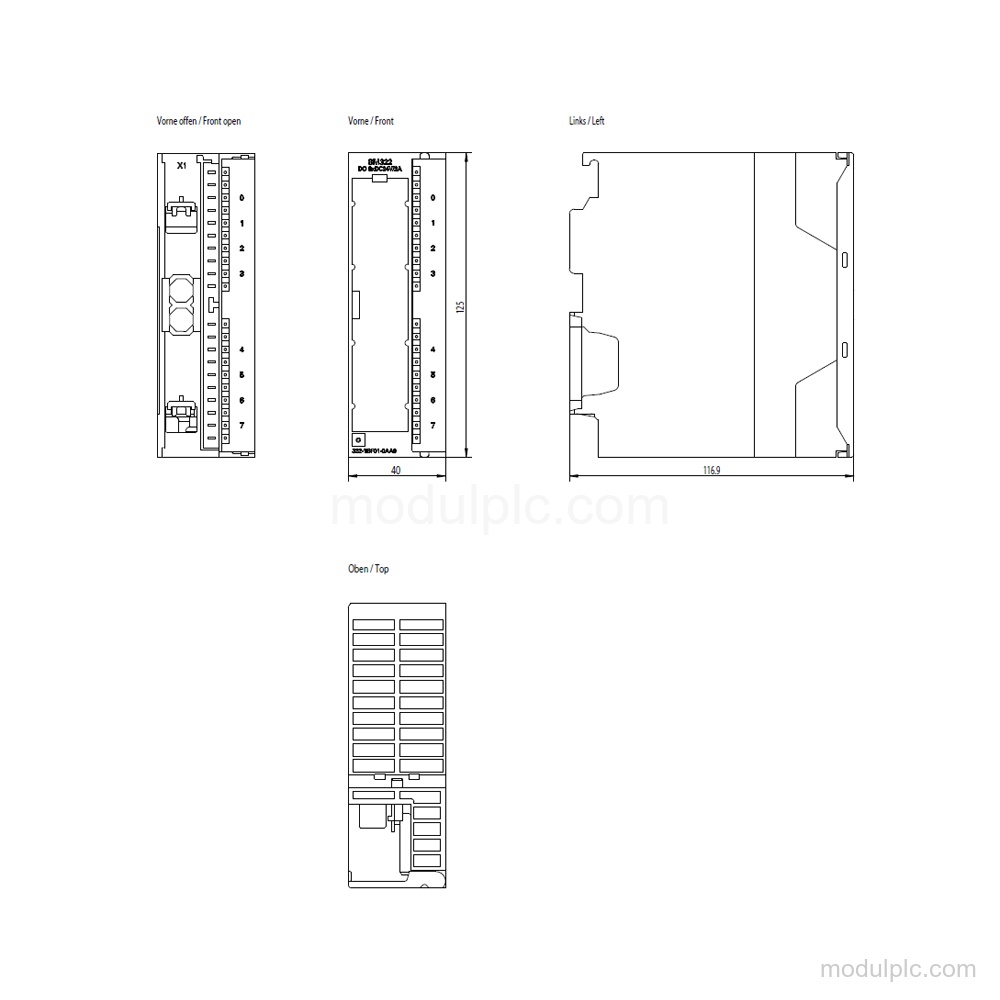

- Module dimensions and weight: Dimensions are 40 mm wide, 125 mm high, and 120 mm deep; weight is approximately 190 g.
Frequently Asked Questions
1. How many digital outputs does the 6ES7322-1BF01-0AA0 have?
It has 8 digital outputs.
2. What load voltage and output current does this module use?
The rated load voltage is 24 V, and the rated output current for signal "1" is 2 A.
3. Which connector is required for the module?
A 20-pin front connector is required.
