Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 317F-2 PN/DP |
| Work memory | 1 536 kbyte |
| Supply voltage, rated DC | 24 V |
| MPI/DP transmission rate, max. | 12 Mbit/s |
| PROFINET ports | 2; integrated switch |
| PROFINET IO Controller | Yes; transmission rate up to 100 Mbit/s |
| Load memory | Plug-in MMC; max. 8 Mbyte |
Applications
- PROFINET and PROFIBUS communication: Supports data communication through PROFINET IO Controller, PROFINET IO device, PROFIBUS DP master and PROFIBUS DP device functions.
Key Features

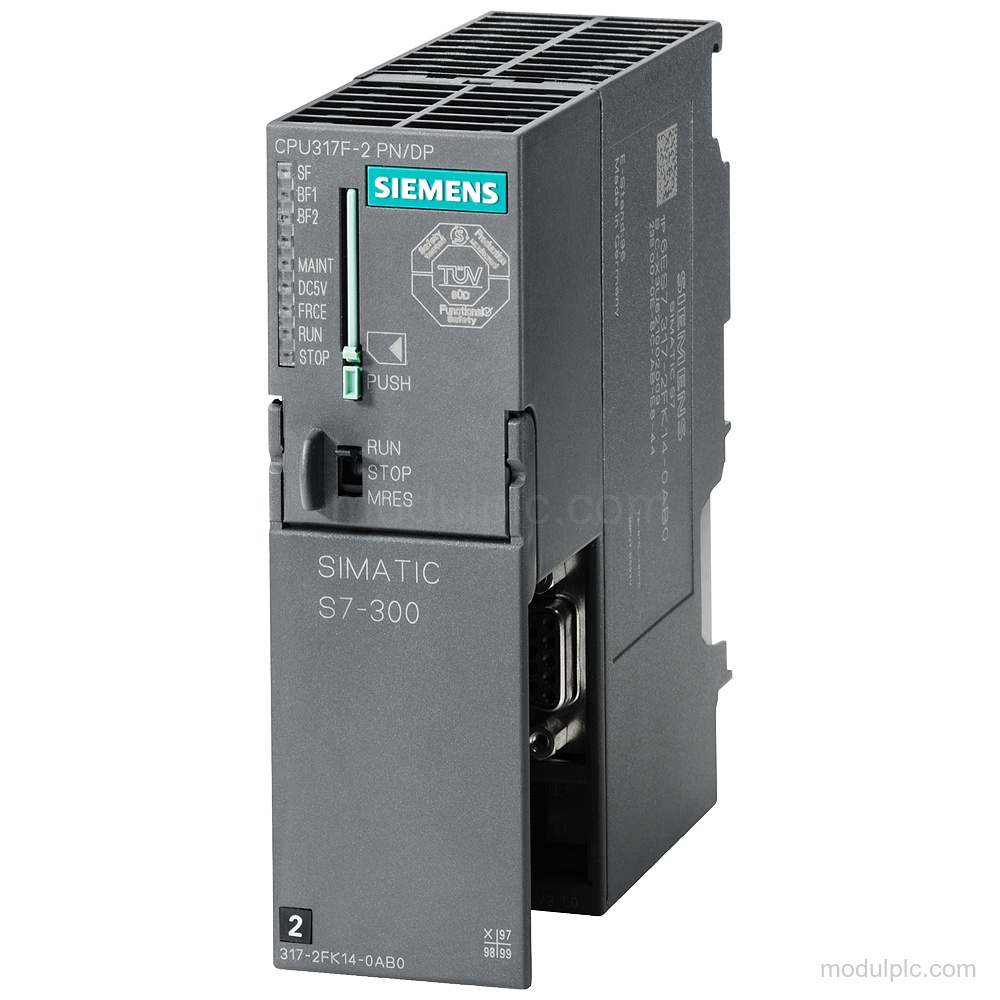

- Central processing unit: SIMATIC S7-300 CPU317F-2 PN/DP with 1.5 MB work memory and 24 V rated DC supply.
- MPI/DP interface: The 1st interface supports MPI/DP communication at up to 12 Mbps.
- Ethernet PROFINET interface: The 2nd interface is Ethernet PROFINET with an integrated 2-port switch and RJ 45 ports.
- Communication protocols: Supports PROFINET IO Controller, PROFINET IO device, PROFINET CBA, PROFIBUS DP master and PROFIBUS DP device.
- Memory and backup: A Micro Memory Card is required; plug-in load memory supports up to 8 Mbyte, and backup is maintenance-free through the MMC.

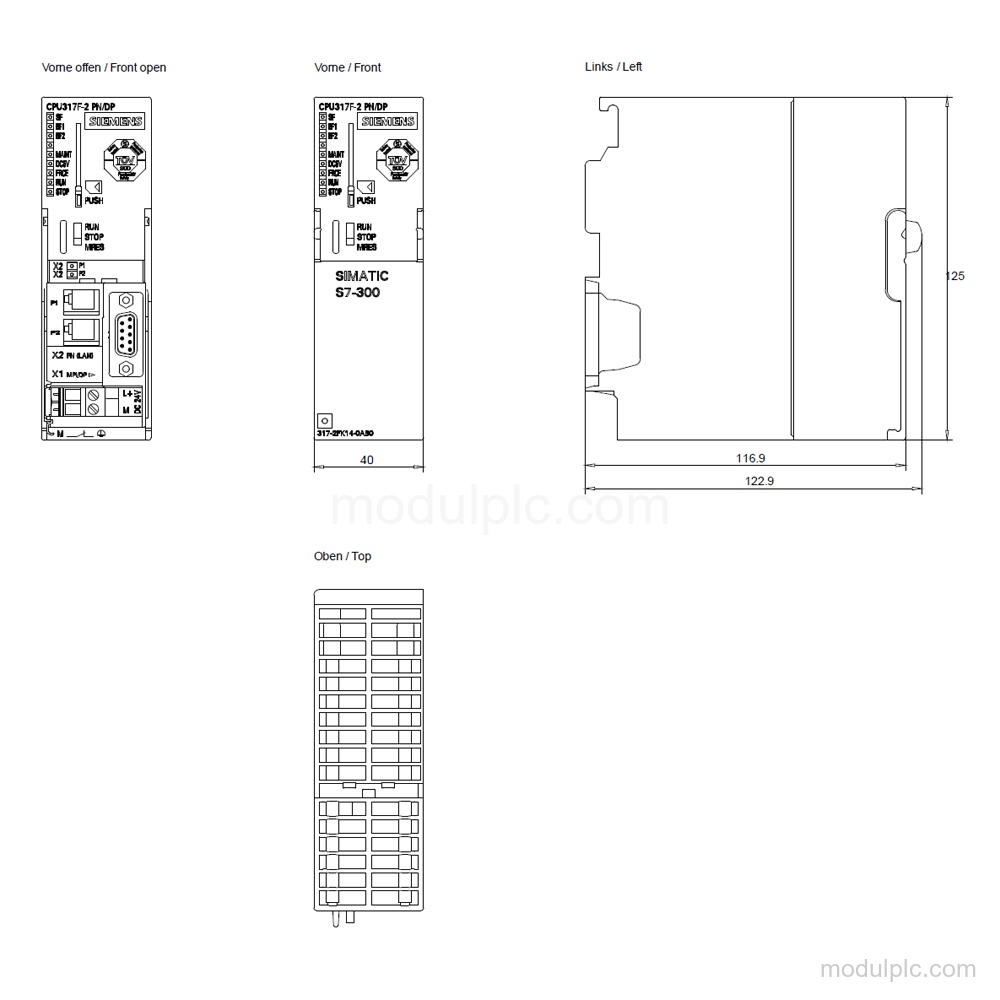

- Dimensions and weight: Dimensions are 40 mm wide, 125 mm high and 130 mm deep; weight is approximately 340 g.
Frequently Asked Questions
1. What is the function of Siemens 6ES7317-2FK14-0AB0?
It is a SIMATIC S7-300 CPU317F-2 PN/DP central processing unit with 1.5 MB work memory.
2. Which interfaces does this CPU have?
It has a 1st MPI/DP interface with transmission rates up to 12 Mbps and a 2nd Ethernet PROFINET interface with an integrated 2-port switch.
3. What memory is required for this module?
A Micro Memory Card is required. Plug-in MMC load memory supports up to 8 Mbyte.
4. What supply voltage does it use?
The rated DC supply voltage is 24 V, with a permissible range from 20.4 V to 28.8 V.
5. What are its mounting dimensions?
The dimensions are 40 mm wide, 125 mm high and 130 mm deep, with an approximate weight of 340 g.
