Product Overview
Technical Summary
| Parameter | Value |
|---|---|

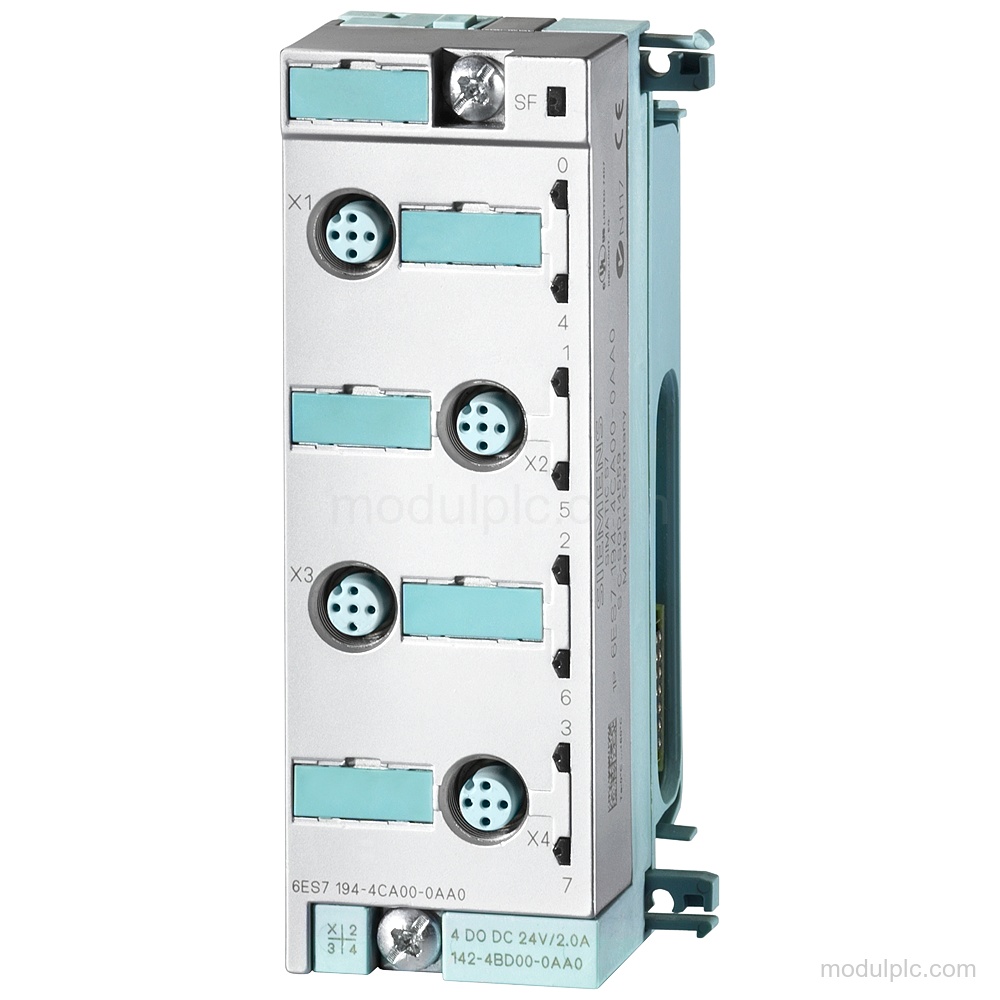

| Module type | SIMATIC DP connection module for digital ET 200 PRO electronic modules |
| M12 connections | 4x M12 |

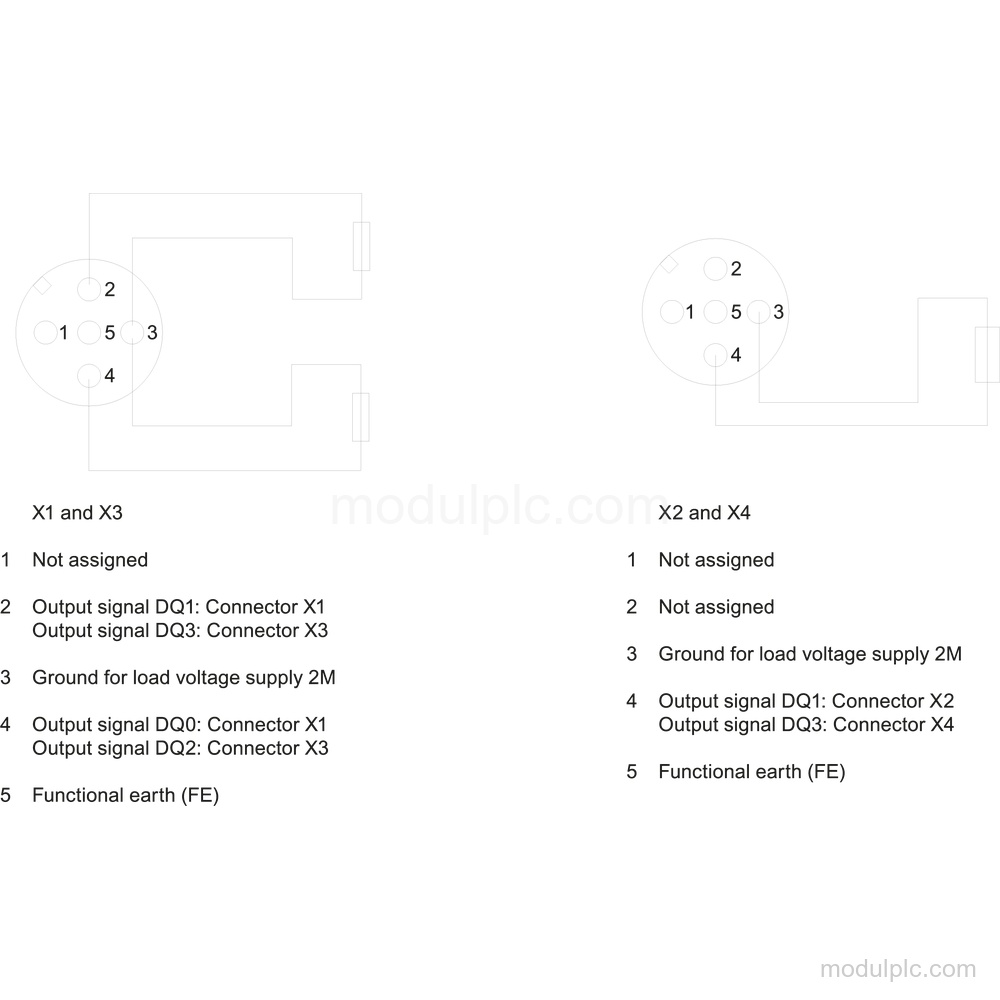

| M12 assignment | 2x M12 single assignment; 2x M12 dual assignment |
| Function | CM IO 4x M12 inverse |
| Product lifecycle | Active Product |
Applications
- Digital module connection: Connects digital ET 200 PRO electronic modules through 4x M12 connections.
Key Features
- Connection module: SIMATIC DP connection module for digital ET 200 PRO electronic modules.
- M12 connections: 4x M12 with 2x M12 single assignment and 2x M12 dual assignment.
- Function: CM IO 4x M12 inverse.

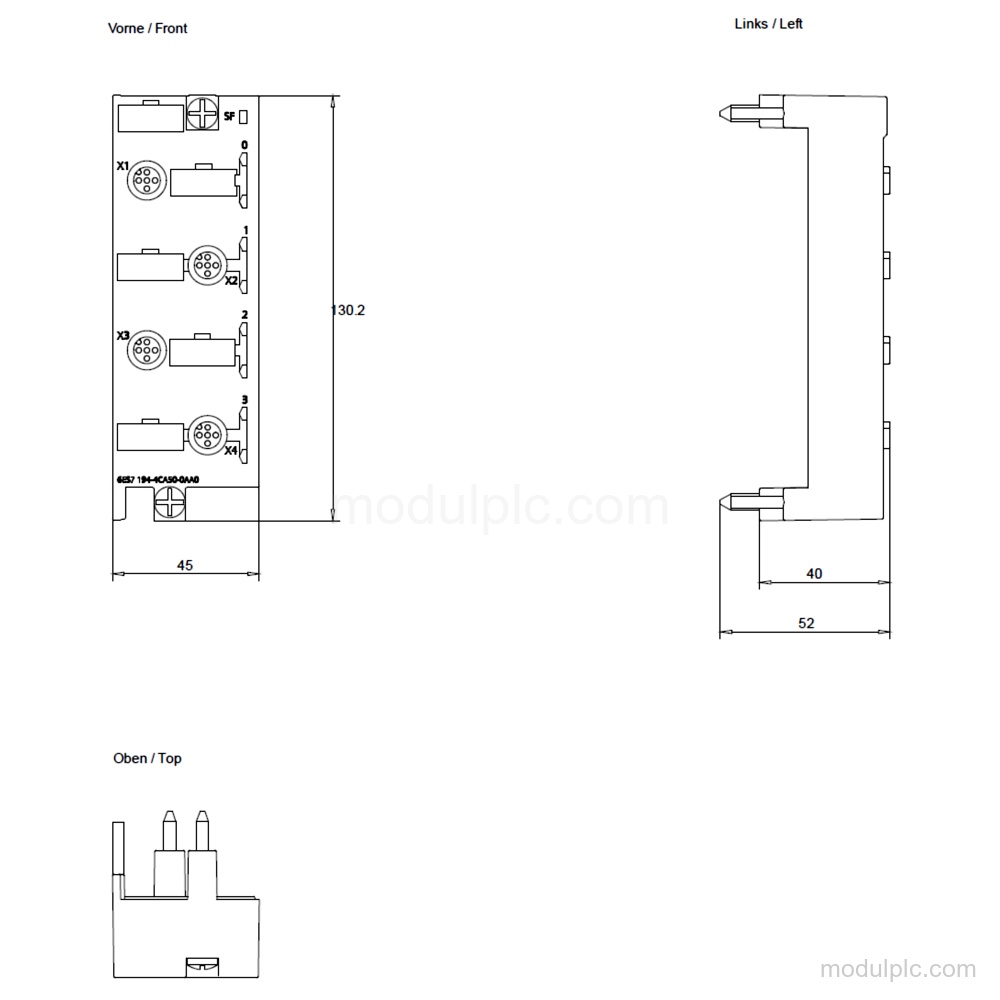

- Dimensions: Width: 45 mm; height: 130 mm; depth: 39 mm.
- Weight: Weight, approx.: 300 g.
- Product lifecycle: Active Product.
Frequently Asked Questions
1. What is the function of 6ES7194-4CA50-0AA0?
It is a SIMATIC DP connection module for digital ET 200 PRO electronic modules.
2. How are the M12 connections assigned?
The module has 4x M12 with 2x M12 single assignment and 2x M12 dual assignment.
3. What dimensions should be verified before inquiry?
Width is 45 mm, height is 130 mm, and depth is 39 mm.
