Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP connection module |
| Interface module | ET 200 PRO IM154-3 PN HF |
| Connections | 2x M12 and 2x 7/8" |
| Infeed current from 1L+ | Maximum 8 A; no current input, only infeed current |
| Infeed current from 2L+ | Maximum 8 A without load; no current input, only infeed current |
| Internal transfer 2L+ | Maximum 8 A |
| Internal transfer 1L+ | Maximum 5 A |
Key Features
- Connection module: Connection module for the ET 200 PRO IM154-3 PN HF PROFINET interface module.

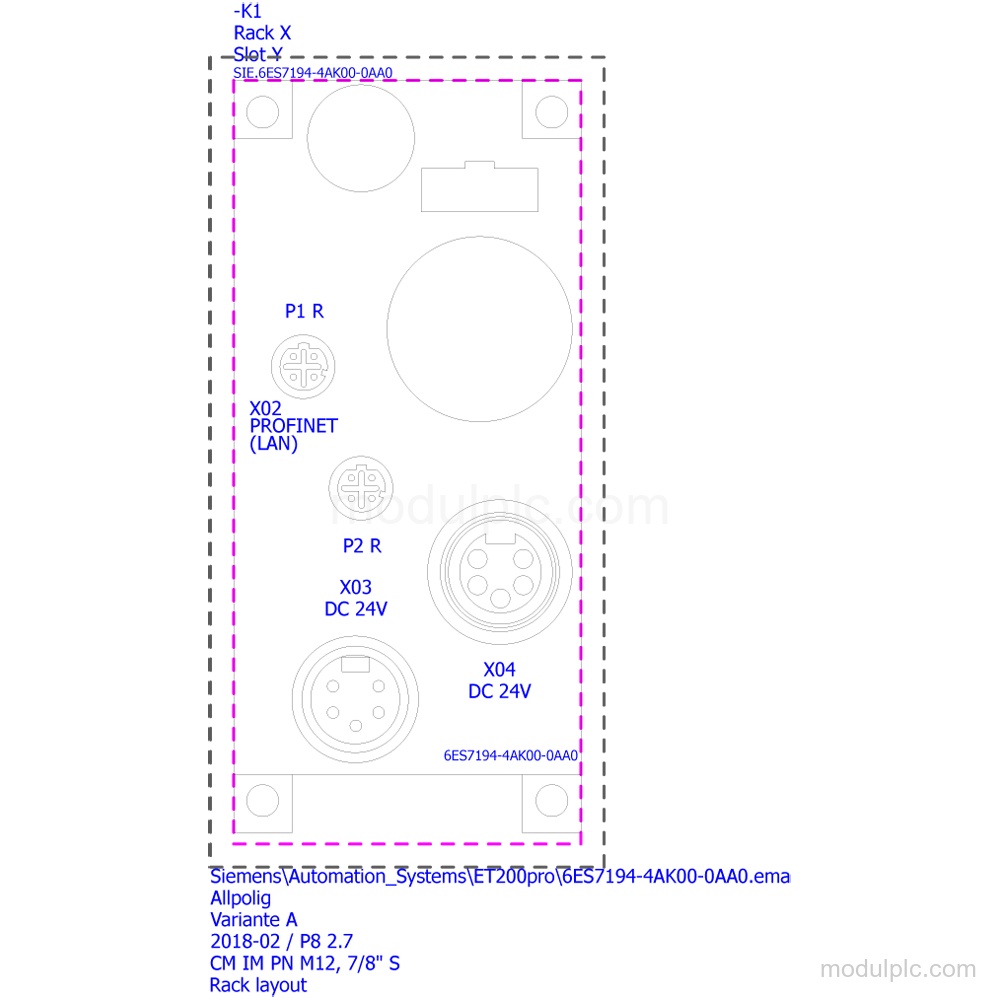

- Connections: 2x M12 and 2x 7/8" connections.
- Supply current from 1L+: Maximum 8 A infeed current from supply voltage 1L+; there is no current input.
- Supply current from 2L+: Maximum 8 A infeed current from load voltage 2L+ without load; there is no current input.
- Internal transfer: Internal transfer is maximum 2L+ 8 A and 1L+ 5 A.

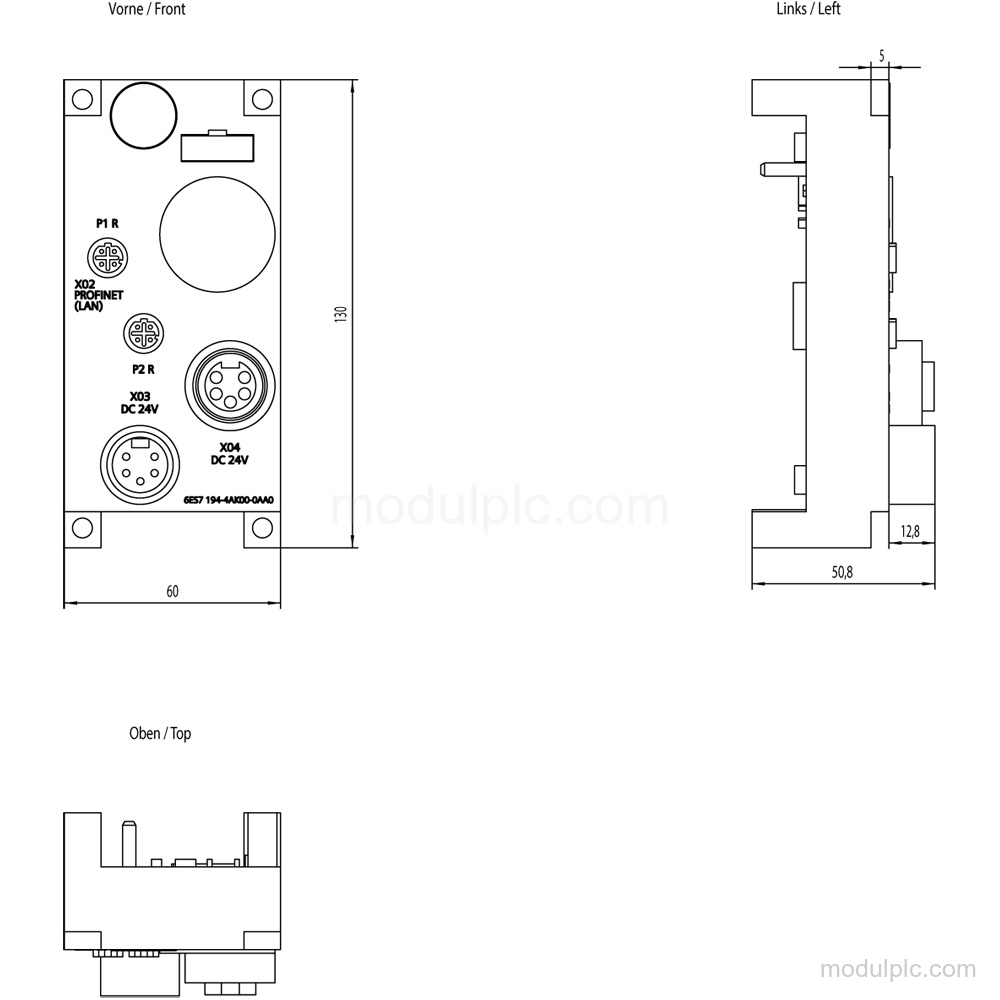

- Dimensions and weight: Dimensions are 60 mm wide, 130 mm high, and 51 mm deep; weight is approximately 440 g.
Frequently Asked Questions
1. What is the function of 6ES7194-4AK00-0AA0?
It is a SIMATIC DP connection module for the ET 200 PRO IM154-3 PN HF PROFINET interface module.
2. Which connections does the module have?
It has 2x M12 and 2x 7/8" connections.
3. What are the maximum infeed currents?
The maximum infeed current is 8 A from 1L+ and 8 A from 2L+ without load. There is no current input; these are infeed currents only.
4. What are the module dimensions and weight?
The module is 60 mm wide, 130 mm high, and 51 mm deep, with an approximate weight of 440 g.
