Product Overview
Technical Summary
| Parameter | Value |
|---|---|

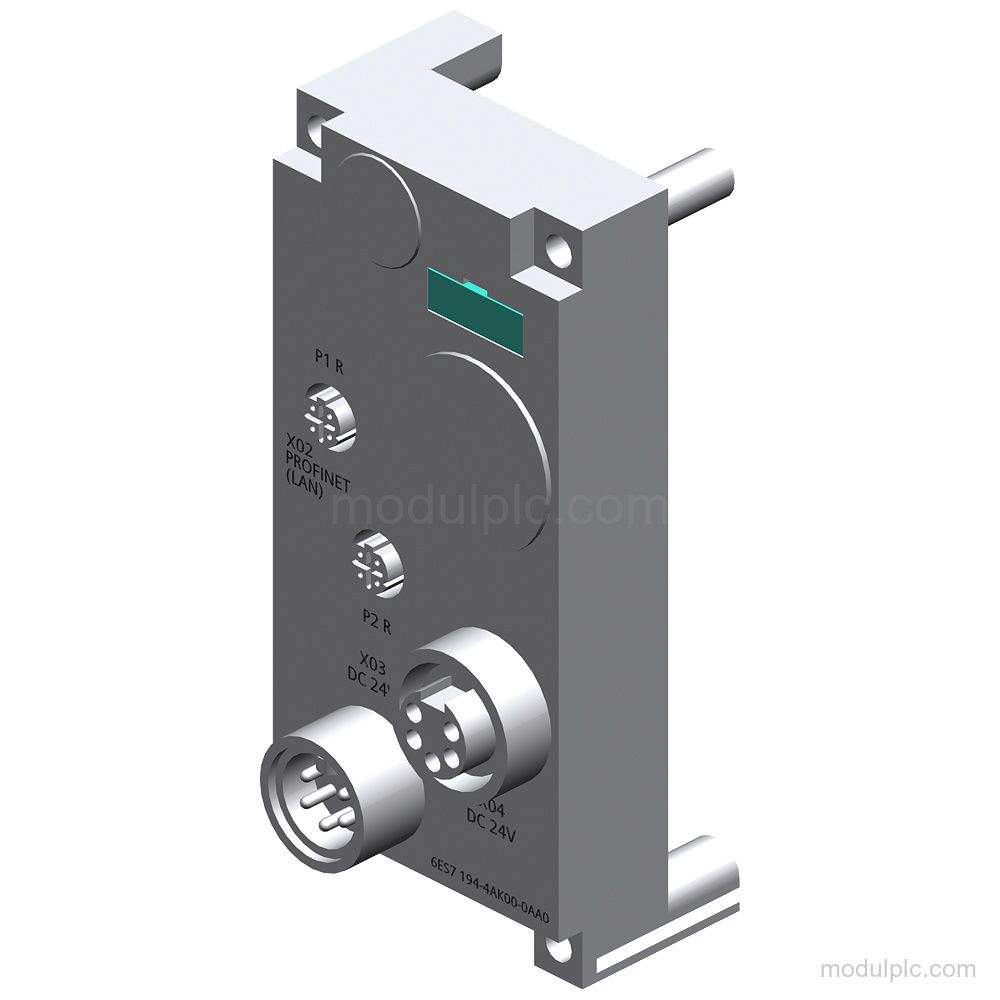

| Module type | Connection module for PROFINET interface module |

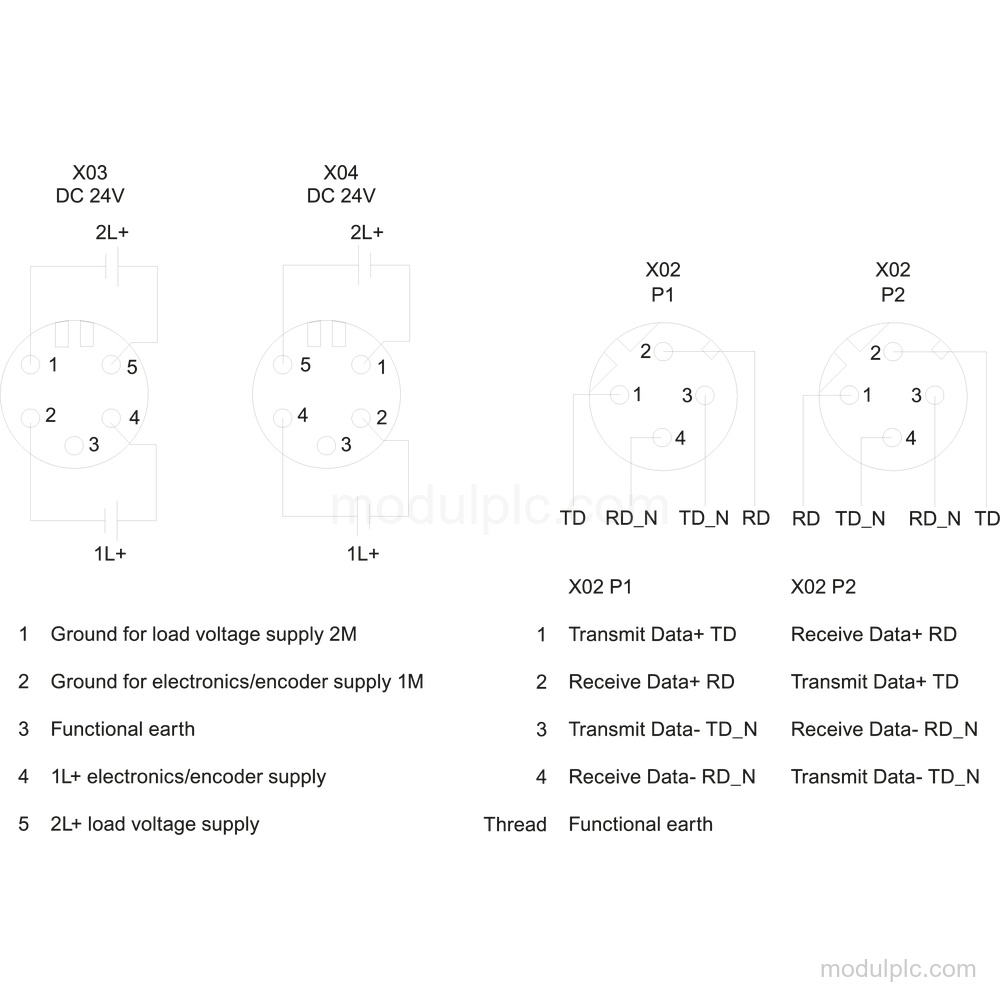

| Interfaces | 2x M12 and 2x 7/8" |
| Maximum infeed current from 1L+ | 8 A |
| Maximum infeed current from 2L+ | 8 A |
| Internal transfer, 2L+ | max. 8 A |
| Internal transfer, 1L+ | max. 5 A |
Applications
- PROFINET interface connection: Provides the connection module for a PROFINET interface module in ET 200 PRO.
- Power supply and transfer: Provides power supply from 1L+ and 2L+ and internal transfer of 1L+ and 2L+.
Key Features
- PROFINET connection module: Connection module for a PROFINET interface module in ET 200 PRO; belongs to M154-4PN High Feature.
- M12 and 7/8" interfaces: The module has 2x M12 and 2x 7/8" interfaces.
- Supply current: Power supply from 1L+ and 2L+; maximum infeed current is 8 A per supply.
- Internal power transfer: Internal transfer: 2L+ max. 8 A and 1L+ max. 5 A.

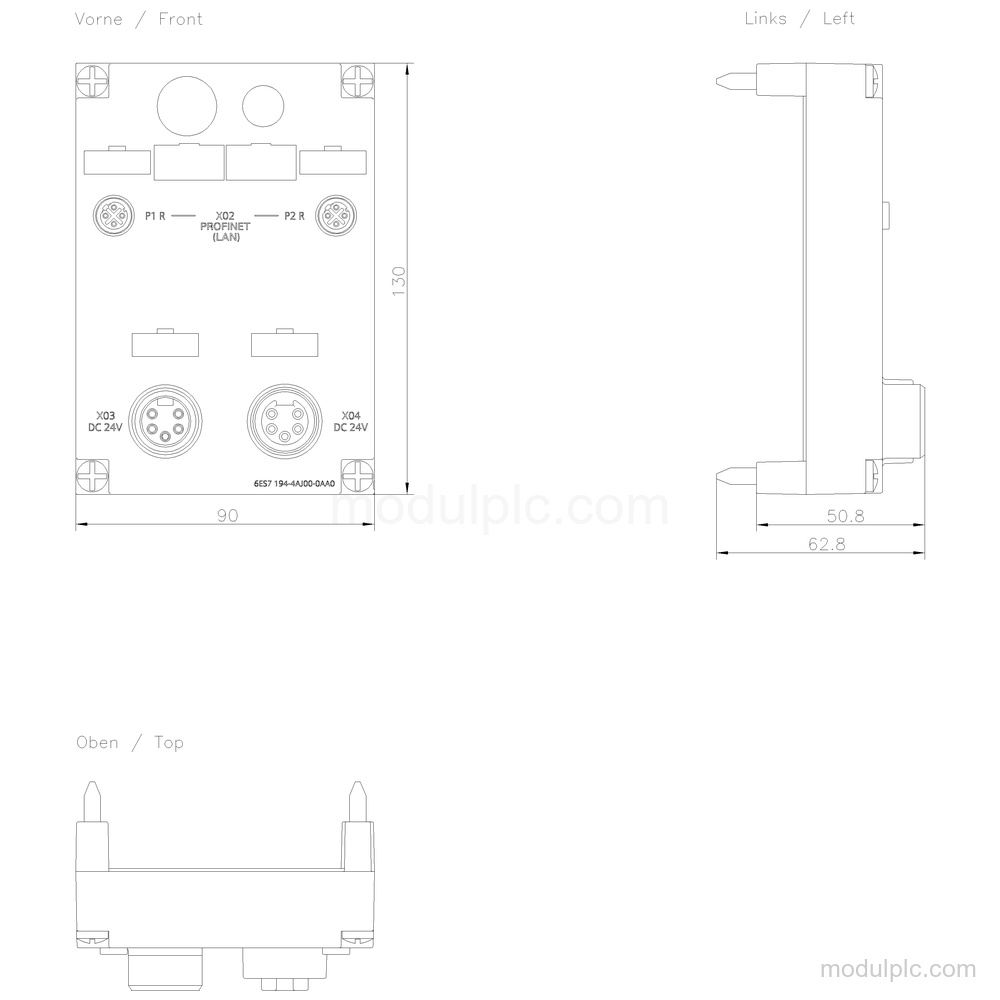

- Module dimensions: Width: 90 mm; height: 130 mm; depth: 51 mm.
- Product lifecycle: Active Product.
Frequently Asked Questions
1. What is Siemens 6ES7194-4AJ00-0AA0?
It is a connection module for a PROFINET interface module in ET 200 PRO.
2. Which interfaces does the 6ES7194-4AJ00-0AA0 have?
It has 2x M12 and 2x 7/8" interfaces.
3. What is the maximum infeed current?
The maximum infeed current is 8 A from 1L+ and 8 A from 2L+.
