Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | PROFINET connection module |
| PROFINET interfaces | 2x SCRJ FO |
| Connectors | 2x push-pull plug-in connectors |
| Maximum infeed current from 1L+ | 16 A with derating |
| Maximum infeed current from 2L+ without load | 16 A with derating |
Key Features
- PROFINET connection module: Connection module for the PROFINET interface module in ET 200 PRO.
- Optical-fiber interfaces: Has 2x SCRJ FO interfaces.
- Push-pull connectors: Uses 2x push-pull plug-in connectors for PROFINET.
- Input current from 1L+: Maximum infeed current is 16 A with derating; there is no current consumption, only infeed current.
- Input current from 2L+: Maximum infeed current is 16 A without load and with derating; there is no current consumption, only infeed current.

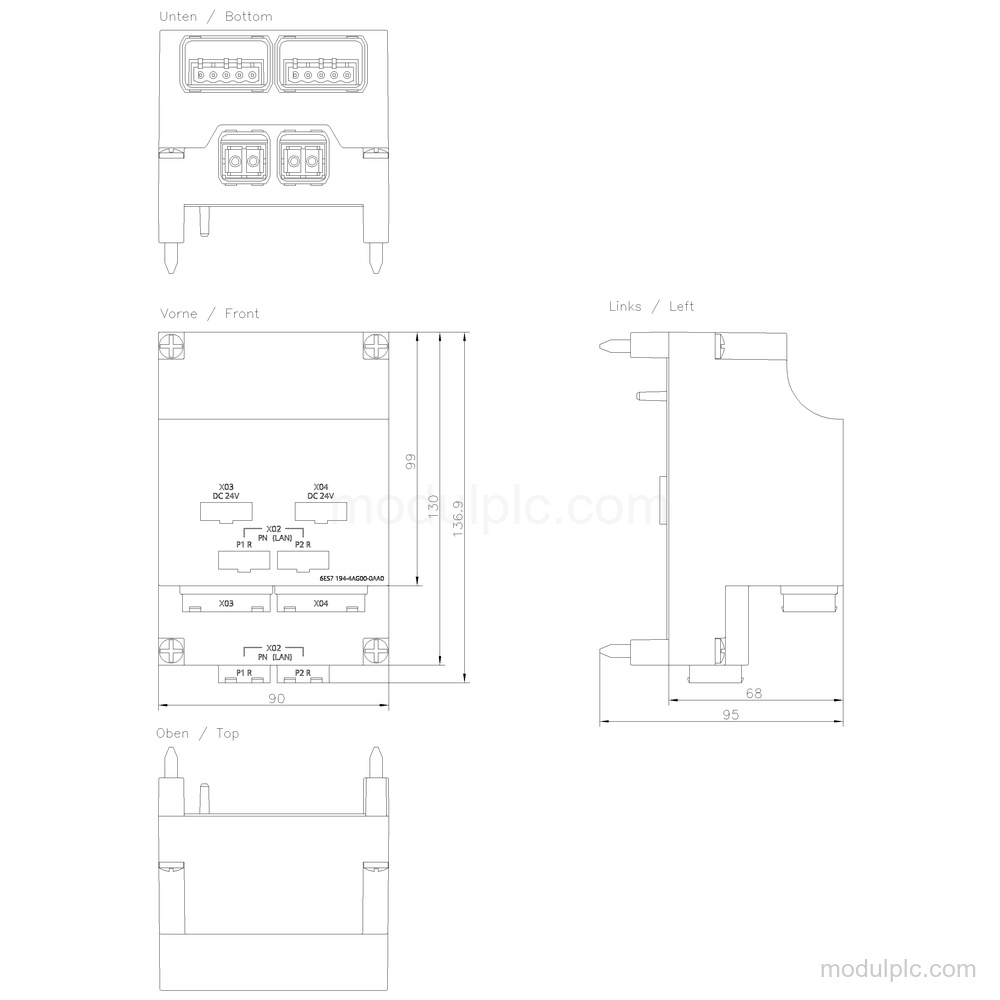

- Dimensions and weight: Dimensions are 90 mm wide, 130 mm high, and 51 mm deep; approximate weight is 325 g.
Frequently Asked Questions
1. What type of module is Siemens 6ES7194-4AG00-0AA0?
It is a connection module for the PROFINET interface module in ET 200 PRO.
2. Which interfaces and connectors does it have?
It has 2x SCRJ FO interfaces and 2x push-pull plug-in connectors for PROFINET.
3. What is the maximum infeed current from 1L+?
The maximum infeed current is 16 A with derating. There is no current consumption, only infeed current.
4. What are its dimensions and weight?
The dimensions are 90 mm wide, 130 mm high, and 51 mm deep. Approximate weight is 325 g.
