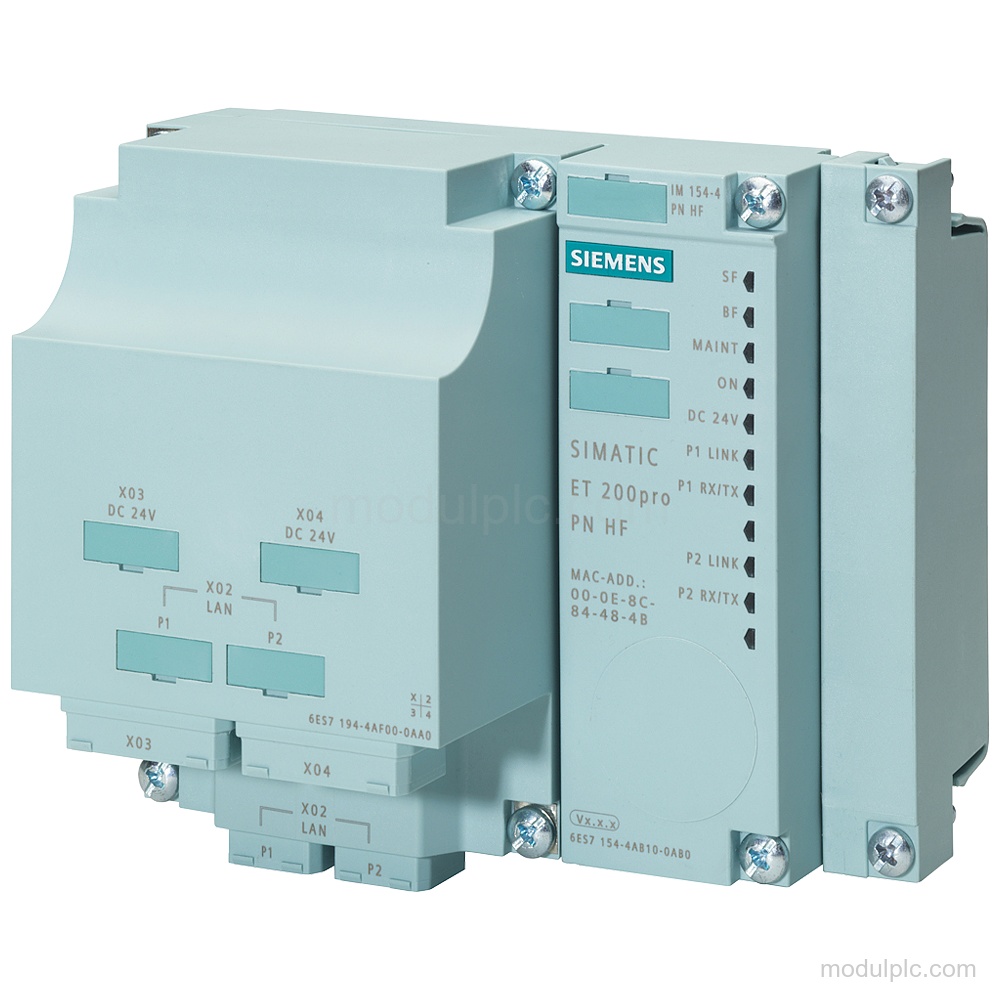

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | Connection module for ET 200 PRO PROFINET interface module |
| PROFINET connection | 2x RJ45 |
| Plug-in connectors | 2x PushPull for PROFINET PN |
| Associated product | IM154-4 PN HF |
| Maximum infeed current from 1L+ | 16 A with derating; no current consumption, only infeed current |
| Maximum infeed current from 2L+ without load | 16 A with derating; no current consumption, only infeed current |
Applications

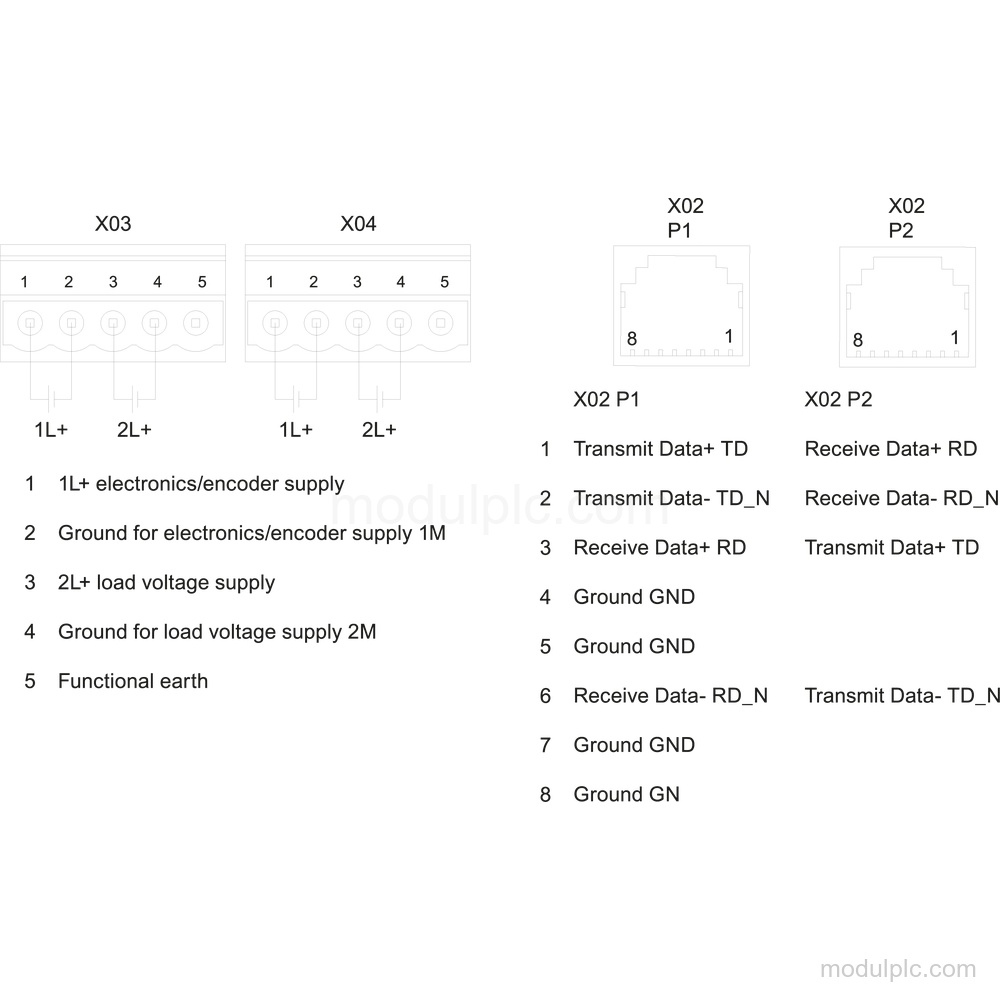

- PROFINET interface connection: Connects the ET 200 PRO PROFINET interface module using 2x RJ45 connections and 2x PushPull plug-in connectors for PROFINET PN.
Key Features
- Connection module: Connection module for the ET 200 PRO PROFINET interface module.
- PROFINET connections: Has 2x RJ45 connections for PROFINET PN.
- PushPull connectors: Includes 2x PushPull plug-in connectors for PROFINET PN.
- Associated interface module: Belongs to the IM154-4 PN HF product.
- Input current from 1L+: Maximum infeed current is 16 A with derating; there is no current consumption, only infeed current.
- Product dimensions and weight: Dimensions are 90 mm wide, 130 mm high, and 51 mm deep; weight is approximately 325 g.
Frequently Asked Questions
1. What is the function of Siemens 6ES7194-4AF00-0AA0?
It is a connection module for the ET 200 PRO PROFINET interface module.
2. Which PROFINET connections does it have?
It has 2x RJ45 connections and 2x PushPull plug-in connectors for PROFINET PN.
3. Which product does this connection module belong to?
It belongs to the IM154-4 PN HF product.
4. What are its dimensions and weight?
Its dimensions are 90 mm wide, 130 mm high, and 51 mm deep. Weight is approximately 325 g.
