Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP connection block |
| System context | ET 200ECO |
| Connections | 2x M12 and 2x 7/8" |
| Address setting | 2 rotary coding switches for PROFIBUS DP |
| Power loss, typ. | 2 W; depends on the current looped through the connection block |
| Lifecycle | Product cancellation |
Applications
- PROFIBUS DP address setting: Sets the PROFIBUS DP address using 2 rotary coding switches.
Key Features

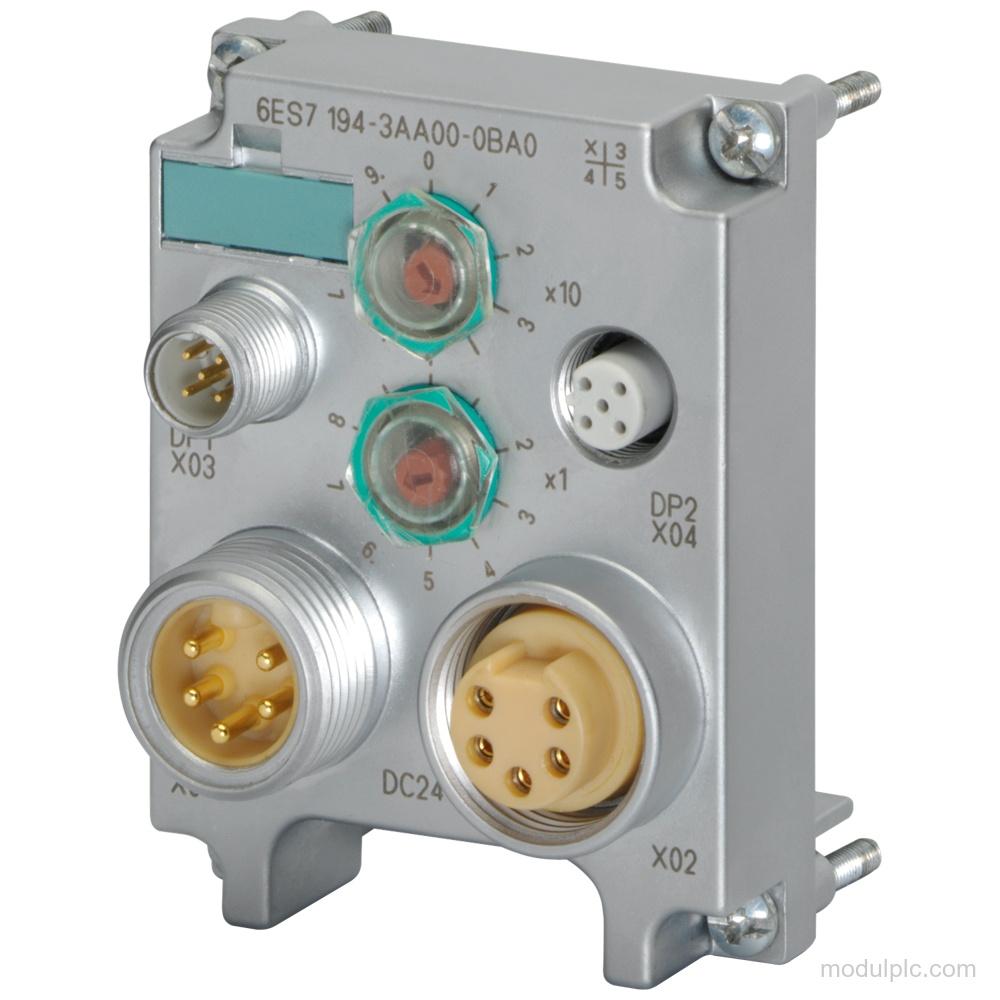

- SIMATIC DP connection block: Connection block for ET 200ECO.
- M12 and 7/8" connections: Has 2x M12 and 2x 7/8".
- PROFIBUS DP address setting: Has 2 rotary coding switches for PROFIBUS DP address setting.
- Typical power loss: Typical power loss is 2 W; it depends on the current looped through the connection block.

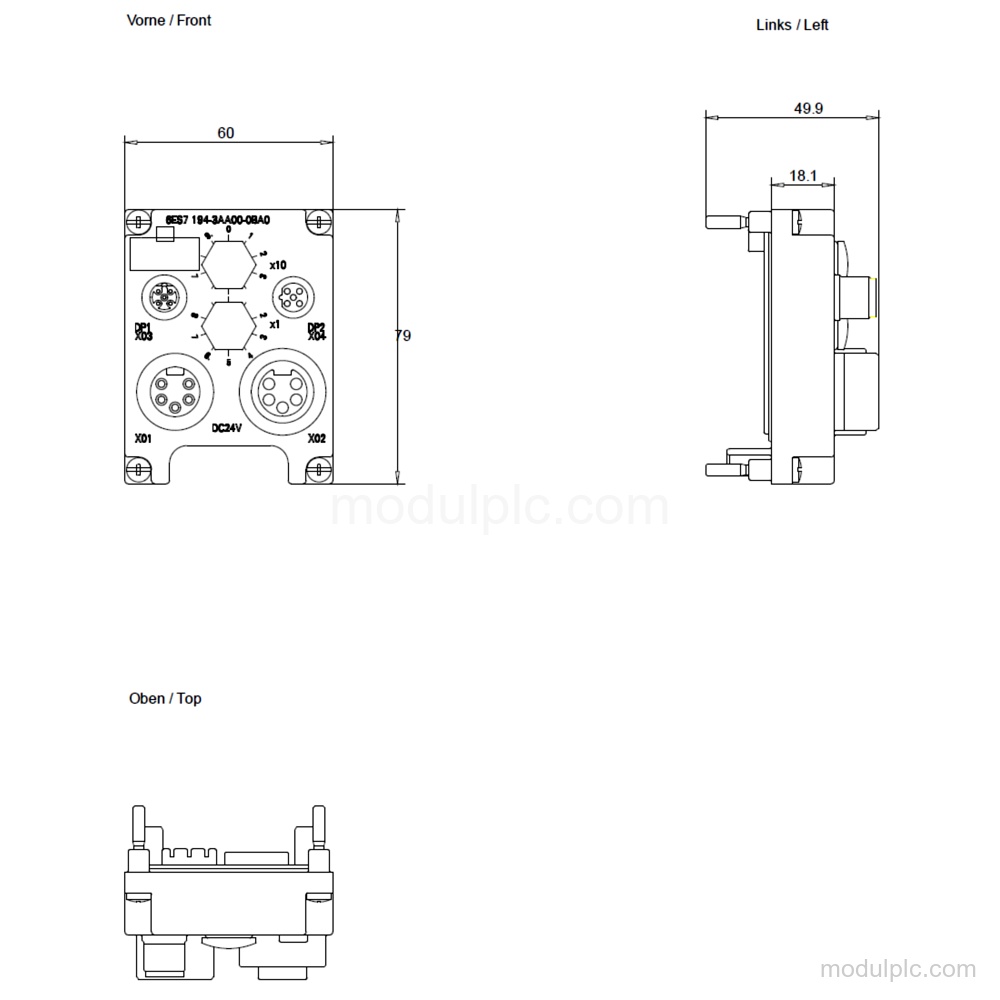

- Product dimensions: Width: 79 mm; height: 60 mm; depth: 29 mm.
- Product cancellation: Product cancellation.
Frequently Asked Questions
1. What connections does Siemens 6ES7194-3AA00-0BA0 have?
It has 2x M12 and 2x 7/8".
2. How is the PROFIBUS DP address set?
The connection block has 2 rotary coding switches for PROFIBUS DP address setting.
3. What is the typical power loss?
Typical power loss is 2 W and depends on the current looped through the connection block.
4. What are the product dimensions and approximate weight?
Width is 79 mm, height is 60 mm, depth is 29 mm, and approximate weight is 392 g.
