Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | TM-P30C44-A0 terminal module |
| System context | ET200S |
| Power module | PM-E F PROFIsafe |
| Terminal connections | Spring-type terminals, 2×3+2×4 |
| AUX1 | Terminal access; AUX1 interrupted |
| Delivery quantity | 1 piece |
Applications
- Power-module terminal connection: Provides terminal connections for the PM-E F PROFIsafe power module in the ET200S context.
Key Features
- Terminal module identity: TM-P30C44-A0 terminal module for ET200S and the PM-E F PROFIsafe power module.
- Overall width: 30 mm overall width.
- Terminal connections: Spring-type terminals with 2×3+2×4 terminal connections.
- AUX1 access: Terminal access to AUX1; AUX1 is interrupted.

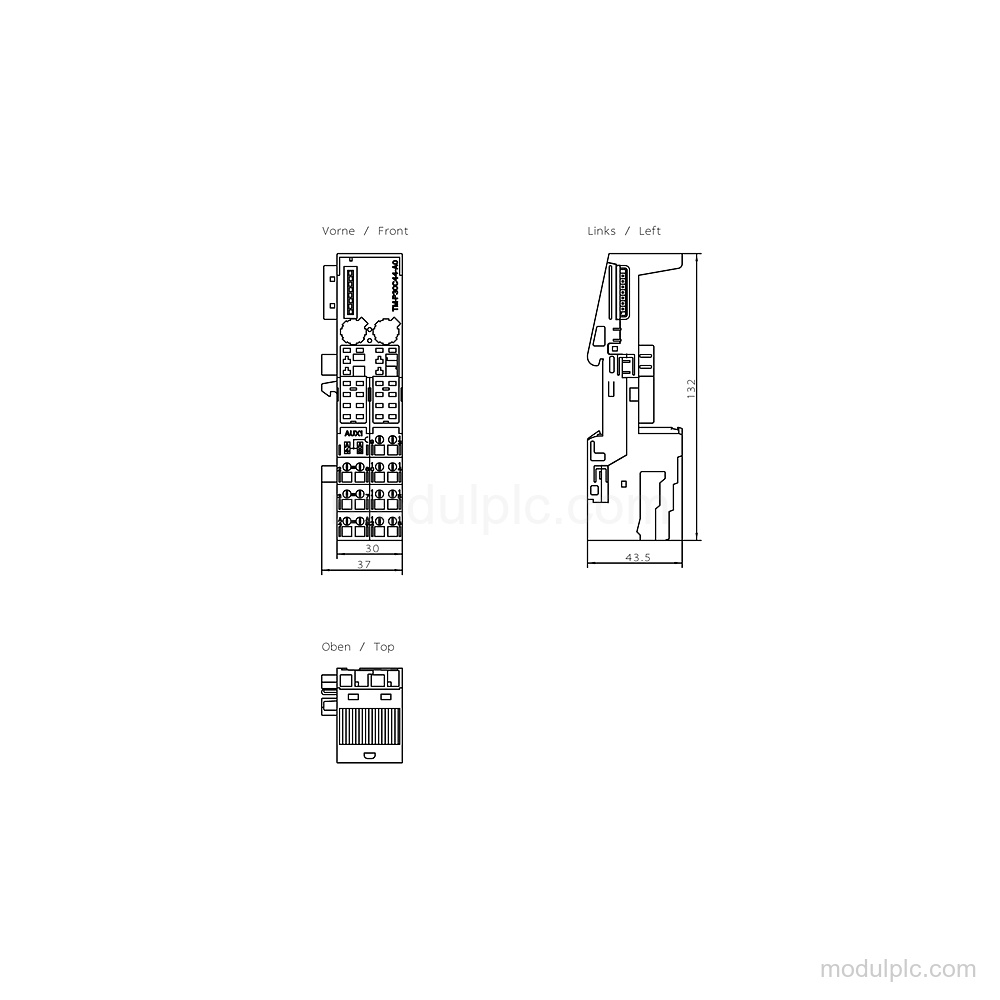

- Dimensions: Height: 132 mm. Depth: 43 mm.
- Lifecycle: Product cancellation.
Frequently Asked Questions
1. What is Siemens SIMATIC 6ES7193-4CK30-0AA0?
It is a TM-P30C44-A0 terminal module for ET200S and the PM-E F PROFIsafe power module.
2. What terminal connections does it have?
It has spring-type terminals with 2×3+2×4 terminal connections.
3. What are its dimensions?
The module is 30 mm wide, 132 mm high, and 43 mm deep.
4. What AUX1 access is provided?
It has terminal access to AUX1, with AUX1 interrupted.
