Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | TM-P15C23-A1 terminal module |
| Intended module | For power modules |
| Terminal type | Spring-type terminals (Cage Clamp) |
| Terminal connections | 2×3 terminal connections |
| Terminal access | AUX1, AUX1 continuous |
Applications
- Power-module terminal connection: Provides terminal connections for power modules, including terminal access to AUX1, AUX1 continuous.
Key Features
- Terminal module: TM-P15C23-A1 terminal module for power modules in SIMATIC DP.
- Spring-type terminals: Spring-type terminals (Cage Clamp) with 2×3 terminal connections.
- AUX1 access: Terminal access to AUX1, AUX1 continuous.

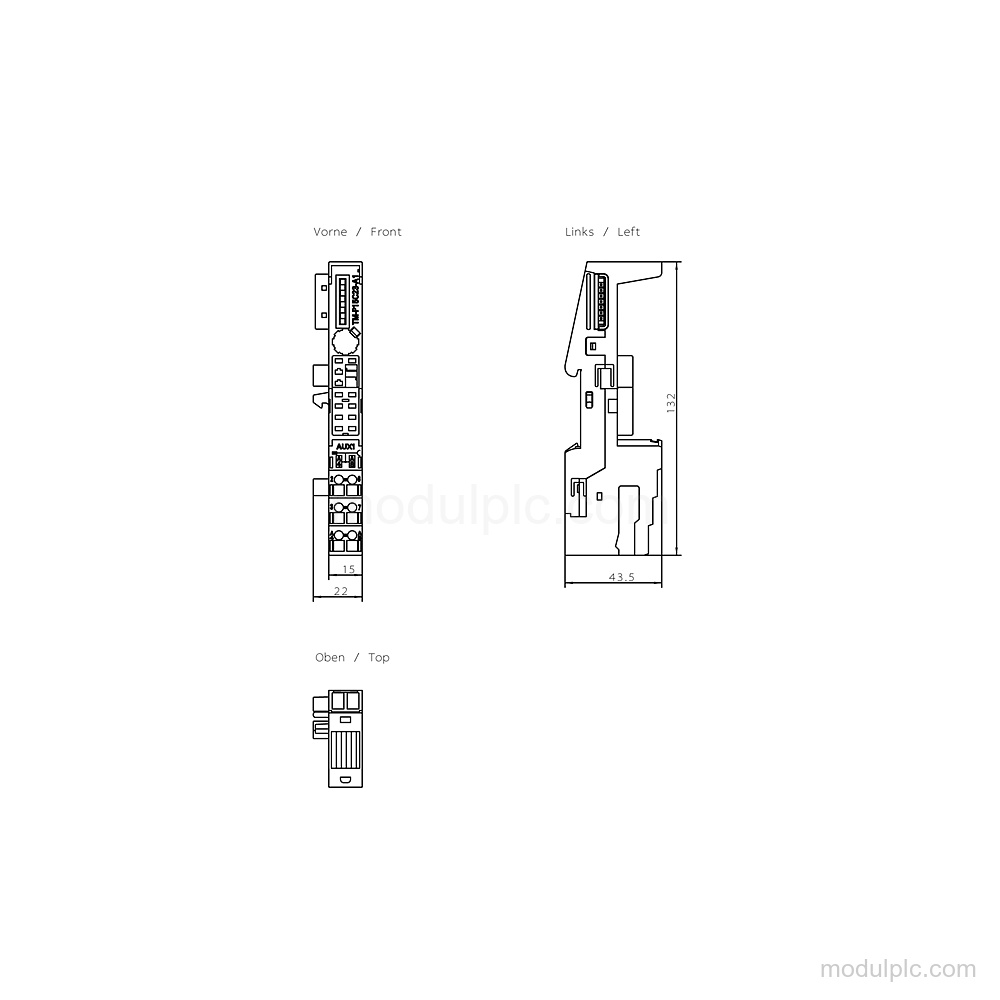

- Dimensions: Width: 15 mm; height: 132 mm; depth: 43 mm.
- Hazardous-location use: The source identifies use in hazardous locations and a maritime application.
- Lifecycle: Product cancellation.
Frequently Asked Questions
1. What is the function of 6ES7193-4CC30-0AA0?
It is a SIMATIC DP TM-P15C23-A1 terminal module for power modules.
2. What terminal connections does it have?
It has spring-type terminals (Cage Clamp) with 2×3 terminal connections.
3. Does the module provide AUX1 access?
Yes. It has terminal access to AUX1, AUX1 continuous.
4. What are its dimensions?
Width is 15 mm, height is 132 mm, and depth is 43 mm.
