Product Overview
Technical Summary
| Parameter | Value |
|---|---|

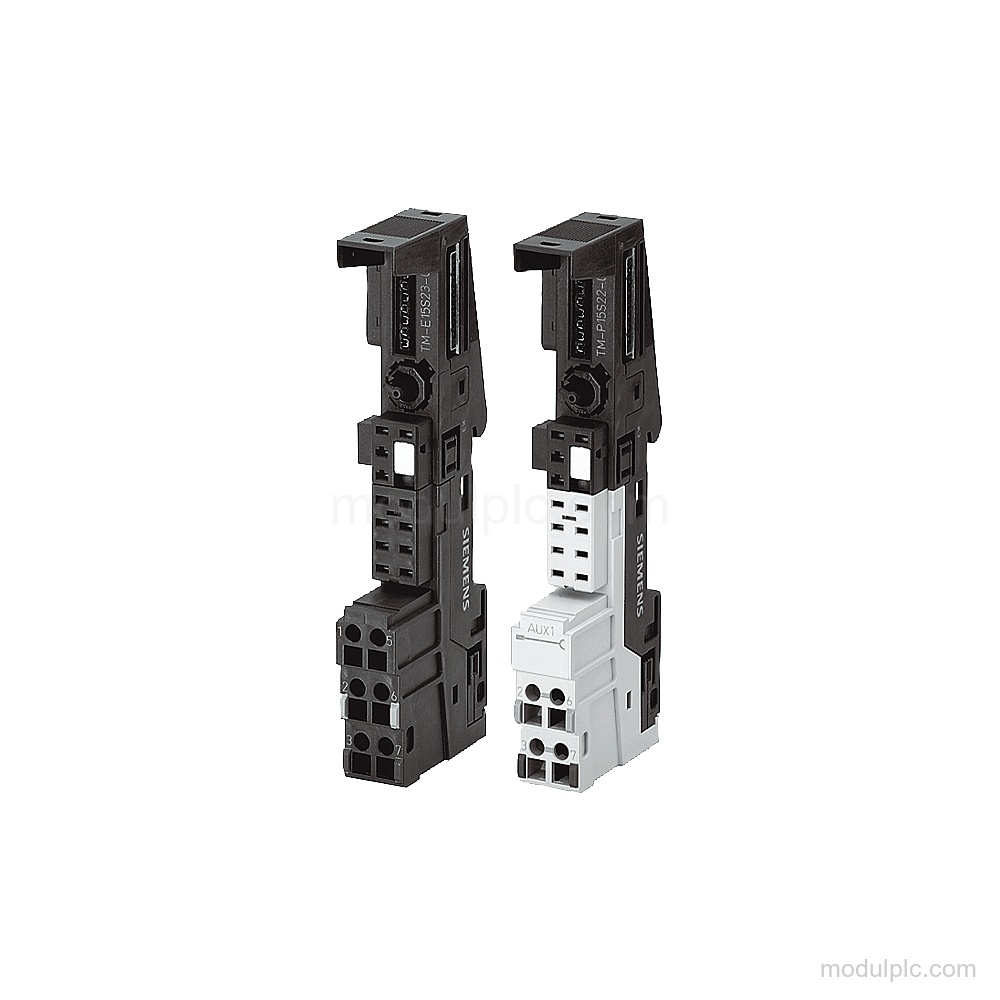

| Module type | TM-E15C23-01 terminal module |
| System context | ET 200S electronic modules |
| Delivery quantity | 5 pieces |
| Terminal type | Spring-type terminals |
| Terminal connections | 2×3 |
| AUX1 access | Without terminal access to AUX1 |
Key Features
- Spare-part configuration: Includes 5 TM-E15C23-01 terminal modules for ET 200S electronic modules.
- Terminal connections: Spring-type terminals with 2×3 terminal connections.
- AUX1 access: Without terminal access to AUX1; AUX1 continuous, 5 units per packing unit.

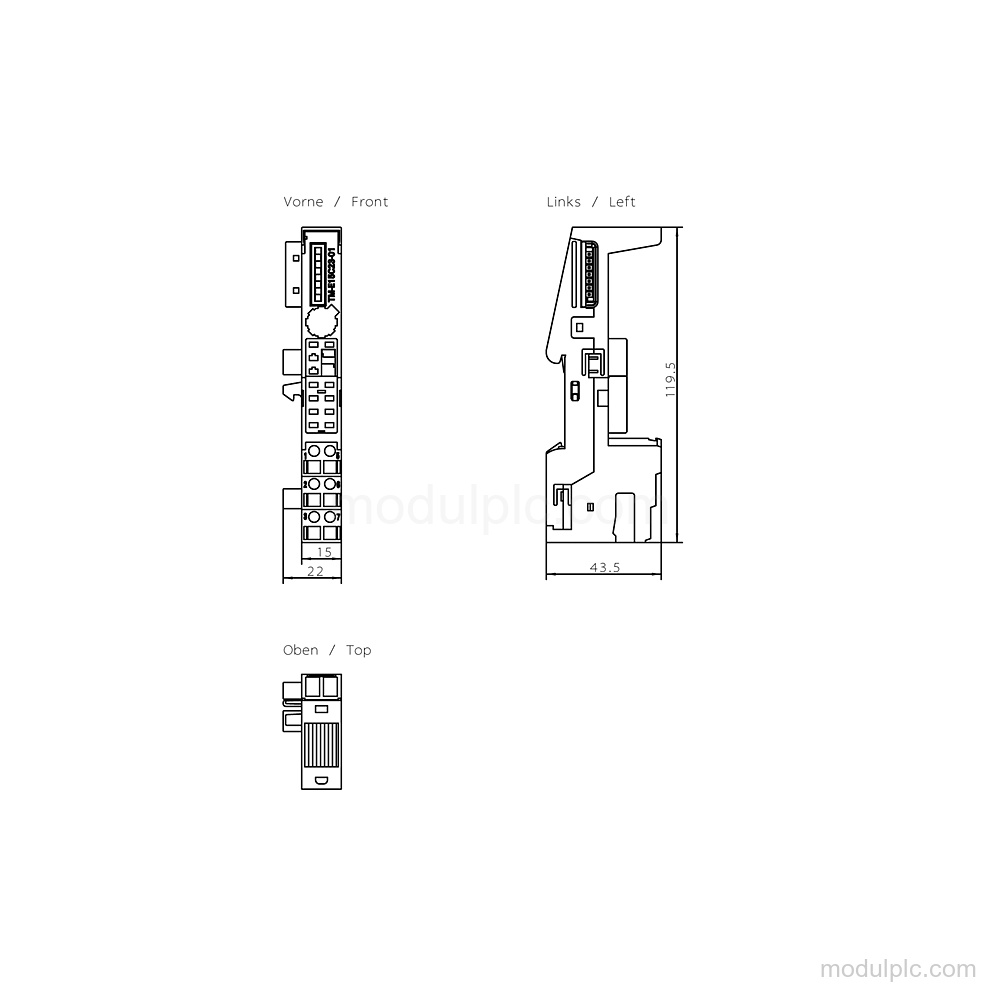

- Module dimensions: Width: 15 mm; height: 120 mm; depth: 43 mm.
- Weight: Weight, approx.: 55 g.
- Product lifecycle: Product cancellation.
Frequently Asked Questions
1. What does 6ES7193-4CB10-0AA0 contain?
It contains 5 TM-E15C23-01 terminal modules for ET 200S electronic modules.
2. What terminal connections does this spare part have?
It has spring-type terminals with 2×3 terminal connections.
3. Does it provide terminal access to AUX1?
It is without terminal access to AUX1.
4. What are the dimensions and weight of one module?
The dimensions are 15 mm × 120 mm × 43 mm, with an approximate weight of 55 g.
