Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | TM-E15C24-A1 terminal module |
| System context | ET 200S electronic modules |
| Delivery quantity | 5 |
| Terminal type | Spring-type terminals |
| Terminal connections | 2×4 terminal connections |
| Auxiliary terminal access | AUX1 |
Key Features
- Terminal module supply: Includes 5 TM-E15C24-A1 terminal modules for ET 200S electronic modules.
- Spring-type terminals: Each terminal module has spring-type terminals with 2×4 terminal connections.
- AUX1 access: The terminal connections provide access to AUX1; AUX1 is continuous across 5 units per packing unit.

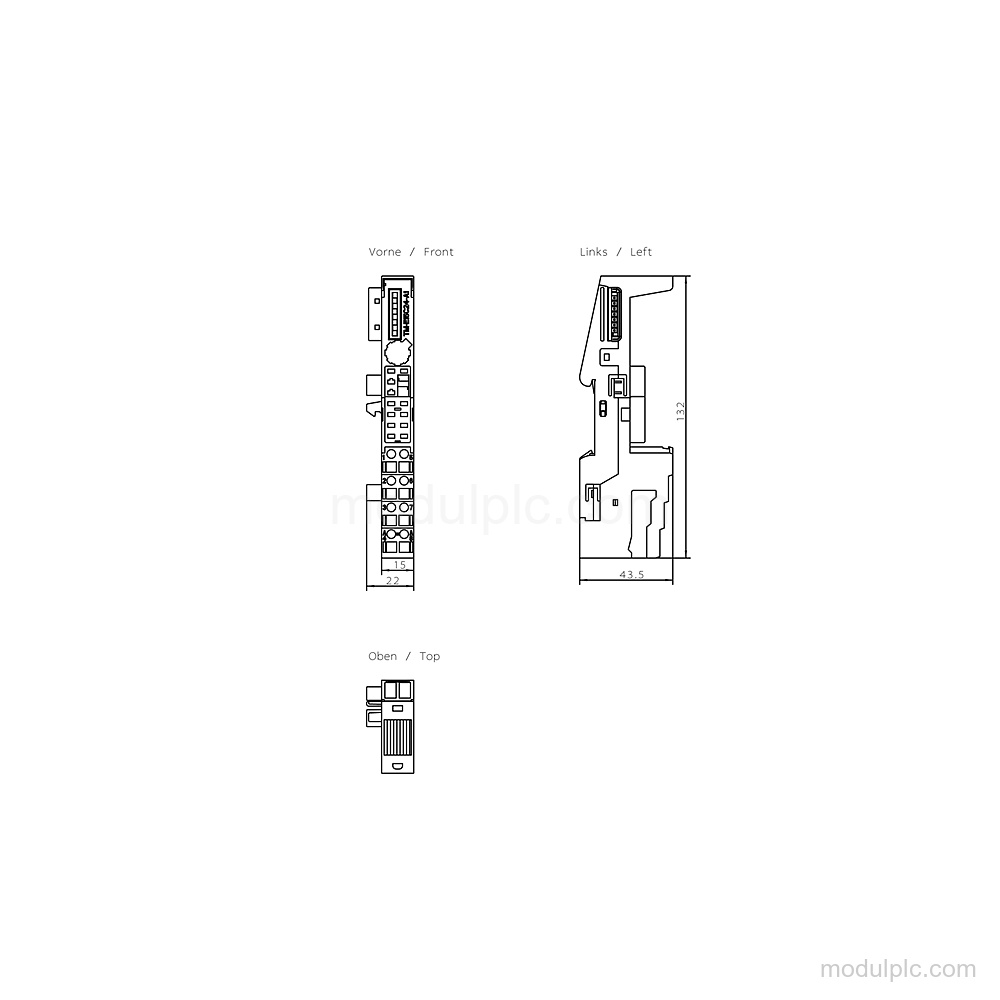

- Module dimensions: Width: 15 mm; height: 132 mm; depth: 43 mm.
- Weight: Weight, approx.: 65 g per module; collected net weight: 0.309 kg.
- Product lifecycle: Product cancellation.
Frequently Asked Questions
1. What is included with 6ES7193-4CA30-0AA0?
The configuration includes 5 TM-E15C24-A1 terminal modules for ET 200S electronic modules.
2. What terminal connections does this module have?
It has spring-type terminals with 2×4 terminal connections and terminal access to AUX1.
3. What are the dimensions of each terminal module?
Width is 15 mm, height is 132 mm, and depth is 43 mm.
4. What should be verified before requesting a quote?
Verify the TM-E15C24-A1 variant, the quantity of 5, spring-type terminals, 2×4 terminal connections, and AUX1 access.
