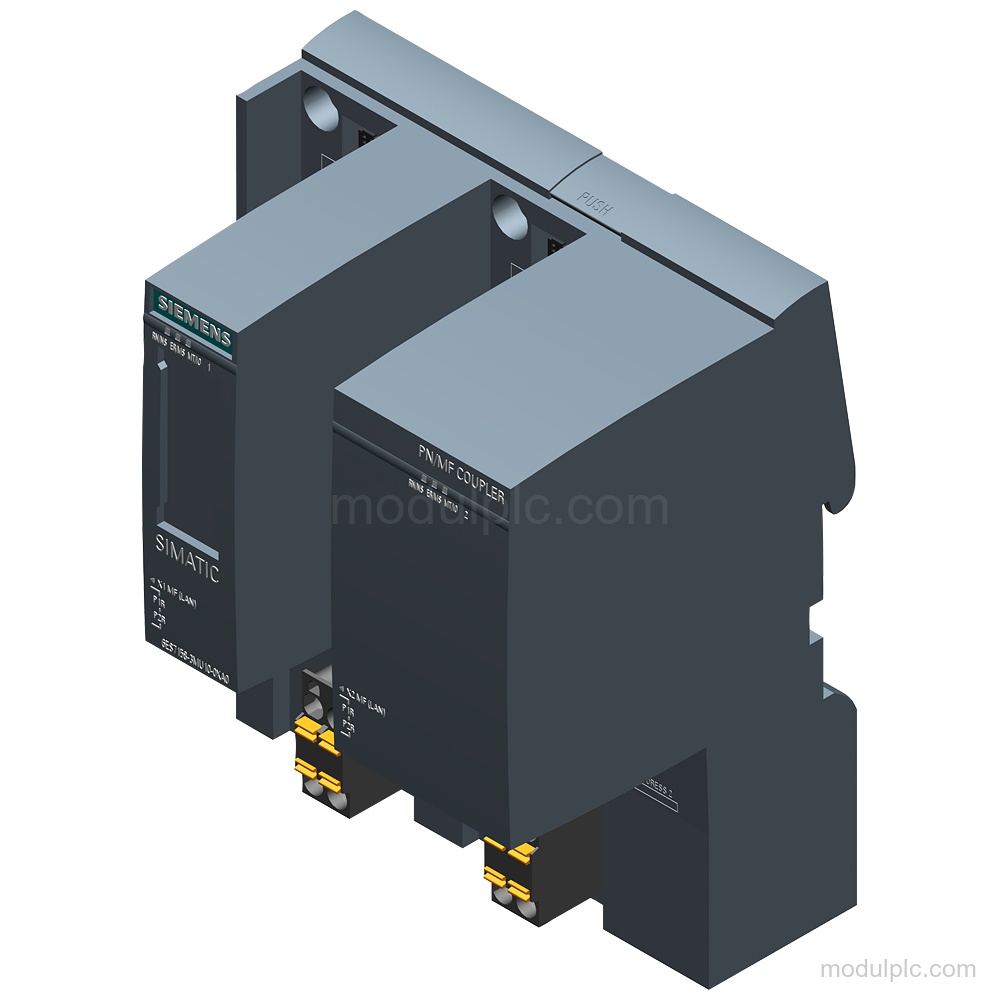

Product Overview
Technical Summary

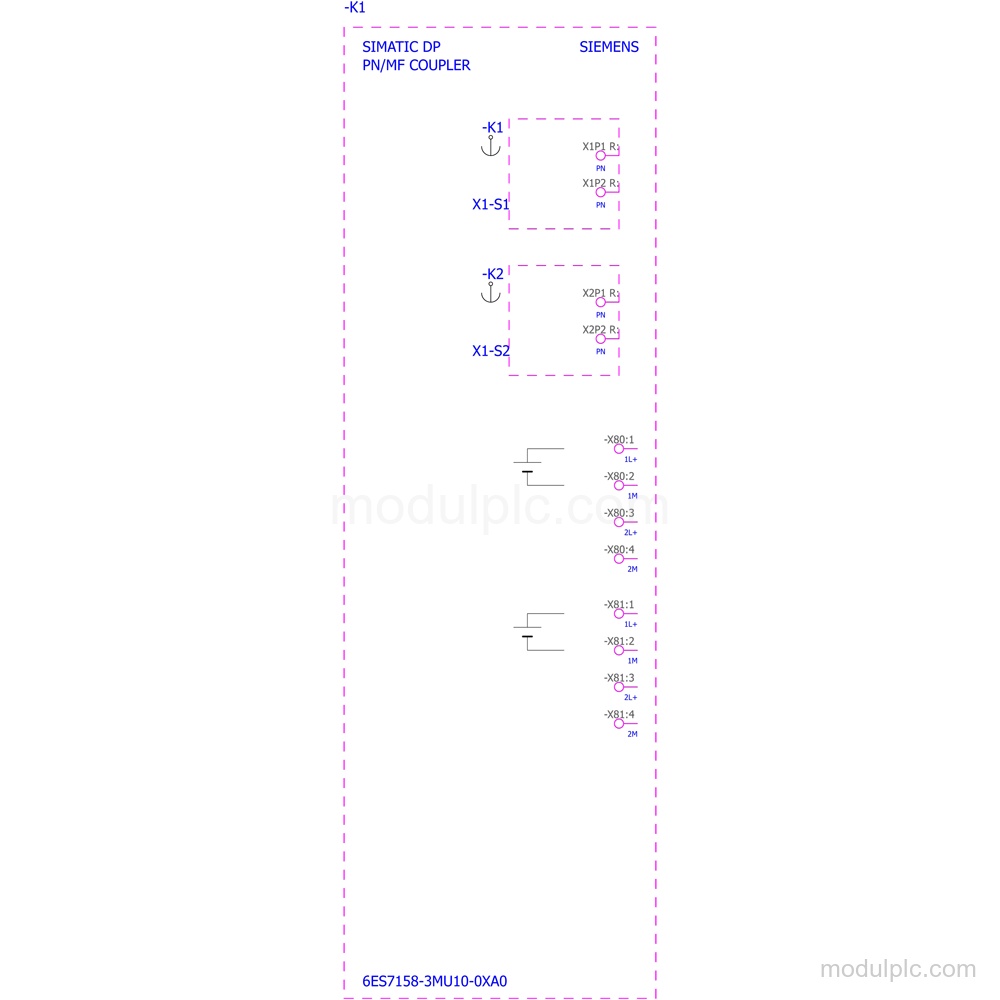

| Parameter | Value |
|---|---|
| Module type | PN/MF coupler |
| Supported protocols | PROFINET, EtherNet/IP |
| PROFINET interfaces | 2; 1 PROFINET interface per line side |
| Ports | 2; via BusAdapter |
| Transmission | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| Supply voltage | 24 V DC rated; permissible range 19.2 V to 28.8 V |
| Current consumption, max. | 360 mA; for 19.2 V input voltage at the right-hand supply terminal, including 2 plugged BA |

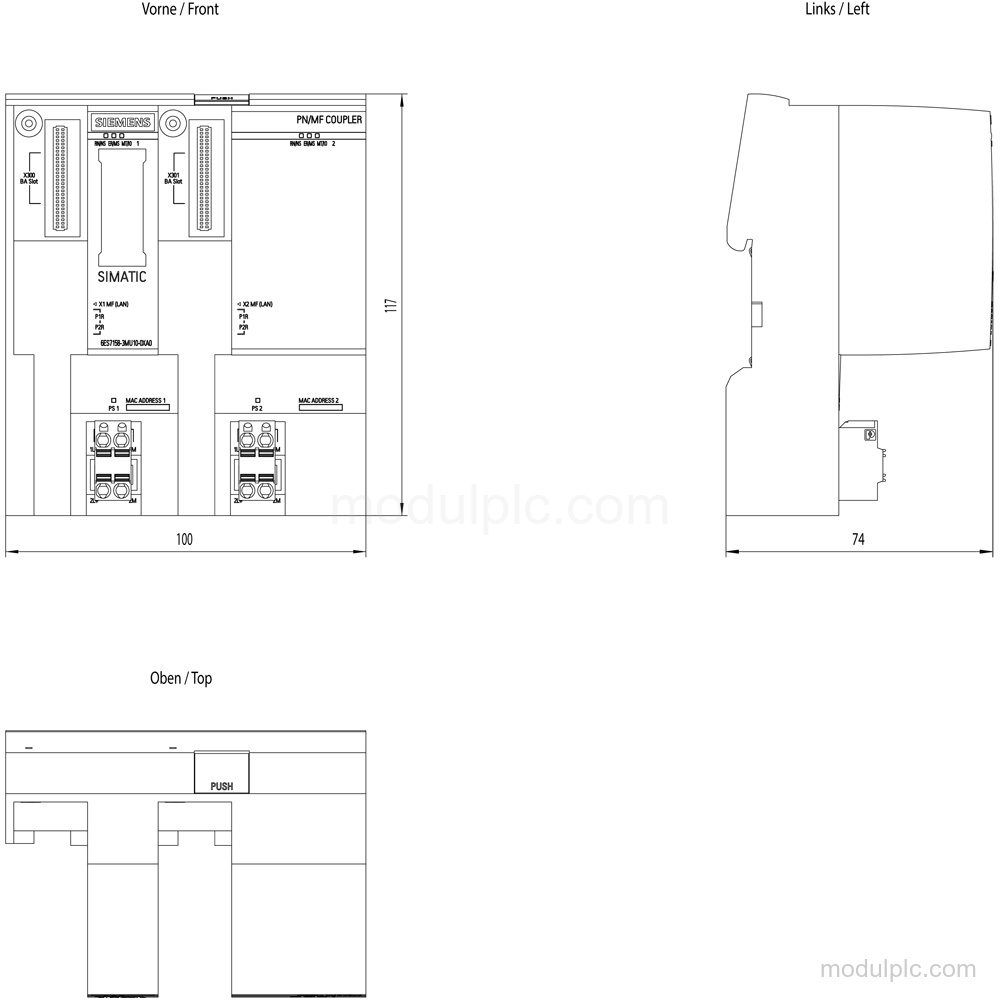

| Mounting | Mounting rail 7.5 mm and 15 mm |
| Compatible BusAdapters | BA 2x RJ45, BA 2x FC, BA 2x M12 |
| Media redundancy | MRP client; maximum of 50 nodes in the ring |
| BusAdapter | Supplied without BusAdapter |
Applications
- Deterministic data exchange: Couples fieldbus sides for deterministic data exchange between maximum 1 controller per side.
Key Features
- Multi-fieldbus coupling: Supports deterministic data exchange between maximum 1 controller per side via PROFINET and EtherNet/IP.
- PROFINET interfaces: Has 2 PROFINET interfaces, with 1 interface per line side and 2 ports via BusAdapter.
- Ethernet transmission: Supports PROFINET with 100 Mbit/s full duplex (100BASE-TX), autonegotiation, and autocrossing.
- Redundancy and protocols: Supports PROFINET system redundancy (S2) as NAP S2 according to IEC, MRP client operation with a maximum of 50 nodes in the ring, TCP/IP, SNMP, and LLDP.
- Supply and mounting: Uses a 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V, reverse polarity protection, and mounting on 7.5 mm or 15 mm mounting rail.

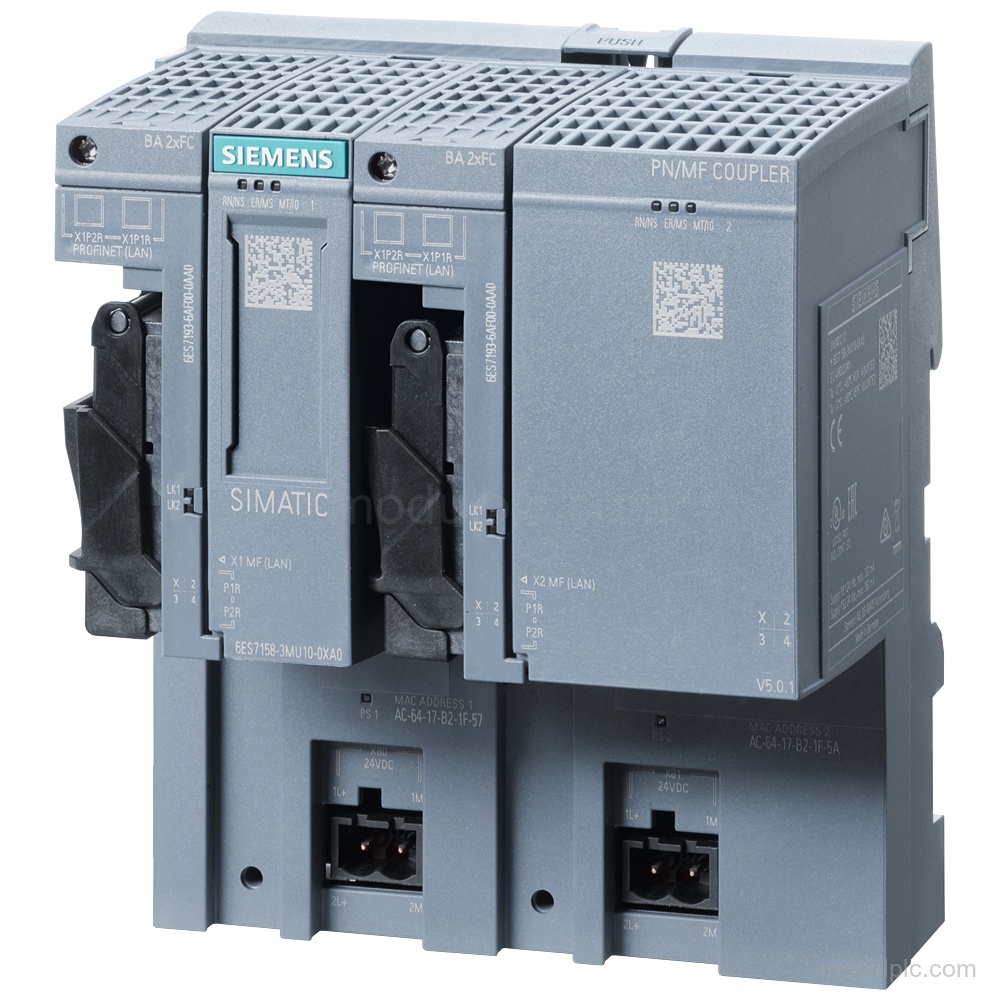

- BusAdapter connection: Connects through a SIMATIC BusAdapter; compatible options are BA 2x RJ45, BA 2x FC, and BA 2x M12. The BusAdapter is supplied separately.
Frequently Asked Questions
1. Which protocols does the 6ES7158-3MU10-0XA0 support?
It supports PROFINET, EtherNet/IP via interface X1, TCP/IP, SNMP, and LLDP.
2. How many PROFINET interfaces and ports does it have?
It has 2 PROFINET interfaces, with 1 interface per line side, and 2 ports via BusAdapter.
3. What Ethernet transmission speed is supported?
It supports PROFINET with 100 Mbit/s full duplex (100BASE-TX); 10 Mbps is not supported.
4. Which BusAdapters can be used?
Compatible BusAdapters are BA 2x RJ45, BA 2x FC, and BA 2x M12. The BusAdapter is not included.
5. What supply and mounting details should be verified?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Mounting is on 7.5 mm or 15 mm mounting rail.
