Product Overview
Technical Summary
| Parameter | Value |
|---|---|

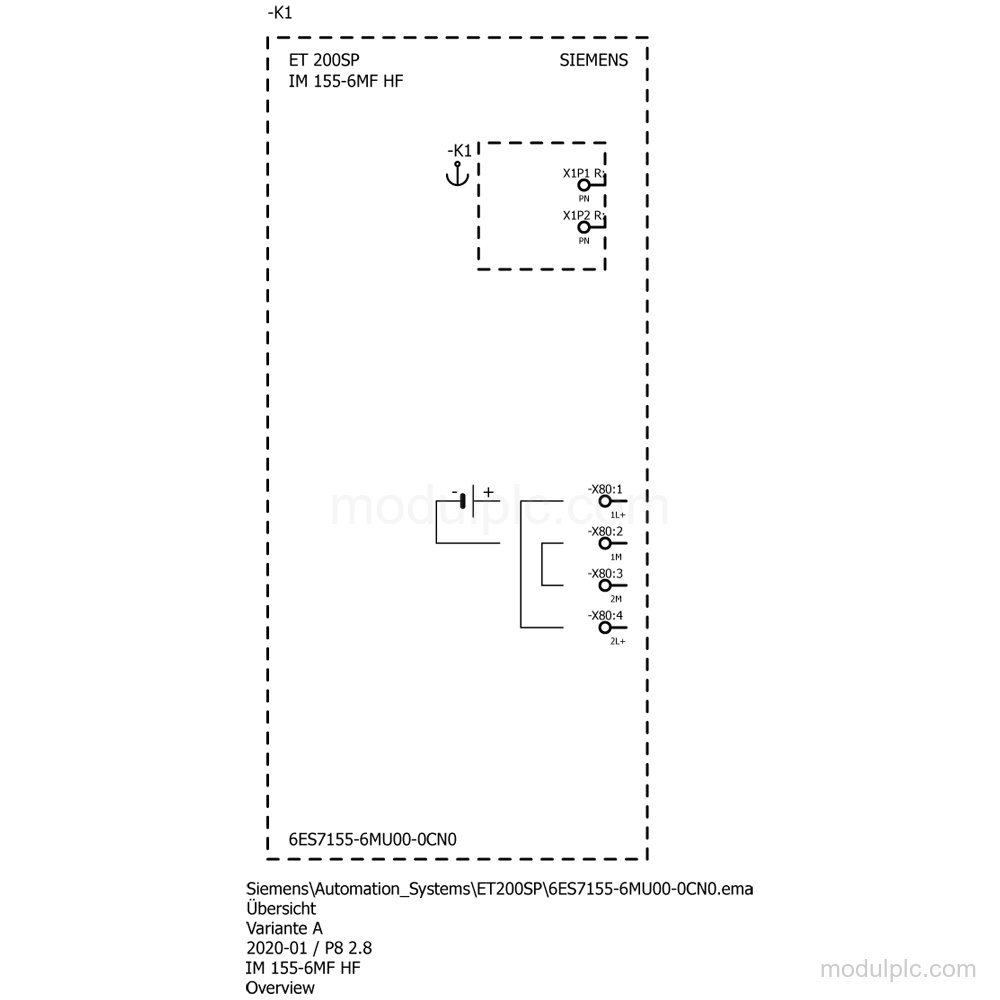

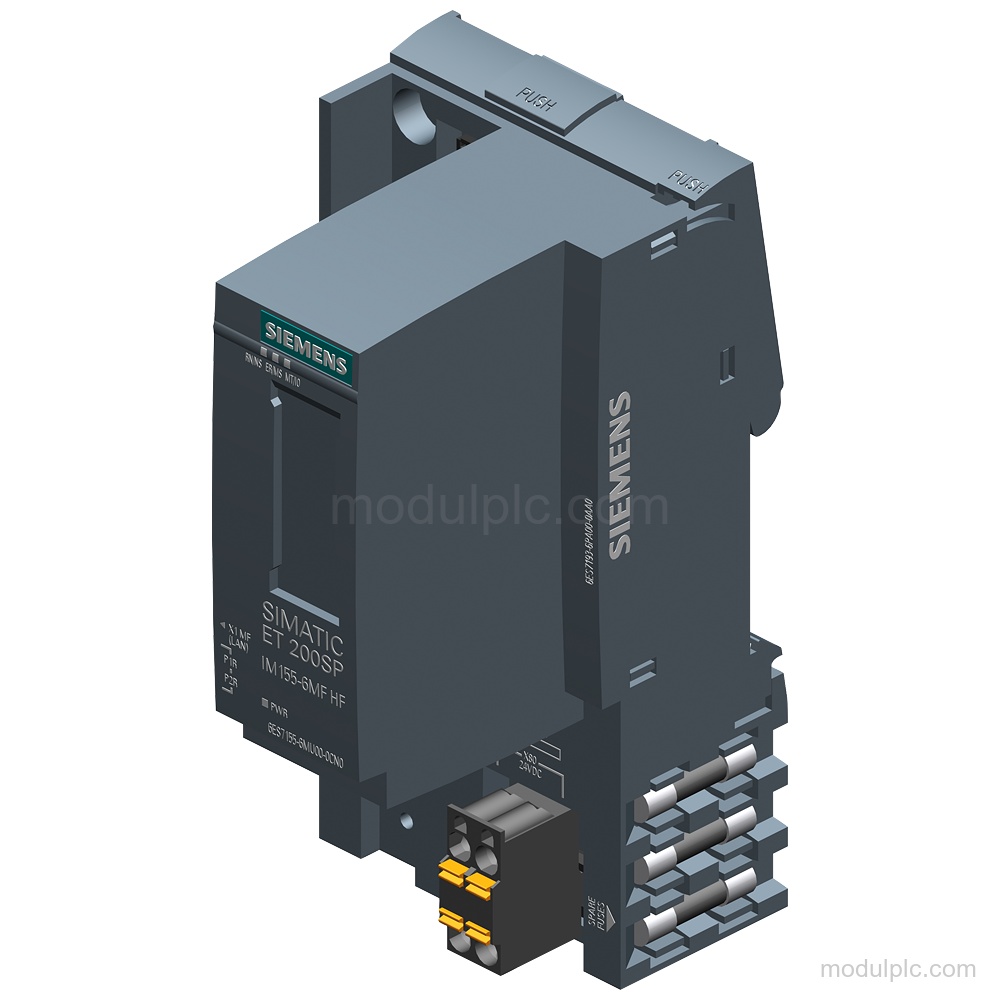

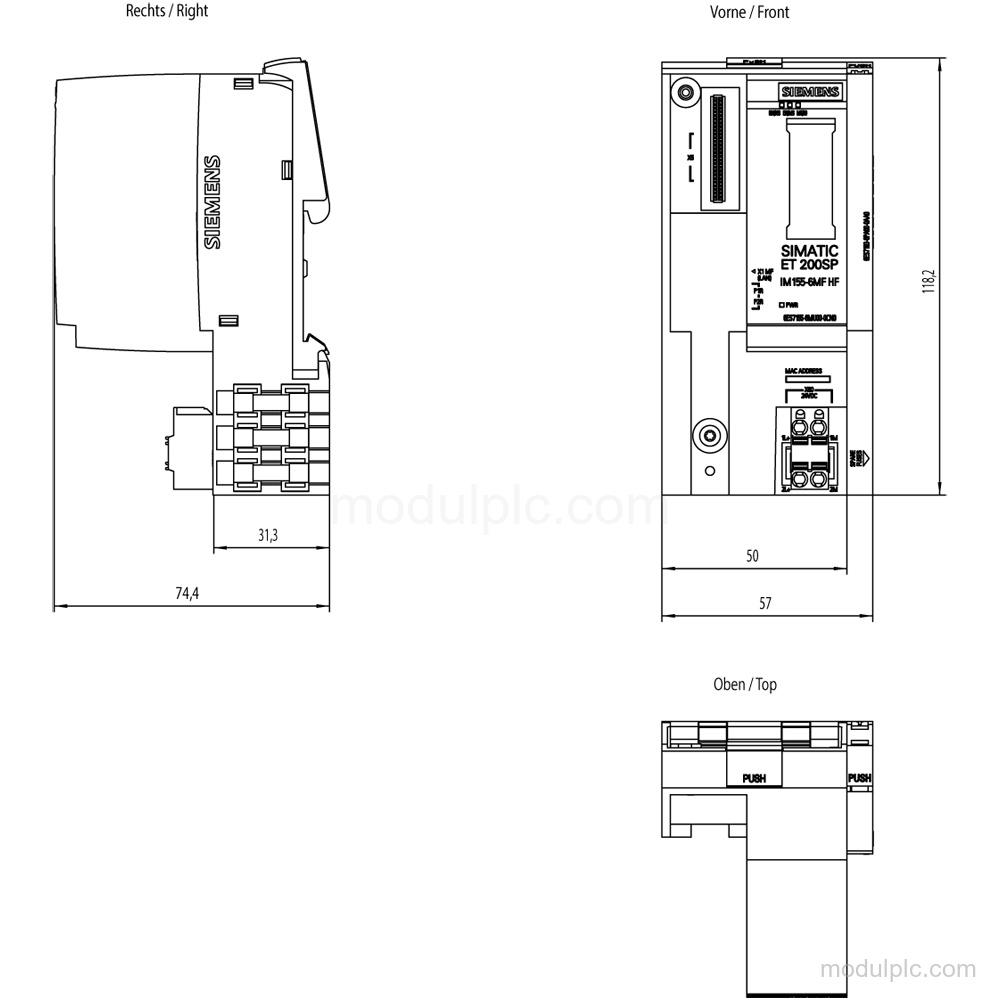

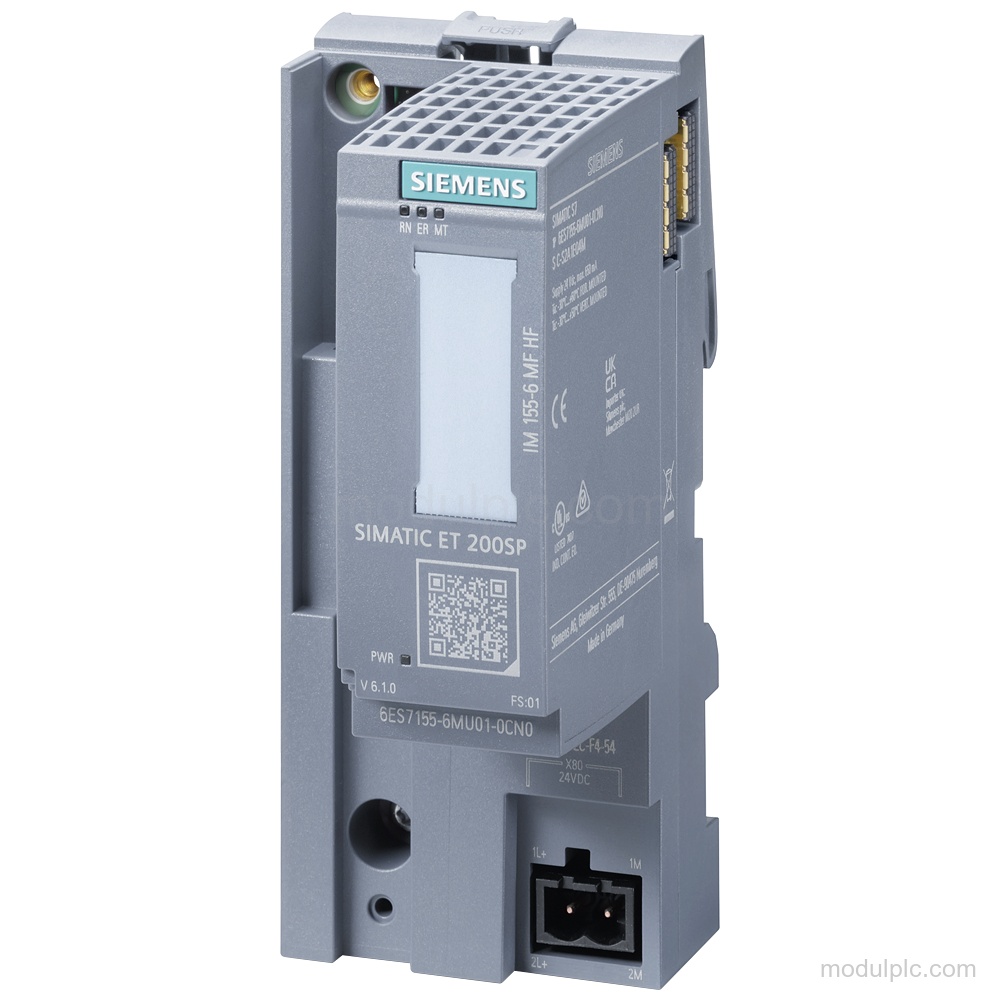

| Product type | IM 155-6 MF HF |
| Network interfaces | 1 PROFINET interface; 2 ports (switch) |
| Supported protocols | PROFINET IO, EtherNet/IP and Modbus TCP |
| ET 200SP modules, max. | 64 |
| ET 200AL modules, max. | 16 |
| Supply voltage, rated | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Current consumption, max. | 700 mA |
| I/O request interval | 2 ms |
| BusAdapter | 1 slot; BusAdapter required for RJ 45 (Ethernet) |
| Product lifecycle | Product cancellation |
Applications
- Local I/O coupling: Supports local coupling of I/O data with up to 6 coupling modules: 1 output and up to 5 inputs.
- Multi-fieldbus communication: Provides communication through PROFINET IO, EtherNet/IP and Modbus TCP.
- I/O data exchange: Supports input and output data exchange with a maximum address space of 288 byte per module.
Key Features
- Multi-fieldbus interface: Supports PROFINET IO, EtherNet/IP and Modbus TCP, with Open IE communication.
- Two-port network connection: Provides 1 PROFINET interface with 2 switch ports and an integrated switch through a BusAdapter.
- Module capacity: Supports up to 64 ET 200SP modules, 16 ET 200AL modules and 256 submodules per station.
- Supply and protection: Has a 24 V DC rated supply, a permissible range of 19.2 V to 28.8 V, reverse polarity protection and short-circuit protection.
- Diagnostics and hot swapping: Has status, alarm and diagnostics functions, plus multi-hot swapping and RUN, ERROR, MAINT, PWR, NS, MS and IO LEDs.
- Configuration and connection: Includes a server module and supports one BusAdapter slot; the cable grip is optional.
Frequently Asked Questions
1. What type of module is Siemens 6ES7155-6MU00-0CN0?
It is an IM 155-6 MF HF multi-fieldbus, 2-port interface module with one BusAdapter slot and an included server module.
2. Which protocols does the module support?
It supports PROFINET IO, EtherNet/IP and Modbus TCP. PROFIBUS and Modbus TCP Security Protocol are not supported.
3. What supply voltage does the module require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. How many modules can the station operate?
The station can operate up to 64 ET 200SP modules and 16 ET 200AL modules.
