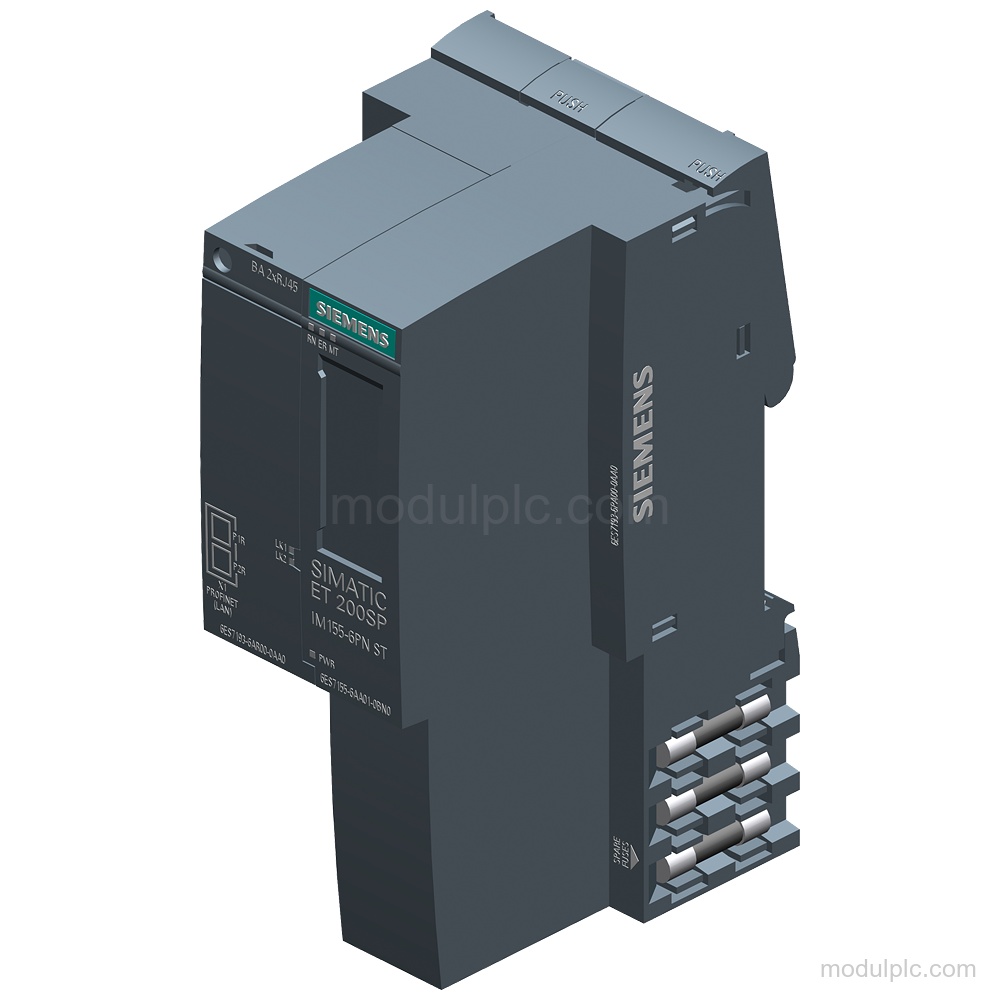

Product Overview

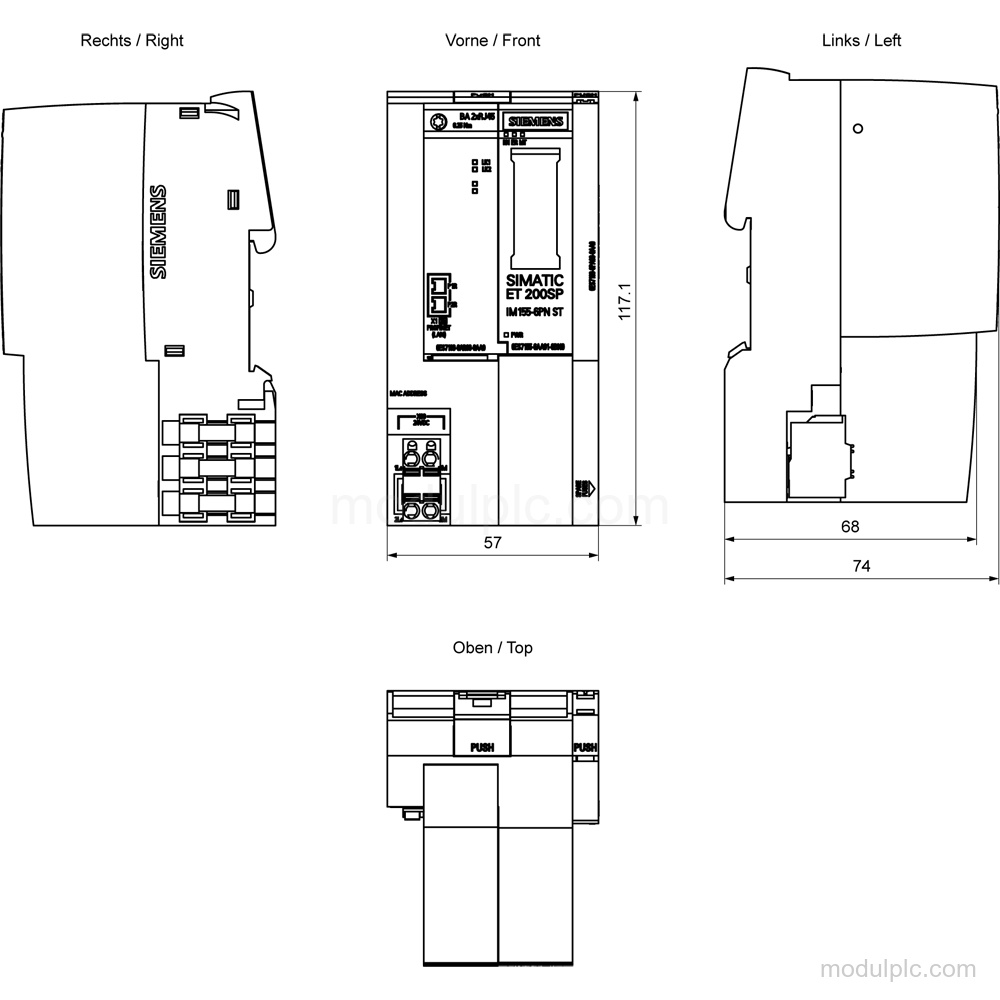

Technical Summary
| Parameter | Value |
|---|---|
| Module type | IM 155-6PN ST interface module with BusAdapter BA 2x RJ45 |
| Supported ET 200SP modules, max. | 32 |
| Supported ET 200AL modules, max. | 16 |
| Supply voltage, rated | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Current consumption, rated | 450 mA |
| PROFINET interfaces | 1; 2 ports (switch) |
| Ethernet transmission | 100BASE-TX; 100 Mbit/s full duplex |
| Hot swapping | Single hot swapping |
| PROFINET IO Device | Yes |
Applications
- PROFINET IO device communication: Operates as a PROFINET IO Device for communication over the PROFINET network.
- Open IE communication: Supports Open IE communication using TCP/IP, SNMP, and LLDP.
- Shared device operation: Supports shared device operation with up to 2 IO Controllers.
Key Features
- PROFINET interface module: IM 155-6PN ST with BusAdapter BA 2x RJ45; the bundle includes the interface module, Server module, and BusAdapter.
- Supported module quantities: Supports up to 32 ET 200SP I/O modules and 16 ET 200AL modules.
- PROFINET communication: Provides PROFINET IO Device, Open IE communication, PROFINET MRP client, and PROFIenergy.

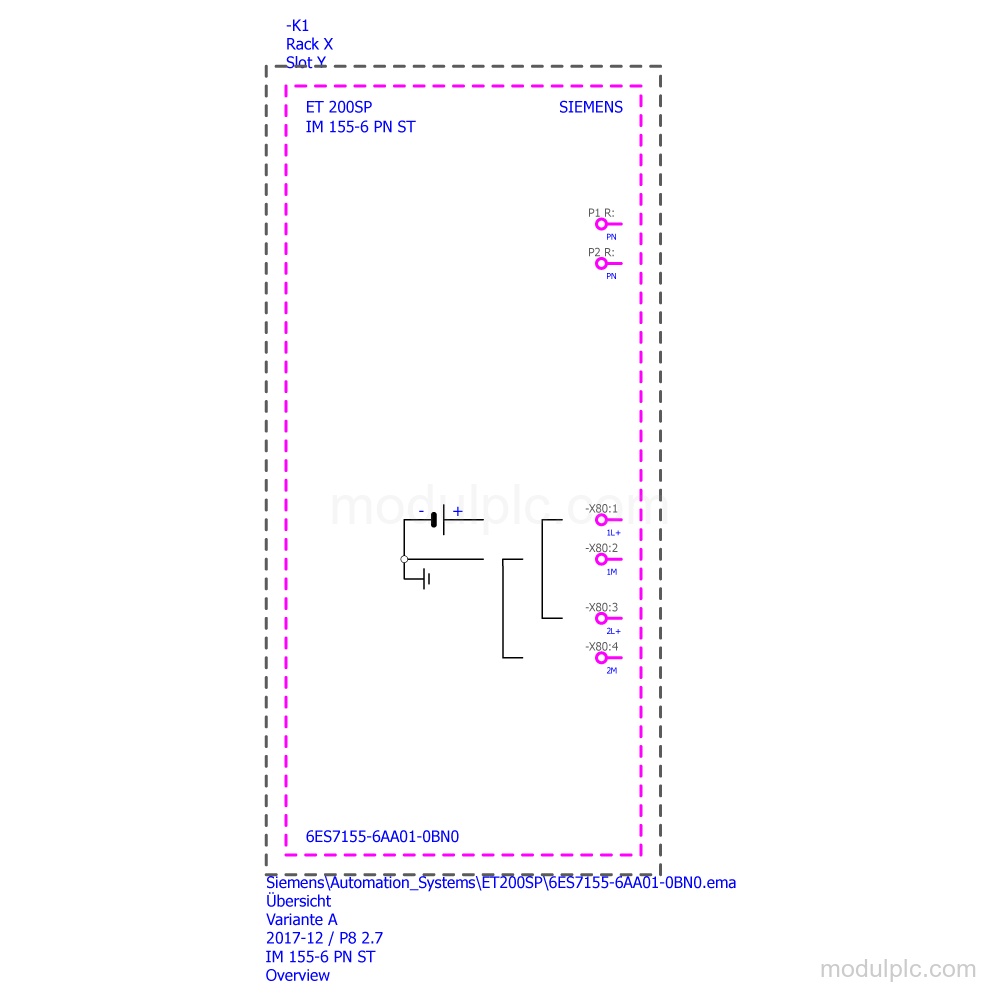

- Ethernet ports: Provides 2 ports with BusAdapter, integrated switch, 100BASE-TX, 100 Mbit/s full duplex, autonegotiation, and autocrossing.
- Supply and protection: Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V, reverse polarity protection, and short-circuit protection.
- Diagnostics and hot swapping: Supports status indicators, alarms, diagnostics, RUN, ERROR, MAINT, PWR, and LINK LEDs, plus single hot swapping.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7155-6AA01-0BN0?
It is an IM 155-6PN ST PROFINET interface module for SIMATIC ET 200SP.
2. How many ET 200SP and ET 200AL modules does it support?
It supports up to 32 ET 200SP I/O modules and 16 ET 200AL modules.
3. What supply voltage does the module require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. Which Ethernet connection does the bundle provide?
It provides a BusAdapter BA 2x RJ45 with 2 ports, an integrated switch, and 100BASE-TX transmission.
5. Does it support module swapping during operation?
Yes. It supports single hot swapping.
