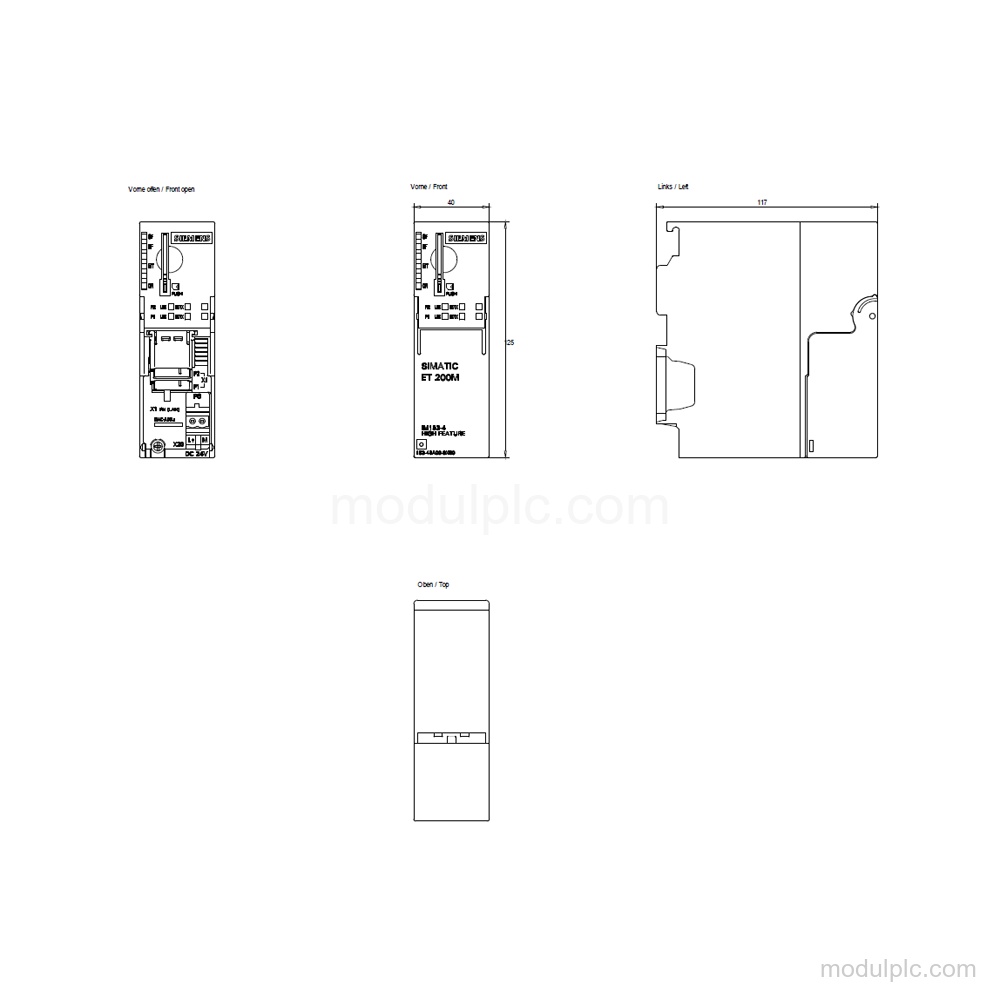

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | IM 153-4 PN HF |
| System connection | ET 200M |
| Maximum modules per DP device interface | 12 |
| Bus protocol | PROFINET IO |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 20.4 V to 28.8 V DC |
| Maximum current consumption | 600 mA; with 24 V DC supply |
| Input addressing volume | 672 byte; Extended HART user data |
| Output addressing volume | 192 byte |
| Maximum operating temperature | 0 °C to 60 °C |
Key Features
- ET 200M connection: IM 153-4 PN HF connection for ET 200M; the supplied description identifies it as a spare part.
- Module capacity: Supports up to 12 S7-300 modules per DP device interface.
- PROFINET IO communication: Bus protocol/transmission protocol: PROFINET IO; TCP/IP, SNMP, LLDP, ping, and ARP are supported.
- Supply and consumption: Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V DC. Maximum current consumption is 600 mA with 24 V DC supply.
- Diagnostics and protection: Module diagnostics, LINK LED with green LED, and RX/TX LED with yellow LED are provided. Protection degree: IP20.
- Redundancy and shared device: Supports MRP, shared device, IRT, prioritized startup, and PROFINET system redundancy (S2) on S7-400H.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7153-4BA00-0XB0?
It is an IM 153-4 PN HF connection for ET 200M.
2. How many modules can the DP device interface support?
It supports up to 12 S7-300 modules per DP device interface.
3. What supply voltage does this module use?
The rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
4. Which communication protocol and services are supported?
The module supports PROFINET IO, TCP/IP, SNMP, LLDP, ping, ARP, MRP, IRT, prioritized startup, and shared device.
5. What should be verified before requesting a quote?
Verify the exact order number, 24 V DC supply conditions, required module capacity, and the required PROFINET and redundancy services.
