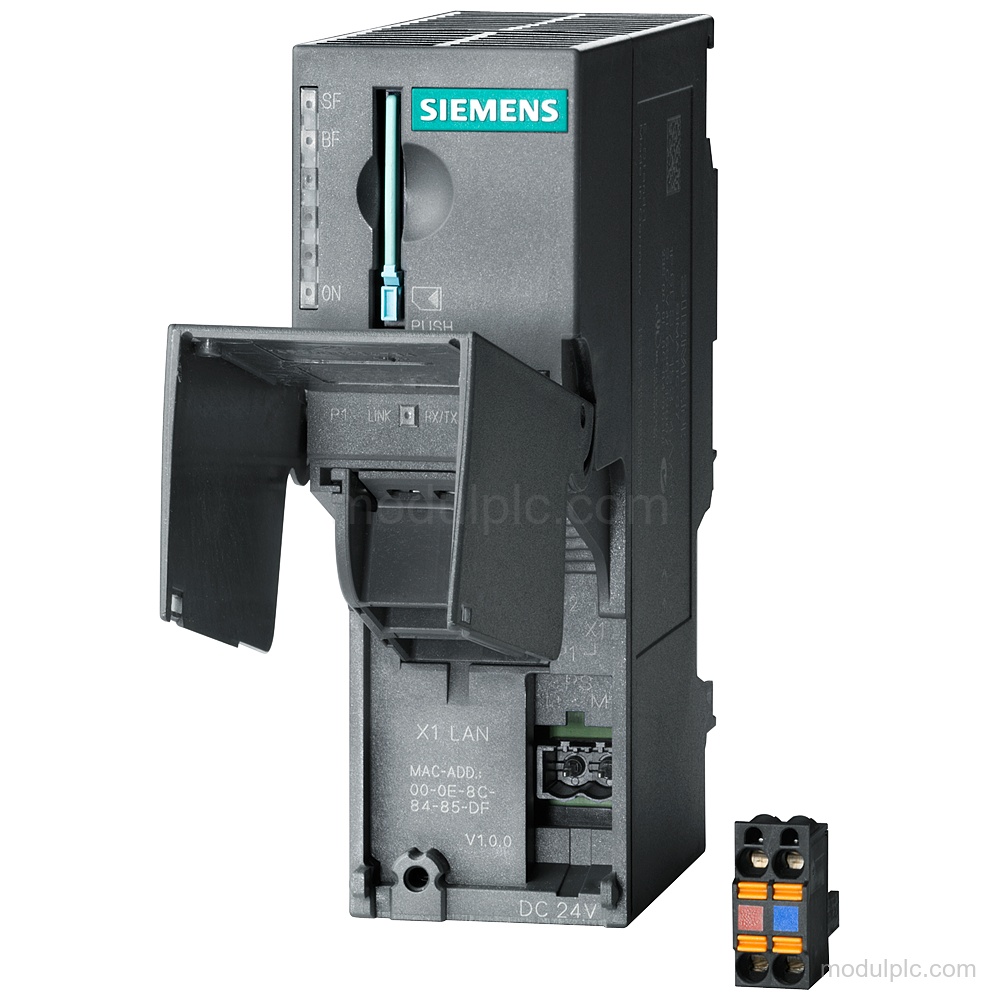

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type designation | IM 153-4 PN ST |
| Supported modules per DP device interface, max. | 12 |
| Bus protocol/transmission protocol | PROFINET IO |
| Rated supply voltage (DC) | 24 V |
| Permissible supply voltage range (DC) | 20.4 V to 28.8 V |
| Current consumption, max. | 600 mA; with 24 V DC supply |
| Module diagnostics | Yes |
| IP degree of protection | IP20 |
| Operating ambient temperature | 0 °C to 60 °C |
Applications
- Module exchange: Supports module exchange without PG.
Key Features
- Module type and capacity: Product type designation: IM 153-4 PN ST. Supports up to 12 S7-300 modules per DP device interface.
- PROFINET IO communication: Bus protocol/transmission protocol: PROFINET IO. MRP media redundancy: Yes; TCP/IP and PROFINET system redundancy (S2): No.
- Supply and current: Rated supply: 24 V DC, permissible range 20.4 V to 28.8 V DC. Maximum current consumption: 600 mA with 24 V DC supply.
- Diagnostics and indicators: Module diagnostics are supported. LINK LED: green; RX/TX LED: yellow.
- Protection and isolation: IP degree of protection: IP20. Potential separation exists and isolation is tested with 500 V DC.

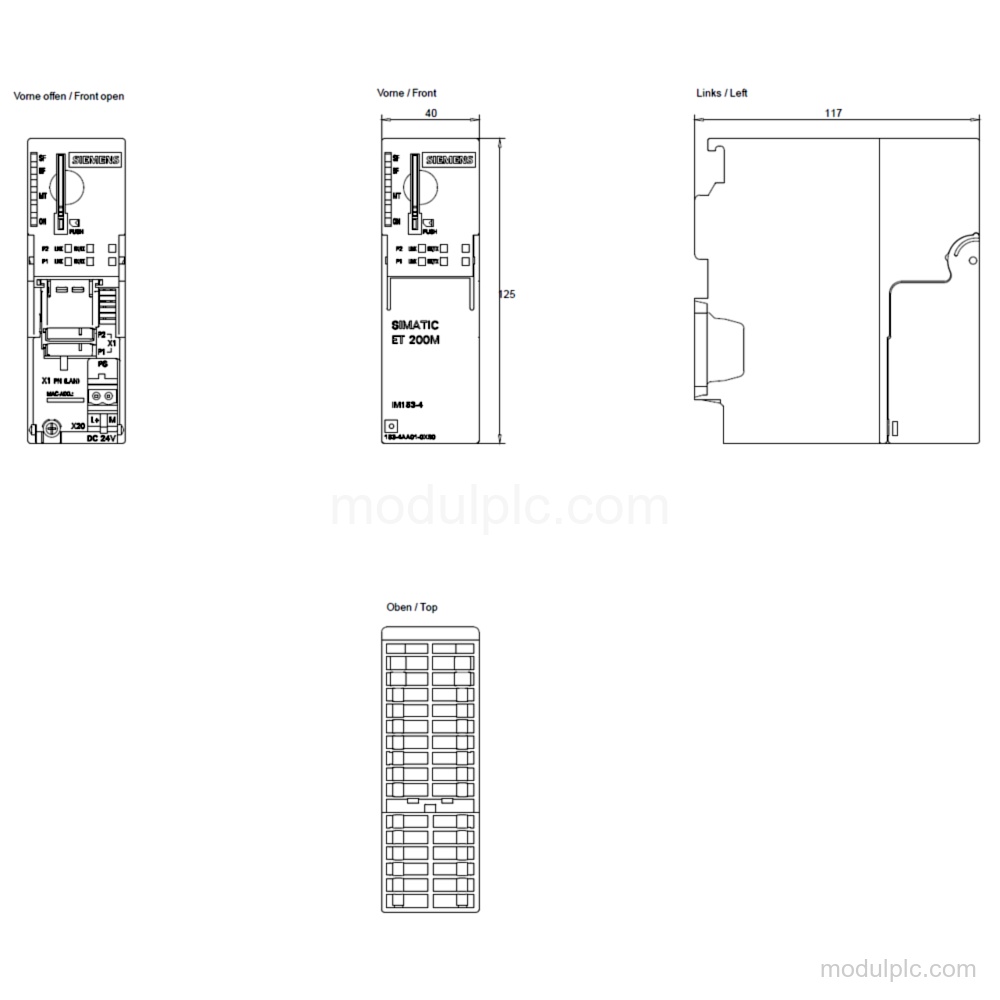

- Dimensions and weight: Dimensions: 40 mm wide, 125 mm high, and 118 mm deep. Approximate weight: 215 g.
