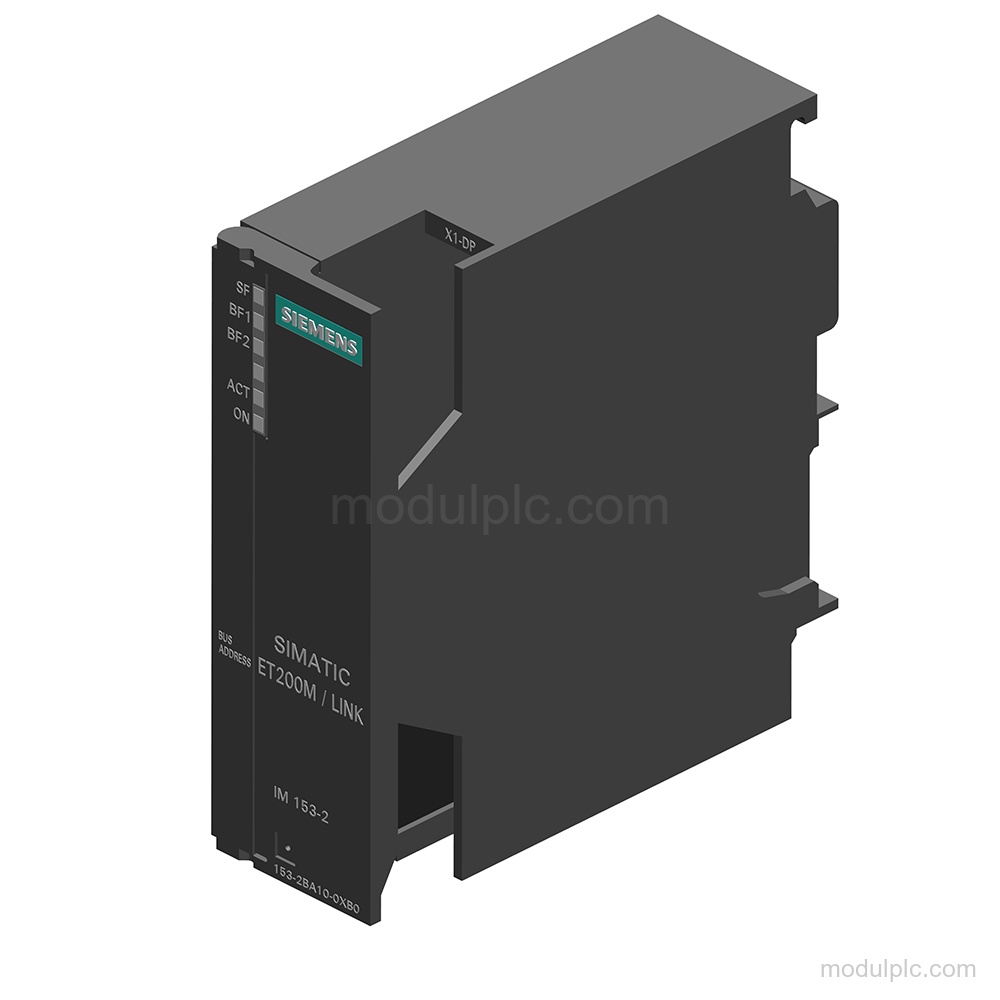

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 153-2 DP HF |
| Module capacity | Up to 12 S7-300 modules per DP device interface |
| Communication protocol | PROFIBUS DP to EN 50170 |
| Transmission interface | RS 485 |
| Maximum transmission rate | 12 Mbit/s |
| Rated supply | 24 V DC |
| Time-stamp accuracy | 1 ms at up to 8 modules; 10 ms at up to 12 modules |
| Connection | 9-pin sub D socket |
| Protection rating | IP20 |
| Lifecycle | Product cancellation |
Applications
- ET 200M connection: Connects ET 200M systems with S7-300 modules through the IM 153-2 DP HF interface.
- PROFIBUS DP communication: Provides PROFIBUS DP communication over an RS 485 interface, including SYNC, FREEZE, and direct data exchange services.
- Digital input time stamping: Records time stamps on digital input signal changes, including rising and falling edges.
Key Features
- Module type and capacity: IM 153-2 DP HF connection interface for ET 200M with up to 12 S7-300 modules per DP device interface.
- PROFIBUS DP communication: PROFIBUS DP to EN 50170 with RS 485 transmission up to 12 Mbit/s, automatic transmission-rate detection, and node addresses 1 to 125 permitted.
- Time stamping: Time-stamp accuracy is 1 ms at up to 8 modules and 10 ms at up to 12 modules; up to 128 stampable digital inputs are supported, with max. 32 signals/slot.
- Supply and current: Rated supply: 24 V DC; permissible range: 20.4 V to 28.8 V DC. Maximum current consumption: 650 mA with 24 V DC supply.
- Connection and protection: Connection: 9-pin sub D socket. Protection rating: IP20; potential separation exists, with isolation tested at 500 V.

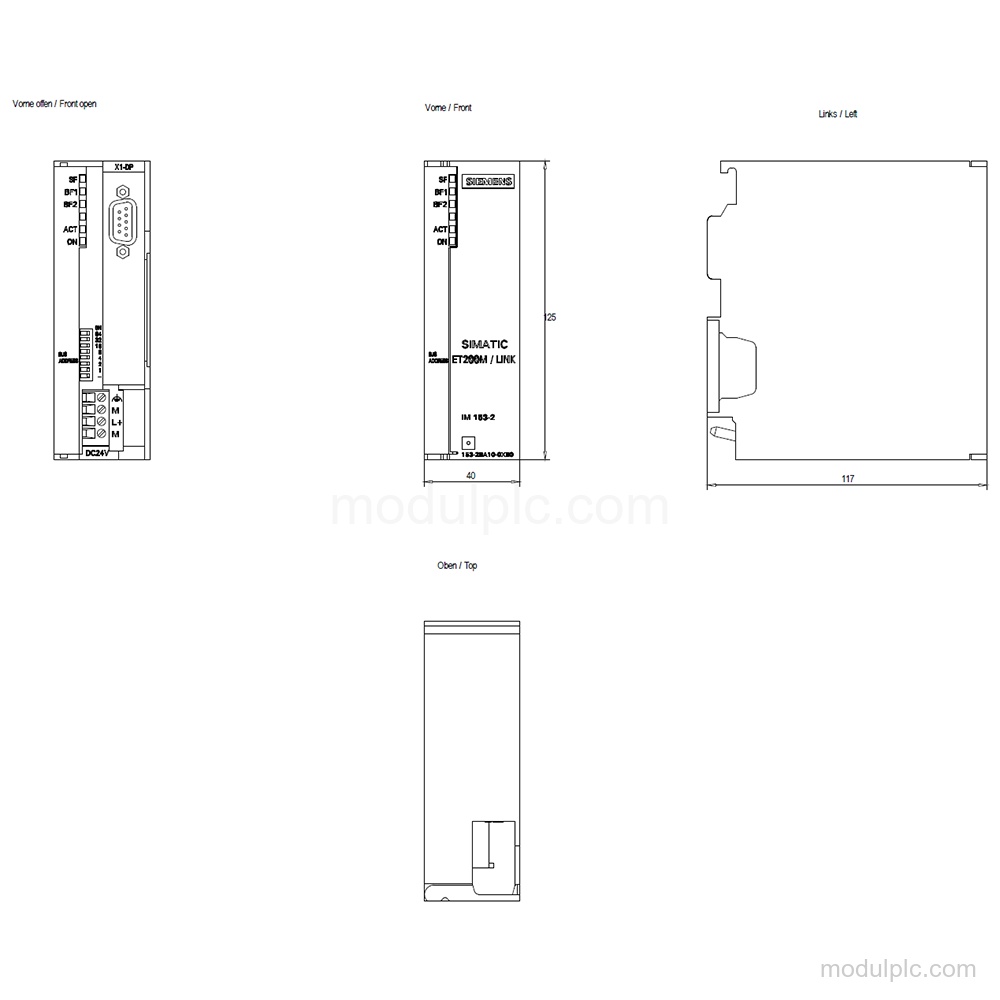

- Dimensions and installation: Dimensions: 40 mm width, 125 mm height, and 117 mm depth. During vertical installation, the ambient temperature range is 0 °C to 40 °C.
Frequently Asked Questions
1. What type of module is Siemens 6ES7153-2BA10-0XB0?
It is an IM 153-2 DP HF connection interface for ET 200M systems.
2. How many modules can the IM 153-2 DP HF support?
It supports up to 12 S7-300 modules per DP device interface.
3. Which communication interface and protocol does it use?
It uses an RS 485 interface and PROFIBUS DP to EN 50170, with transmission rates up to 12 Mbit/s.
4. What connection and supply does it have?
It has a 9-pin sub D socket and a rated supply of 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
