Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 153-1 DP ST |
| Module capacity | Max. 8 S7-300 modules per DP device interface |
| Bus protocol | PROFIBUS DP to EN 50170 |
| Transmission procedure | RS 485 |
| Maximum transmission rate | 12 Mbit/s |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 20.4 V to 28.8 V DC |
| Interface connection | 9-pin sub D socket |
| Input addressing volume | 128 byte |
| Output addressing volume | 128 byte |
Applications
- PROFIBUS DP communication: Connects an ET 200M station to a PROFIBUS DP network using RS 485 transmission.
- Distributed data exchange: Supports direct data exchange as a sender, plus SYNC and FREEZE services.
Key Features

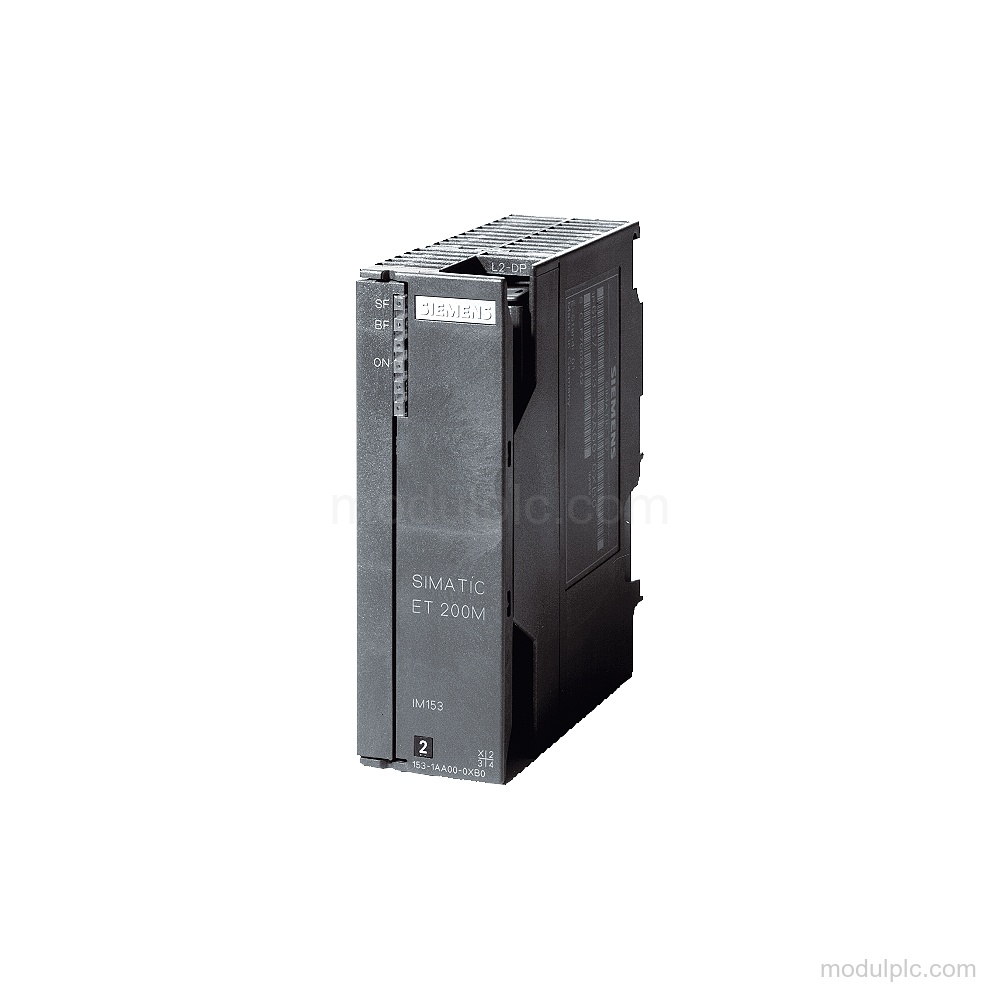

- Connection module type: Product type designation: IM 153-1 DP ST; connection module for ET 200M.
- Module capacity: Supports max. 8 S7-300 modules per DP device interface.
- PROFIBUS DP interface: Bus protocol: PROFIBUS DP to EN 50170; transmission procedure: RS 485; maximum transmission rate: 12 Mbit/s.
- Supply voltage: Rated supply voltage: 24 V DC, with a permissible range of 20.4 V to 28.8 V.
- Interface connection: Connection design: 9-pin sub D socket; maximum interface output current: 90 mA.

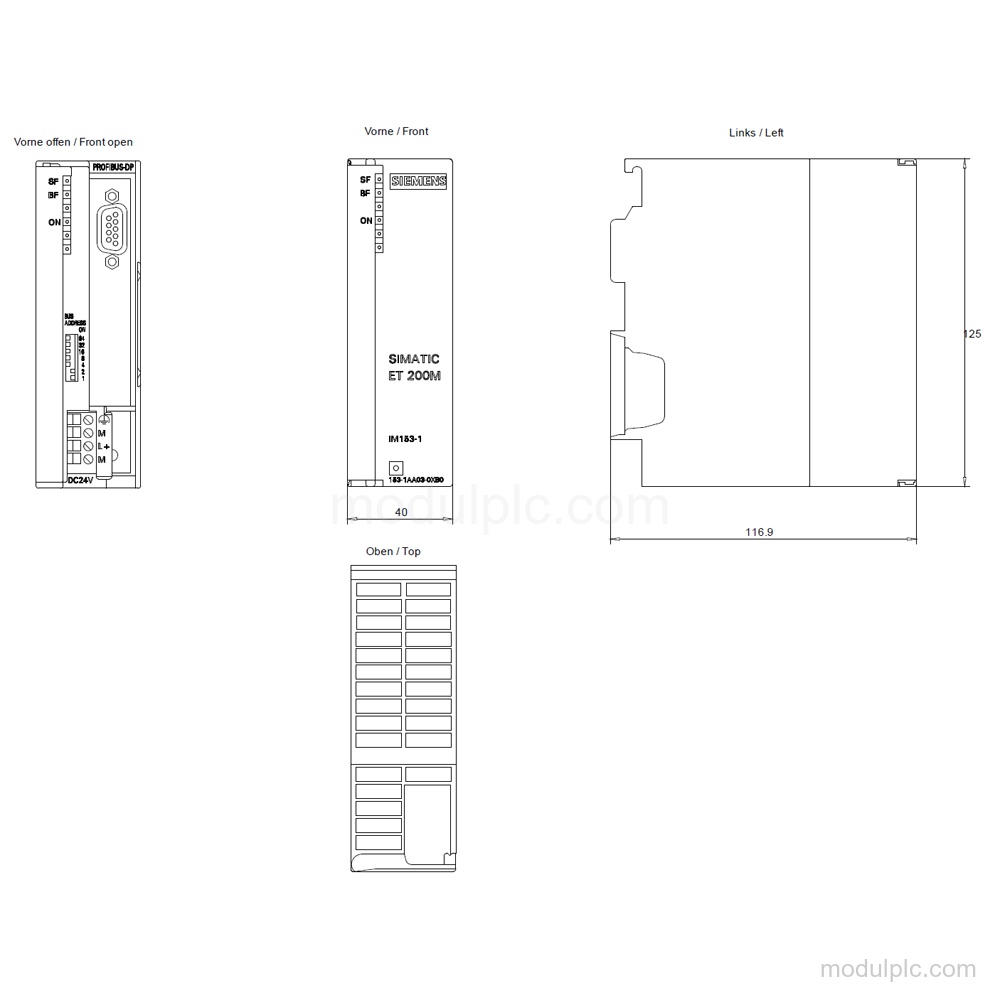

- Installation and protection: IP20 degree of protection; dimensions: 40 mm × 125 mm × 117 mm; horizontal installation temperature: 0 °C to 60 °C and vertical installation temperature: 0 °C to 40 °C.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7153-1AA03-0XB0?
It is an IM 153-1 DP ST connection module for ET 200M.
2. How many modules can the DP device interface support?
It supports max. 8 S7-300 modules per DP device interface.
3. Which network interface and protocol does it use?
It uses an RS 485 transmission procedure and PROFIBUS DP to EN 50170, with a maximum transmission rate of 12 Mbit/s.
4. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
