Product Overview
Technical Summary
| Parameter | Value |
|---|---|

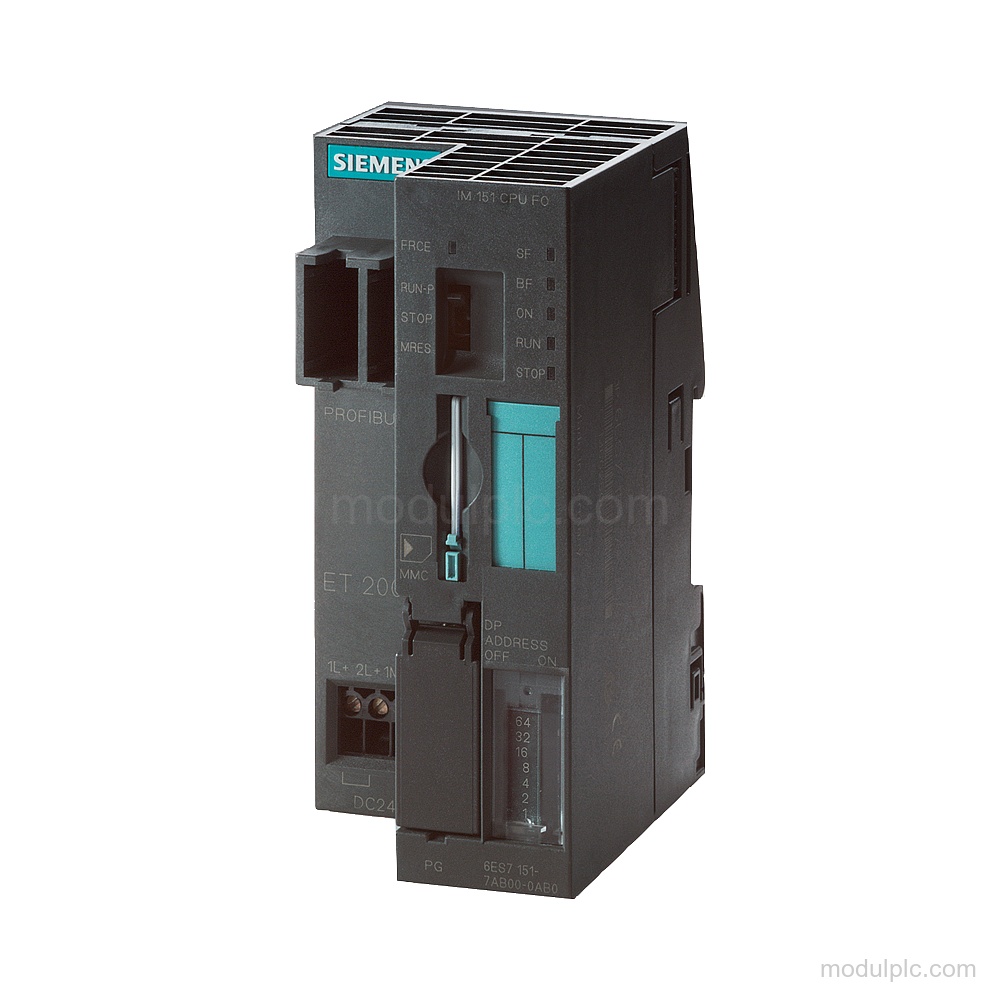

| Product type | SIMATIC DP IM151-7 CPU FO spare part |
| Work memory | 48 KB |
| Interface | 1x PROFIBUS DP; fiber-optic interface and integrated RS 485 interface for programming |
| PROFIBUS DP transmission rate, max. | 12 Mbit/s |
| Supply voltage, rated | 24 V DC |
| Supply voltage, permissible range | 20.4 V to 28.8 V DC |
| Load memory | Plug-in MMC, max. 2 Mbyte |
| Operating temperature | 0 °C to 60 °C |
| Product lifecycle | Product cancellation |
Applications
- PROFIBUS DP communication: Operates as a PROFIBUS DP device and supports PG/OP communication, S7 communication as server, and direct data exchange.
- Programming and diagnostics: Supports STEP 7 programming, status/control functions, forcing of inputs and outputs, and process diagnostic messages.
Key Features
- CPU and memory: IM151-7 CPU FO with 48 KB integrated work memory and plug-in MMC load memory up to 2 Mbyte.
- PROFIBUS DP interface: Integrated PROFIBUS DP interface as DP slave, with a fiber-optic interface and integrated RS 485 interface for programming.
- Communication: PROFIBUS DP transmission rate up to 12 Mbit/s, 11 connections, and PG/OP communication.
- Supply voltage: Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V DC.
- Diagnostics and programming: Diagnostic buffer with up to 100 entries; STEP 7 V5.1 or higher is supported.

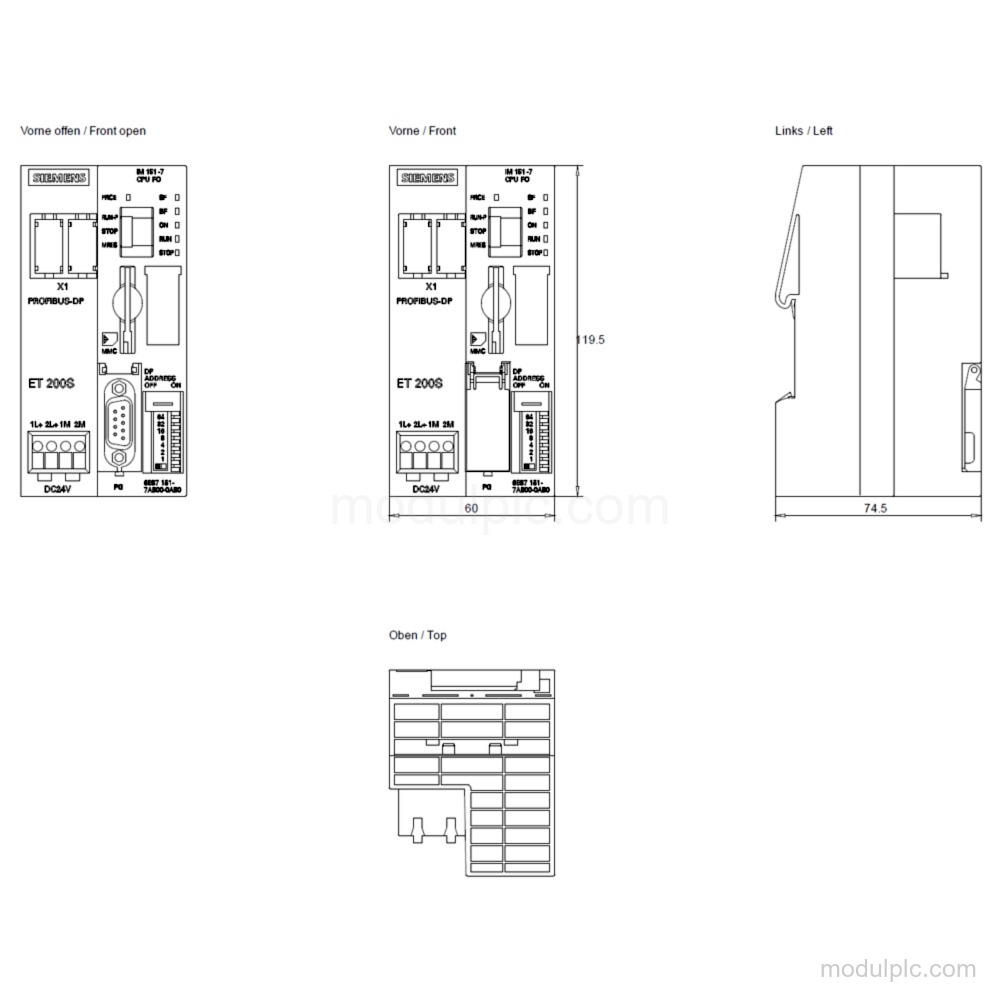

- Installation and dimensions: One mounting rail can be used; maximum mounting-rail length is 2 m. Dimensions are 60 mm wide, 119.5 mm high, and 75 mm deep.
Frequently Asked Questions
1. What is the function of Siemens 6ES7151-7AB00-0AB0?
It is a SIMATIC DP IM151-7 CPU FO spare part for ET200S and operates as a PROFIBUS DP slave.
2. Which interface does 6ES7151-7AB00-0AB0 provide?
It provides 1x PROFIBUS DP, with a fiber-optic interface and an integrated RS 485 interface for programming.
3. What supply voltage does this CPU use?
The rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
4. What memory is available?
It has 48 KB integrated work memory and plug-in MMC load memory up to 2 Mbyte.
5. Is the battery included?
It is without a battery.
