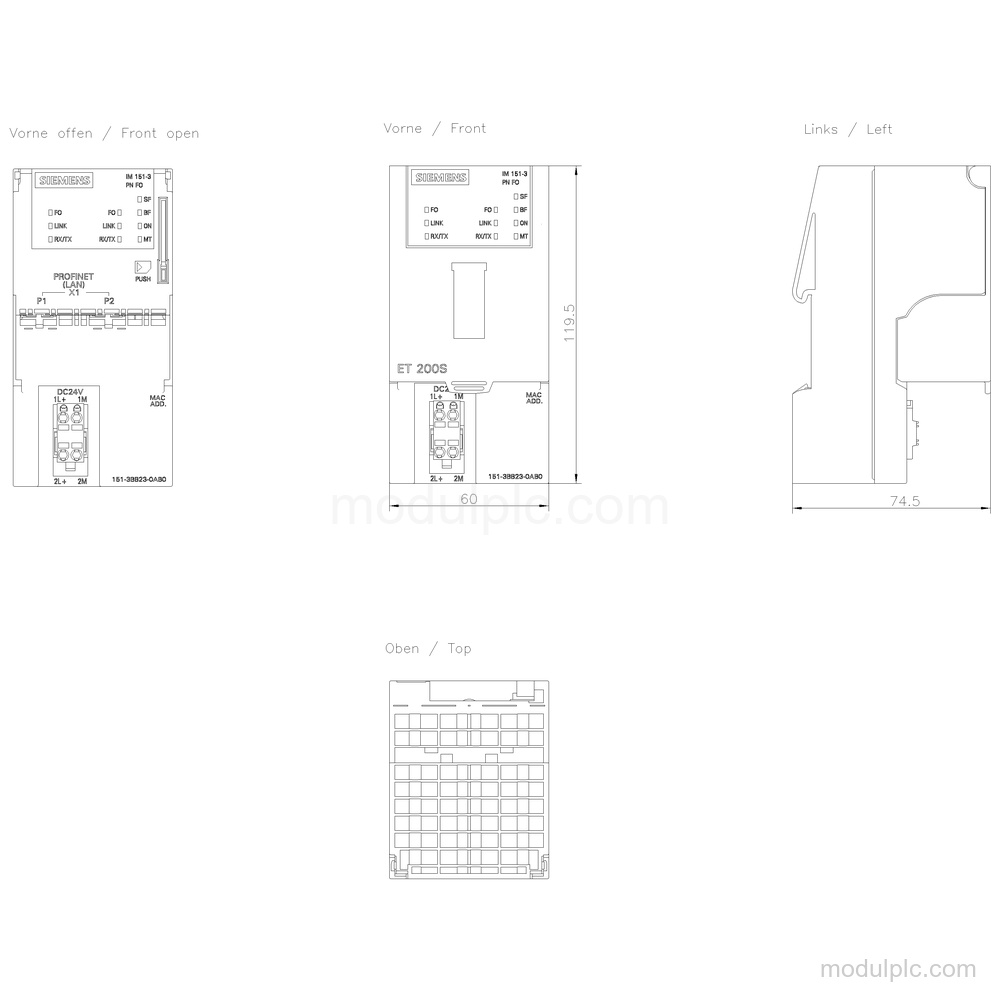

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 151-3 PN FO |
| Interfaces | 2 PROFINET FOC interfaces |
| Switch | Integrated 2-port switch |
| I/O module capacity | Up to 63 I/O modules |
| Transmission rate, max. | 100 Mbit/s |
| Input current, max. | 200 mA |
| Power loss, typ. | 5 W |
| Addressing volume, inputs | 256 byte |
| Addressing volume, outputs | 256 byte |
| Configuration control | Via dataset |
| Mains/voltage failure stored energy time | 20 ms |
Applications
- ET 200S PROFINET communication: Connects an ET 200S station through PROFINET IO using 2 PROFINET FOC interfaces.
Key Features
- ET 200S interface module: IM 151-3 PN FO interface module for ET 200S.
- PROFINET interfaces: 2 PROFINET FOC interfaces with an integrated 2-port switch.
- I/O module capacity: Supports up to 63 I/O modules and a maximum station width of 2 m.
- PROFINET services: Supports PROFINET IO, IRT, PROFIenergy, prioritized startup, and shared device.
- Communication protocols: Supports SNMP, LLDP, ping, ARP, and MRP; PROFIBUS DP is not supported.
- Diagnostics and supply data: Provides diagnostics, alarms, LINK, BF, SF, and 24 V supply LEDs; input current is 200 mA max. and typical power loss is 5 W.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7151-3BB23-0AB0?
It is an IM 151-3 PN FO interface module for ET 200S.
2. How many PROFINET interfaces does it have?
It has 2 PROFINET FOC interfaces and an integrated 2-port switch.
3. How many I/O modules can it support?
It supports up to 63 I/O modules, with a maximum station width of 2 m.
4. Which communication protocols are supported?
It supports PROFINET IO, SNMP, LLDP, ping, ARP, and MRP. PROFIBUS DP is not supported.
5. What diagnostic indications are provided?
It provides diagnostics and alarms, with LINK, BF, SF, and 24 V supply status LEDs.
