Product Overview
Technical Summary
| Parameter | Value |
|---|---|

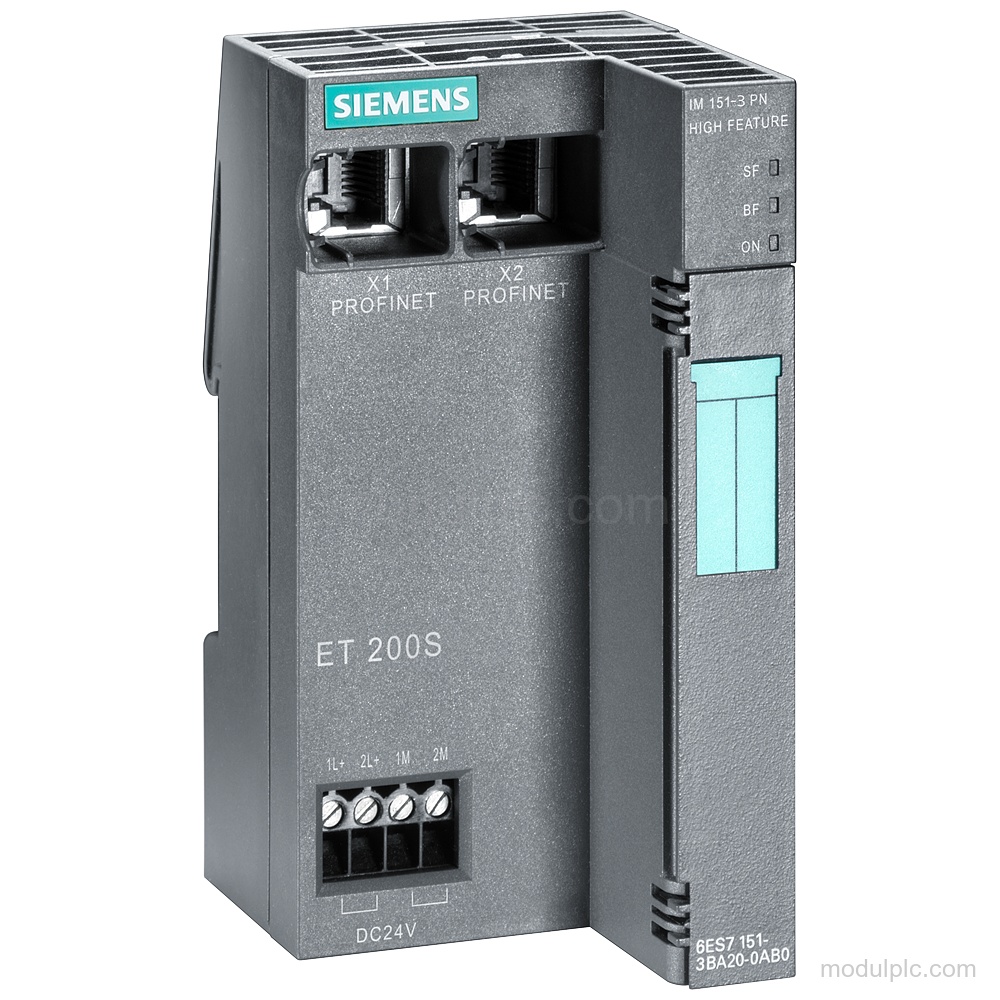

| Module type | IM 151-3 PN HS interface module |
| Transmission rate, max. | 100 Mbit/s |
| RJ45 ports | 2 |
| Connectable I/O modules, max. | 32 |
| Input current from supply voltage 1L+, max. | 200 mA |
| Typical power loss | 2 W |
| Mains/voltage failure stored energy time | 20 ms |
| Isolation tested with | 500 V |
| Potential separation between Ethernet and electronics | Yes |
| Product lifecycle | Product cancellation |
Applications
- I/O module connection: Connects up to 32 I/O modules for ET 200S transmission across up to 2 m width.
- PROFINET IO communication: Supports communication using PROFINET IO with a maximum transmission rate of 100 Mbit/s.
Key Features
- Interface module: IM 151-3 PN HS for ET 200S transmission.
- I/O module connection: Up to 32 I/O modules can be connected across up to 2 m width.
- Ethernet interfaces: 2 RJ45 ports with autonegotiation and autocrossing.
- Transmission rate: Maximum transmission rate: 100 Mbit/s.
- Diagnostics: LINK LED, BF bus-fault LED, SF group-error LED, 24 V supply LED, alarms, and diagnostics function.
- Electrical data: Input current from supply voltage 1L+, max.: 200 mA; typical power loss: 2 W; mains/voltage failure stored energy time: 20 ms.
Frequently Asked Questions
1. What is the function of Siemens 6ES7151-3BA60-0AB0?
It is an IM 151-3 PN HS interface module for ET 200S transmission.
2. How many I/O modules can this interface module connect?
Up to 32 I/O modules can be connected across up to 2 m width.
3. Which Ethernet connections are provided?
The module has 2 RJ45 ports and supports autonegotiation and autocrossing.
4. What diagnostics are available?
It has LINK, BF bus-fault, SF group-error, and 24 V supply LEDs, plus alarms and a diagnostics function.
5. What should be verified before inquiry?
Verify the exact model configuration because this product is a spare part and its lifecycle is Product cancellation.
