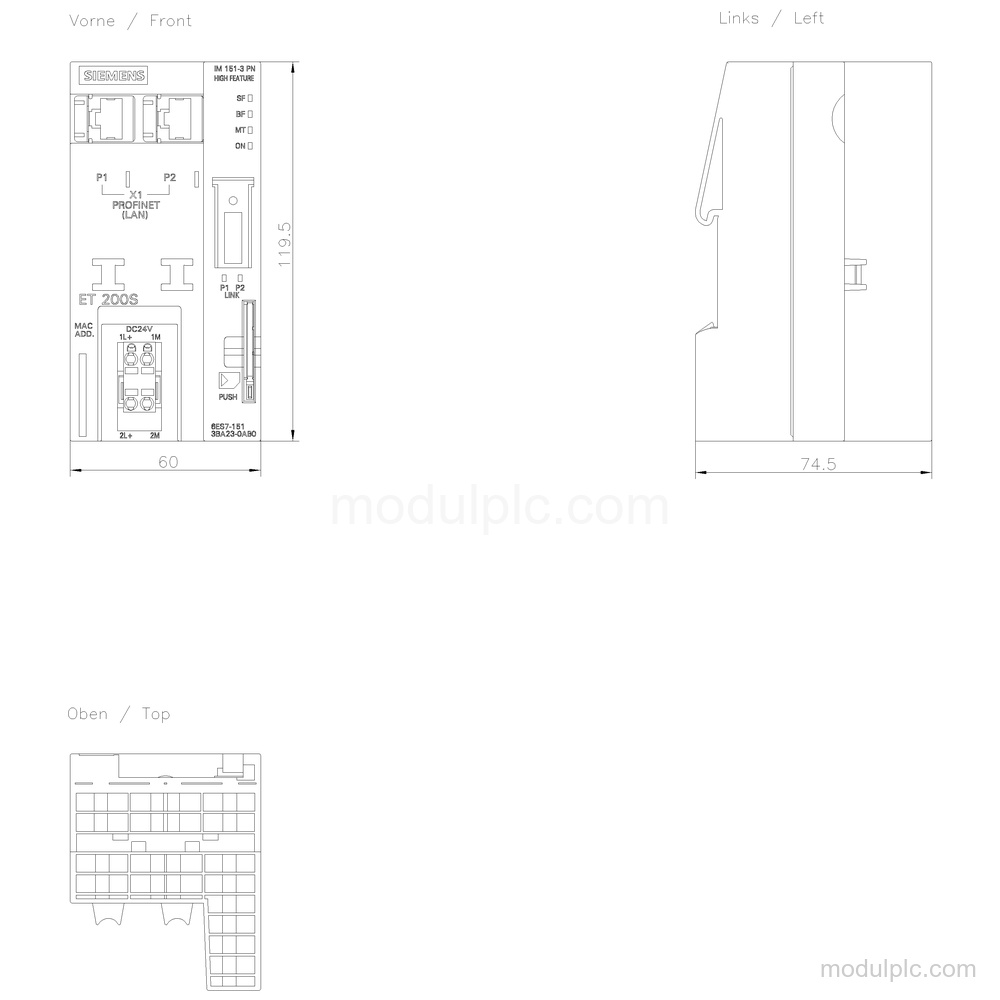

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 151-3 PN HF |
| Connected I/O modules | Up to 63 across a maximum 2 m width |
| Transmission rate, max. | 100 Mbit/s |
| Ethernet ports | 2 RJ45 ports |
| PROFINET IO | Yes |
| Input current from supply voltage 1L+, max. | 200 mA |
| Power loss, typ. | 3.3 W |
| Input addressing volume | 256 byte |
| Output addressing volume | 256 byte |
| Mains/voltage failure stored energy time | 20 ms |
| Isolation tested with | 500 V |
| Product lifecycle | Product cancellation |
Applications
- Distributed I/O connection: Connects up to 63 I/O modules across a maximum 2 m width.
- PROFINET IO communication: Supports PROFINET IO communication with a maximum transmission rate of 100 Mbit/s.
Key Features
- Interface module: Product type designation: IM 151-3 PN HF for SIMATIC DP.
- I/O module connection: Up to 63 I/O modules can be connected across a maximum 2 m width.
- Ethernet interfaces: 2 RJ45 ports provide bus connections and include a termination module.
- Transmission rate: Maximum transmission rate: 100 Mbit/s.
- PROFINET services and protocols: Supports PROFINET IO, IRT, PROFIenergy, prioritized startup, shared device, MRP, SNMP, and LLDP.
- Diagnostics and supply data: Diagnostics include alarms, a diagnostics function, LINK, BF, and SF LEDs. Input current from supply voltage 1L+ is maximum 200 mA; typical power loss is 3.3 W.
Frequently Asked Questions
1. What is the function of 6ES7151-3BA23-0AB0?
It is a SIMATIC DP IM 151-3 PN HF interface module for connecting up to 63 I/O modules across a maximum 2 m width.
2. How many Ethernet ports and what transmission rate does it have?
It has 2 RJ45 ports and a maximum transmission rate of 100 Mbit/s.
3. Which communication services and protocols are supported?
It supports PROFINET IO, IRT, PROFIenergy, prioritized startup, shared device, MRP, SNMP, and LLDP.
4. What diagnostics are available?
It has alarms, a diagnostics function, and LINK, BF, SF, and 24 V supply monitoring LEDs.
5. What should be verified before requesting a quote?
Verify the 6ES7151-3BA23-0AB0 order number, the 2 RJ45 connections, the termination module, and the required I/O module configuration.
