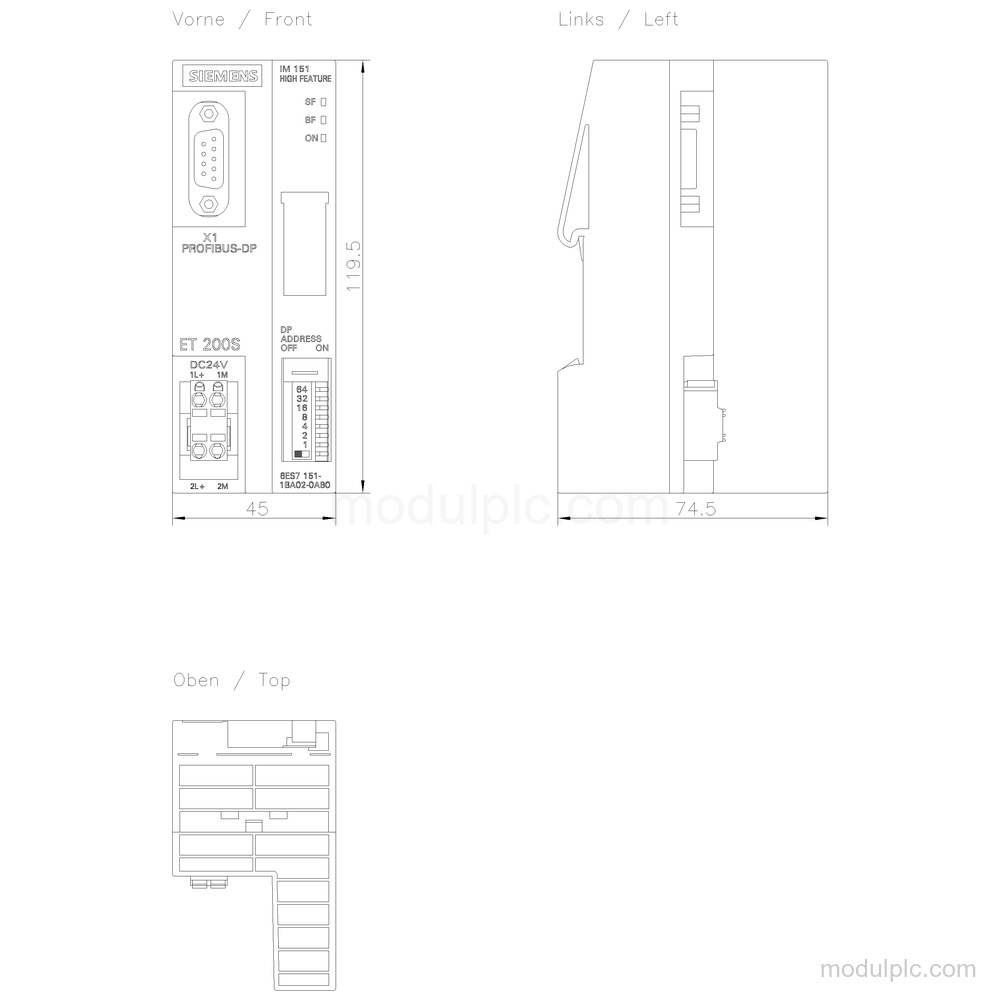

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 151-1 HF |
| Transmission interface | RS 485 |
| Maximum transmission rate | 12 Mbit/s |
| Protocol | PROFIBUS DP |
| Input addressing volume | 244 byte |
| Output addressing volume | 244 byte |
| Connected modules | Maximum 63 modules |
| Input current, max. | 200 mA from supply voltage 1L+ |
| Typical power loss | 3.3 W |
| Supply voltage failure stored energy time | 20 ms |
| Isolation test | 500 V DC |
Applications
- PROFIBUS DP communication: Provides PROFIBUS DP communication through an RS 485 interface.
- Direct data exchange: Supports direct data exchange for slave-to-slave communication.
- Synchronized data operation: Supports SYNC, FREEZE and isochronous mode functions.
Key Features
- PROFIBUS DP interface: Supports PROFIBUS DP with RS 485 transmission up to 12 Mbit/s.
- I/O addressing volume: Provides 244 bytes for inputs and 244 bytes for outputs.
- ET200S module connection: Up to 63 modules can be connected.
- Isochronous operation: Has isochronous mode, SYNC capability and FREEZE capability.
- Communication services: Supports direct data exchange for slave-to-slave communication.
- Diagnostics and supply indication: Provides alarms, a diagnostics function, red BF and SF LEDs, and a green 24 V voltage-supply ON LED.
Frequently Asked Questions
1. What is the function of the 6ES7151-1BA02-0AB0?
It is a SIMATIC DP IM151-1 HF interface module for ET200S.
2. Which protocol and transmission interface does it support?
It supports PROFIBUS DP through an RS 485 interface, with a maximum transmission rate of 12 Mbit/s.
3. What I/O addressing volume is available?
The module provides 244 byte for inputs and 244 byte for outputs.
4. How many modules can be connected?
A maximum of 63 modules can be connected.
