Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP PM-E power module for ET 200S |
| Rated load voltage L+ | 24 V DC |
| Current carrying capacity | 10 A max. up to 60 °C |
| Input current from load voltage L+ | 4 mA max. without load |
| Power loss | 0.1 W typ. |
| Diagnostics | Missing load voltage; PWR (green) and SF (red) LED indication |
| Potential separation | Between rated load voltage and backplane bus, and between power modules |
Key Features
- Power module for ET 200S: SIMATIC DP PM-E power module for ET 200S; spare part with 24 V DC and diagnostics.
- Load voltage: Rated load voltage L+: 24 V DC.
- Current carrying capacity: Maximum 10 A up to 60 °C.
- Protection and diagnostics: Reverse polarity protection is provided. Missing load voltage is diagnosed; PWR (green) and SF (red) LED indications are available.
- Electrical separation: Potential separation exists between rated load voltage and backplane bus, and between power modules. Isolation is tested with 500 V DC.

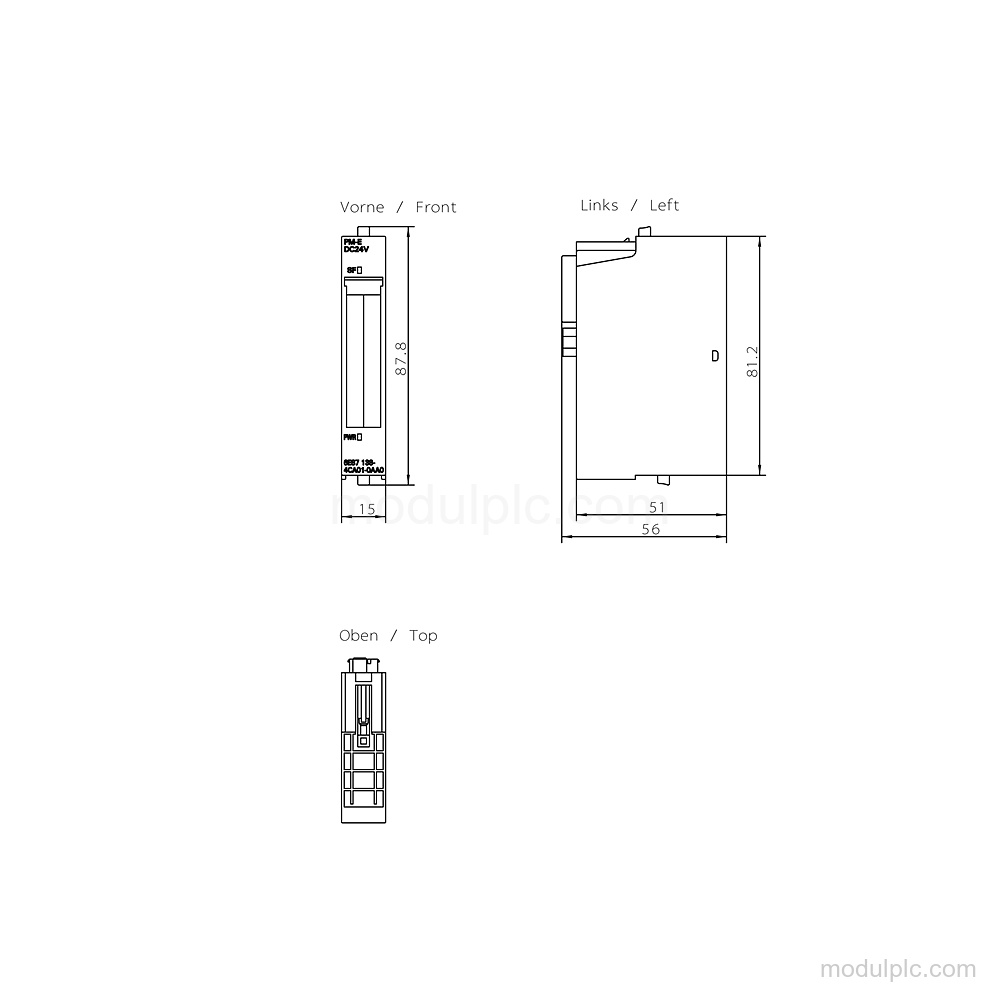

- Dimensions and weight: Width: 15 mm; height: 81 mm; depth: 52 mm; approximate weight: 35 g.
Frequently Asked Questions
1. What is the rated load voltage of the 6ES7138-4CA01-0AA0?
The rated load voltage L+ is 24 V DC.
2. What current can the module carry?
The current carrying capacity is maximum 10 A up to 60 °C.
3. What diagnostics does the module provide?
It diagnoses missing load voltage and provides PWR (green) and SF (red) LED indications.
4. Does the module include short-circuit protection?
No. Short-circuit protection is external, for example an automatic circuit breaker with tripping characteristic C.
