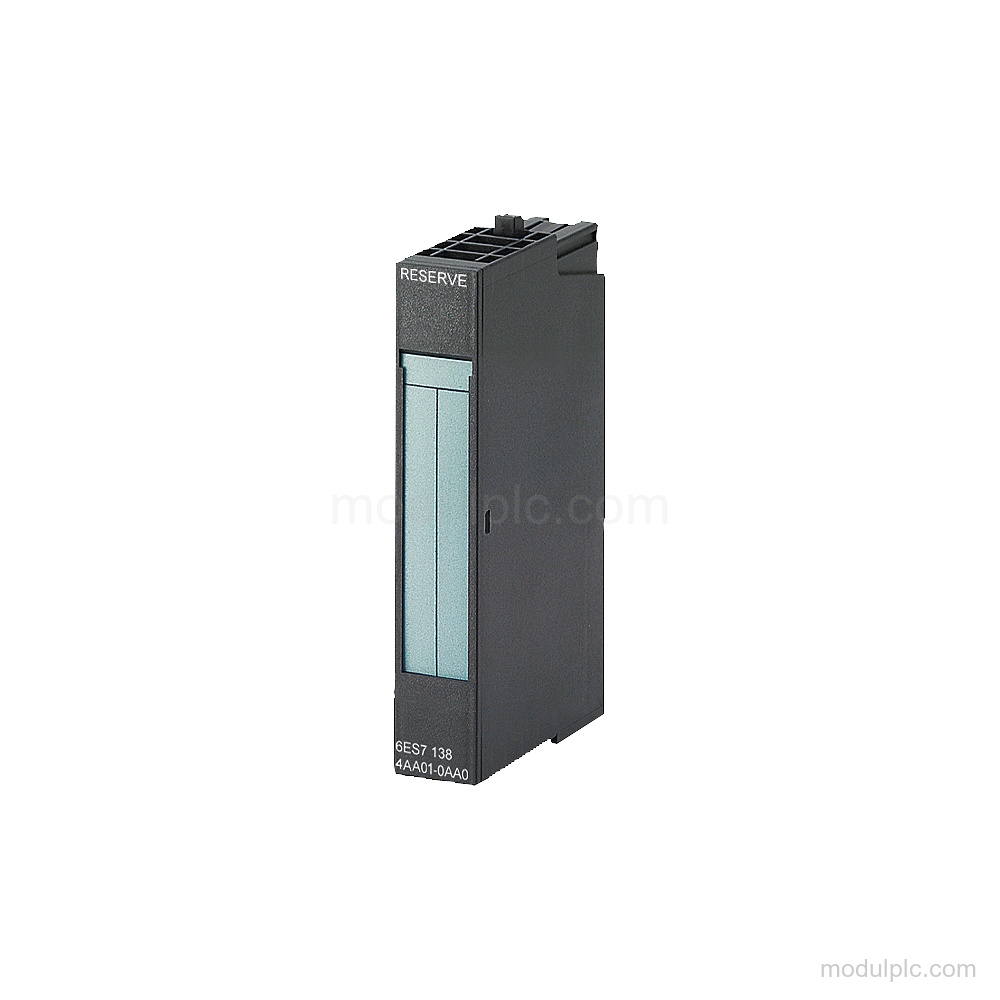

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Reserve module |
| Function | Location reservation for unused ET 200S slots |
| Packing quantity | 5 units per packing unit |
| Mounting | Wall mounting/direct mounting: Yes |
| Typical power loss | 0.025 W |
| Digital inputs | 0 |
| Lifecycle | Product cancellation |
Applications
- Unused-slot reservation: Reserves locations for unused ET 200S slots.
Key Features
- Reserve module for ET 200S: Provides location reservation for unused slots in ET 200S; the supplied description identifies it as a spare part.
- Packing quantity: 5 reserve modules are supplied per packing unit.

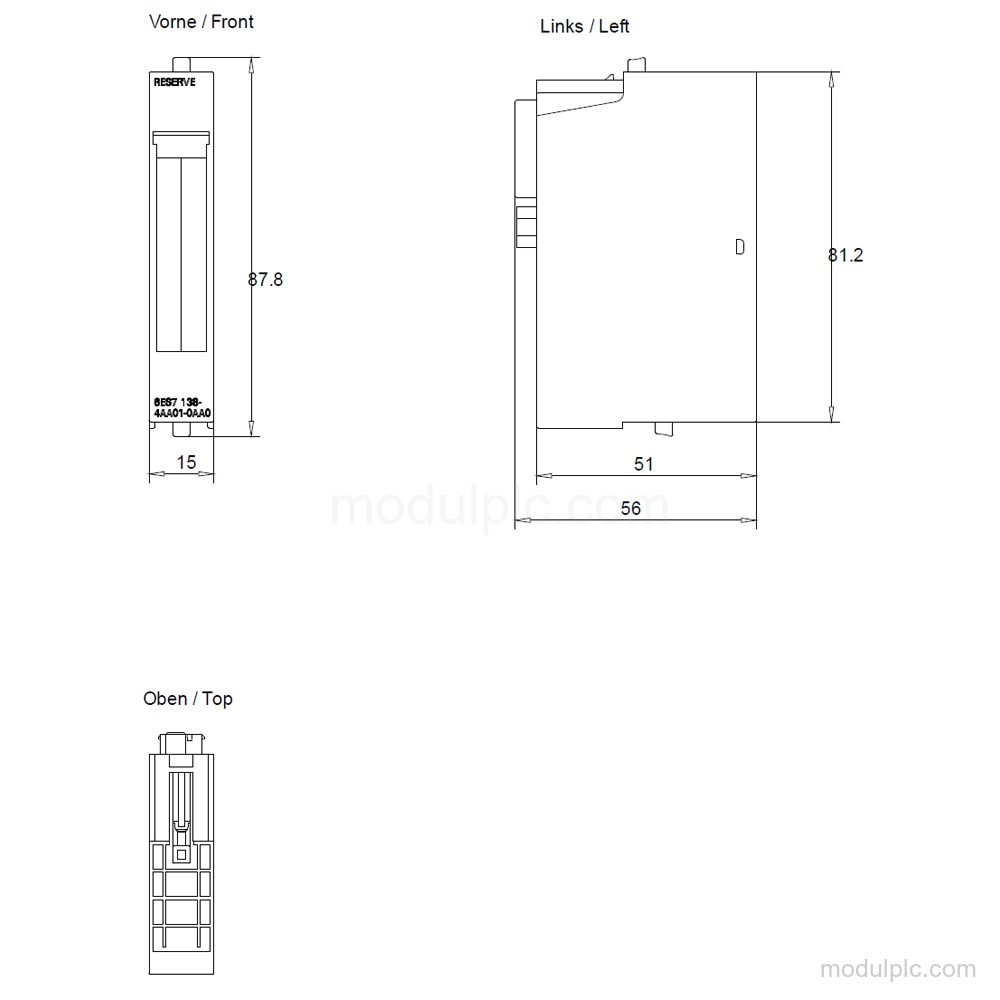

- Dimensions: Width: 15 mm; height: 81 mm; depth: 52 mm.
- Mounting: Wall mounting/direct mounting: Yes.
- Power loss: Typical power loss: 0.025 W.
- Product lifecycle: Product cancellation.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7138-4AA01-0AA0?
It is a SIMATIC DP reserve module for location reservation of unused ET 200S slots.
2. How many reserve modules are included per packing unit?
The packing unit contains 5 reserve modules.
3. What are the dimensions of the reserve module?
The module is 15 mm wide, 81 mm high, and 52 mm deep.
4. Can the module be mounted directly?
Yes. Wall mounting/direct mounting is supported.
5. What should be verified before inquiry?
Verify the exact 6ES7138-4AA01-0AA0 model, the 5-unit packing quantity, and the required slot-reservation configuration.
