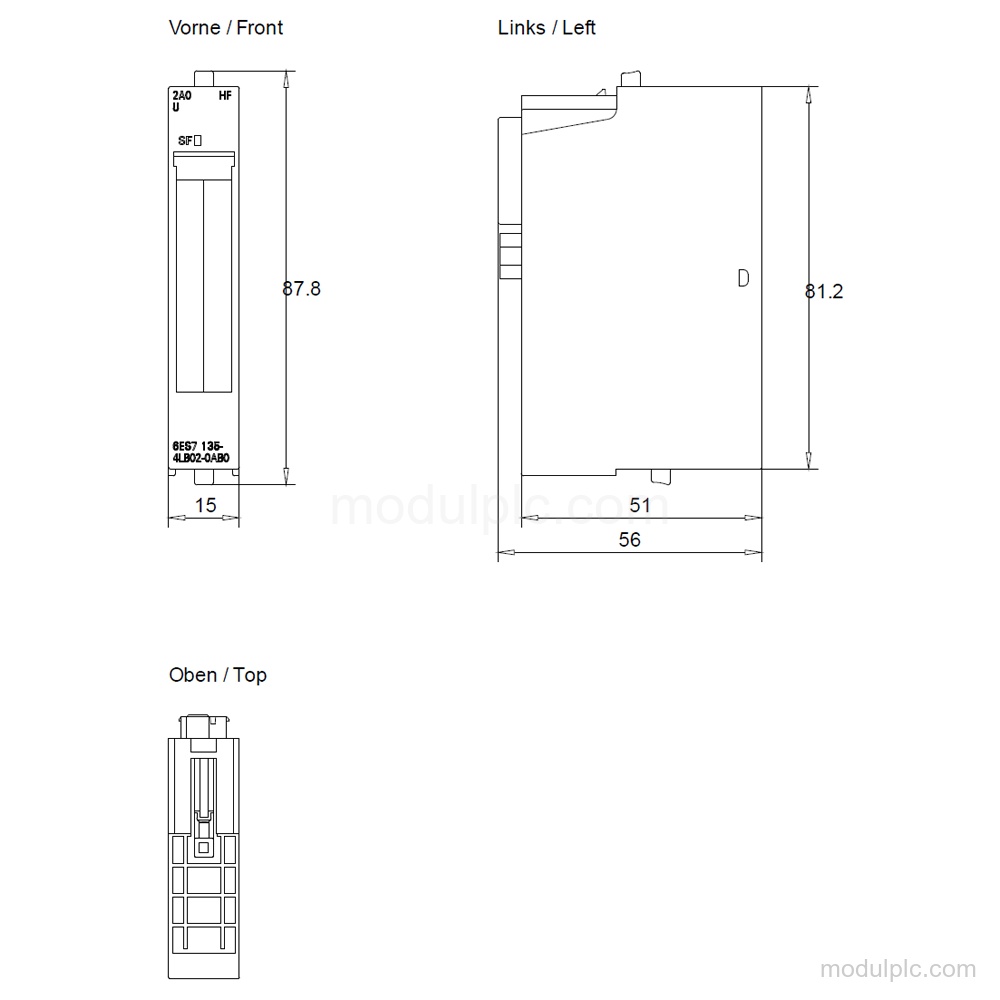

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog output channels | 2 |
| Voltage output ranges | 1 V to 5 V; -5 V to +5 V; -10 V to +10 V |
| Resolution with overrange | 16 bit; 15 bit + sign |
| Cycle time, all channels | max. 0.5 ms; At max. 0.5 μF |
| Rated load voltage L+ | 24 V |
| Voltage output short-circuit current | max. 25 mA |
| Load impedance with voltage outputs | min. 1 kΩ |
| Product lifecycle | Product cancellation |
Applications
- Voltage output to actuators: Provides voltage outputs for two-wire or four-wire actuator connections.
Key Features
- Analog voltage outputs: Has 2 analog voltage outputs with 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V output ranges.
- Output resolution: Provides up to 16 bit resolution including sign, with 15 bit plus sign.
- Cycle time: Cycle time for all channels is max. 0.5 ms at max. 0.5 μF.
- Supply and protection: Has 24 V rated load voltage, reverse polarity protection, and voltage-output short-circuit protection.
- Actuator connection: Supports two-wire and four-wire connections for voltage-output actuators.
- Diagnostics and isolation: Provides readable diagnostic information, short-circuit and group-error diagnostics, a red group-error SF LED, and isolation between channels and the backplane bus.
Frequently Asked Questions
1. What analog output ranges does 6ES7135-4LB02-0AB0 support?
It supports 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V voltage output ranges.
2. How many analog channels does the module have?
It has 2 analog voltage outputs.
3. What connections are supported for the voltage outputs?
It supports two-wire and four-wire connections for voltage-output actuators.
4. What supply voltage does the module use?
The rated load voltage L+ is 24 V.
