Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module context | SIMATIC DP electronics module for ET 200S |
| Analog outputs | 2 |
| Supported current ranges | -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | 16 bit |
| Maximum cycle time, all channels | 250 μs |
| Load voltage L+ | 24 V DC, rated value |
| Maximum load impedance | 500 Ω, with current outputs in the rated output range |
| Actuator connection | Two-wire connection for current output |
| Diagnostics | Diagnostic information readable; wire break and group error supported |
| Product lifecycle | Product cancellation |
Applications
- Analog current output to actuators: The module provides analog current outputs for actuators through two-wire connections.
Key Features
- Analog current outputs: 2 analog outputs support -20 mA to +20 mA and 4 mA to 20 mA ranges.
- 16-bit resolution: Resolution with overrange, including sign, is 16 bit.
- Fast cycle time: The maximum cycle time for all channels is 250 μs.
- Actuator connection: Current outputs support two-wire connection; four-wire connection is not supported.
- Diagnostics and SF LED: Diagnostic information, wire-break detection, group error detection, and group error SF (red) LED indication are supported.
- Electrical isolation: The analog outputs are isolated from the backplane bus and load voltage L+; the channels are not isolated from each other.
Frequently Asked Questions
1. How many analog outputs does Siemens 6ES7135-4GB52-0AB0 have?
It has 2 analog current outputs.
2. Which current ranges does 6ES7135-4GB52-0AB0 support?
It supports -20 mA to +20 mA and 4 mA to 20 mA.
3. What resolution and cycle time does the module provide?
Resolution is 16 bit, and the maximum cycle time for all channels is 250 μs.
4. Which actuator connection is supported?
Two-wire connection for current output is supported. Four-wire connection is not supported.
5. What should be verified before requesting a quote?

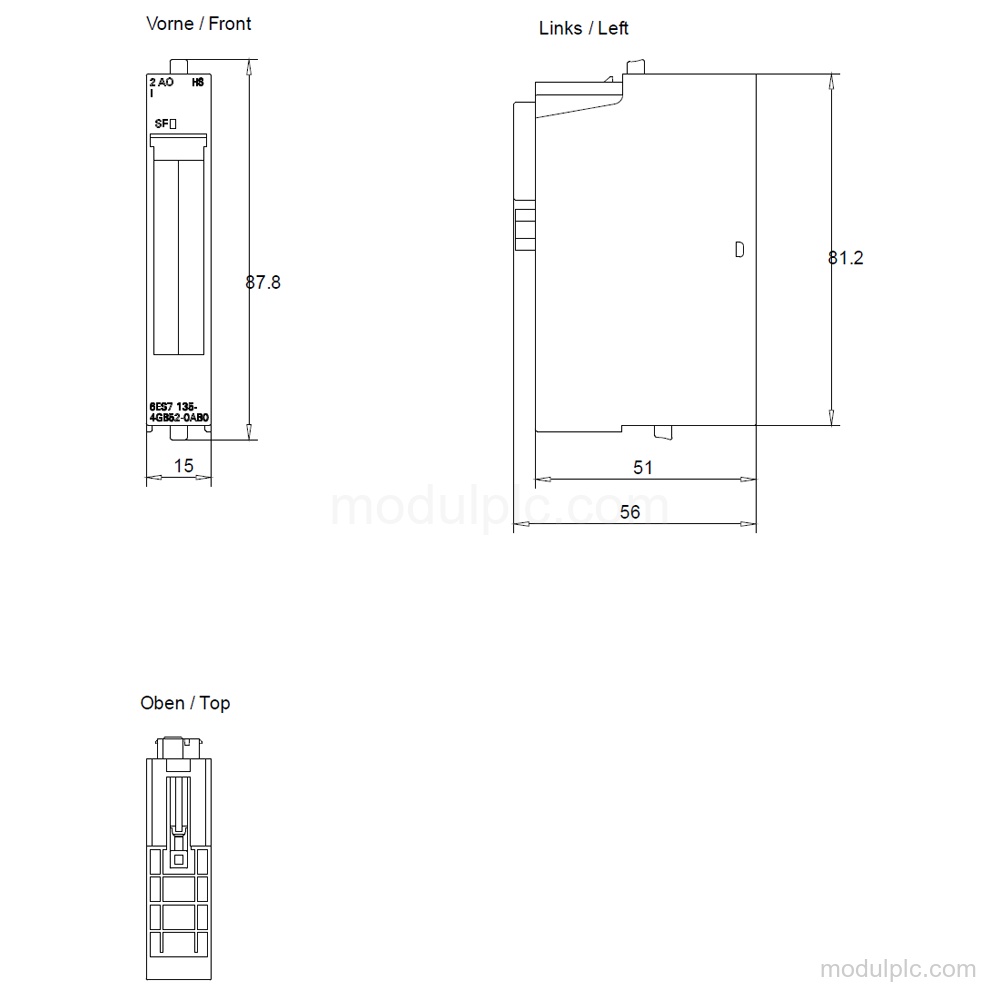

Verify the 24 V DC load voltage, 500 Ω maximum load impedance, required current range, two-wire actuator connection, and installation dimensions of 15 mm × 81 mm × 52 mm.
