Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog output channels | 2 |
| Current output ranges | -20 mA to +20 mA; 4 mA to 20 mA |
| Cycle time, all channels | 1.5 ms maximum |
| Resolution with overrange | 14 bit including sign maximum; 4 to 20 mA: 13 bit; ±20 mA: 14 bit |
| Load voltage L+ | 24 V DC rated, from power module |
| Actuator connection | Two-wire current output supported; four-wire current output not supported |
| Load impedance | 500 Ω maximum with current outputs; 1 mH maximum inductive load |
| Diagnostics | Diagnostic information, wire-break detection, and group error |
Applications
- Analog output control: Controls actuators through supported two-wire current-output connections.
Key Features
- Analog current outputs: 2 analog outputs support -20 mA to +20 mA and 4 mA to 20 mA output ranges.
- Resolution: Maximum resolution with overrange is 14 bit including sign; 4 to 20 mA provides 13 bit and ±20 mA provides 14 bit.
- Supply and current: Load voltage L+ is rated at 24 V DC from the power module. Input current is maximum 150 mA from load voltage L+ without load.
- Diagnostics: Diagnostic information and wire-break detection are available. Group error is indicated by a red SF LED.
- Actuator connection: Two-wire connection for current output is supported; four-wire connection is not supported.

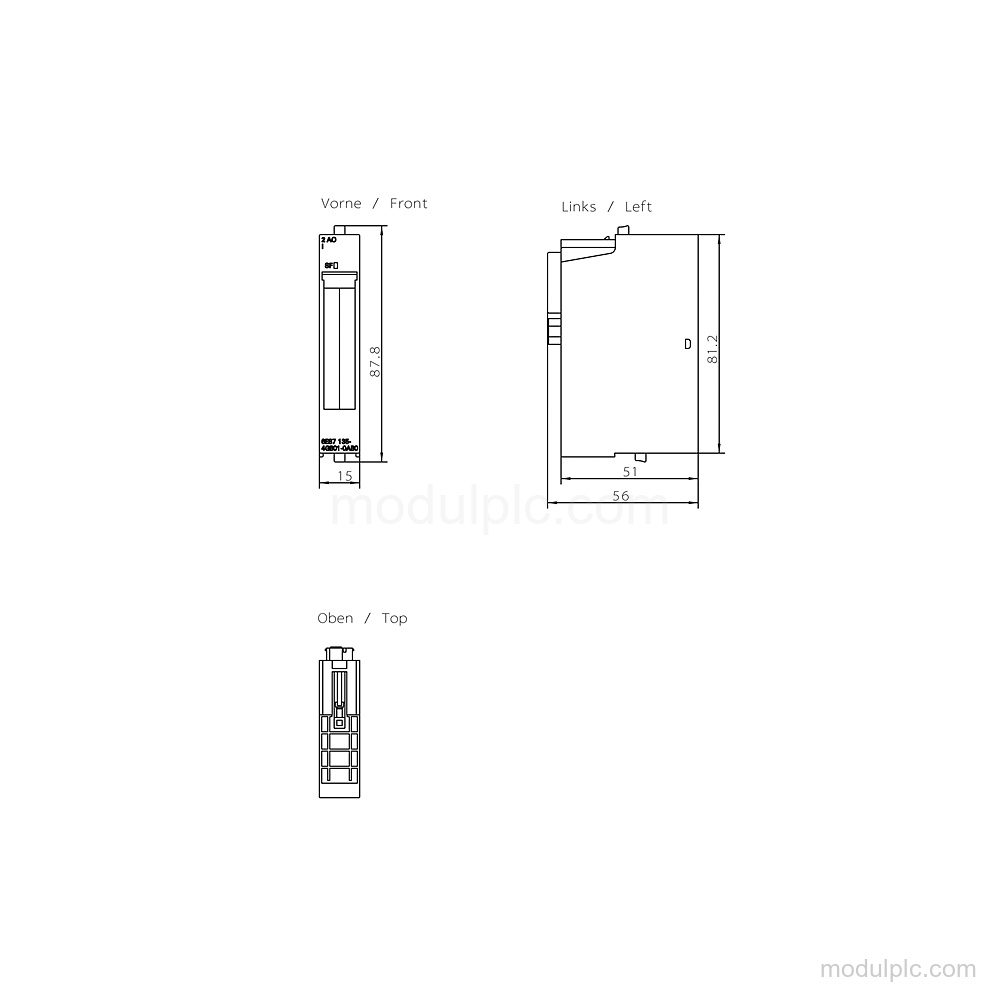

- Dimensions and isolation: The module is 15 mm wide, 81 mm high, and 52 mm deep. Analog outputs are isolated from the backplane bus and load voltage L+.
Frequently Asked Questions
1. How many analog outputs does the 6ES7135-4GB01-0AB0 have?
It has 2 analog outputs.
2. Which current output ranges are supported?
It supports -20 mA to +20 mA and 4 mA to 20 mA.
3. What resolution does the module provide?
Maximum resolution with overrange is 14 bit including sign; 4 to 20 mA provides 13 bit and ±20 mA provides 14 bit.
4. Which actuator connection is supported?
Two-wire connection for current output is supported. Four-wire connection is not supported.
5. What diagnostics are available?
Diagnostic information and wire-break detection are available, with group error indicated by a red SF LED.
