Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP electronics module for ET 200S |
| Analog output channels | 2 |
| Supported voltage ranges | 1 V to 5 V; -5 V to +5 V; -10 V to +10 V |
| Resolution | 16 bit with overrange including sign |
| Cycle time, all channels | Max. 0.25 ms |
| Load voltage L+ | 24 V DC from power module |
| Voltage-output short-circuit current | Max. 25 mA |
| Minimum load impedance | 1 kΩ |
| Actuator connection | Two-wire or four-wire voltage-output connection |
Applications
- Actuator voltage output: Provides voltage outputs for actuator connections using two-wire or four-wire connection.
Key Features
- Analog voltage outputs: Has 2 analog voltage outputs with 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V output ranges.
- Resolution and cycle time: Provides up to 16 bit resolution with overrange including sign; cycle time for all channels is max. 0.25 ms.
- Supply and protection: Uses 24 V DC load voltage from the power module, with reverse polarity protection and voltage-output short-circuit protection.
- Actuator connections: Supports two-wire voltage-output connection without compensation of line resistances and four-wire voltage-output connection.
- Diagnostics and isolation: Provides readable diagnostic information, short-circuit and group-error diagnostics, a red group-error SF LED, and isolation between channels and the backplane bus.

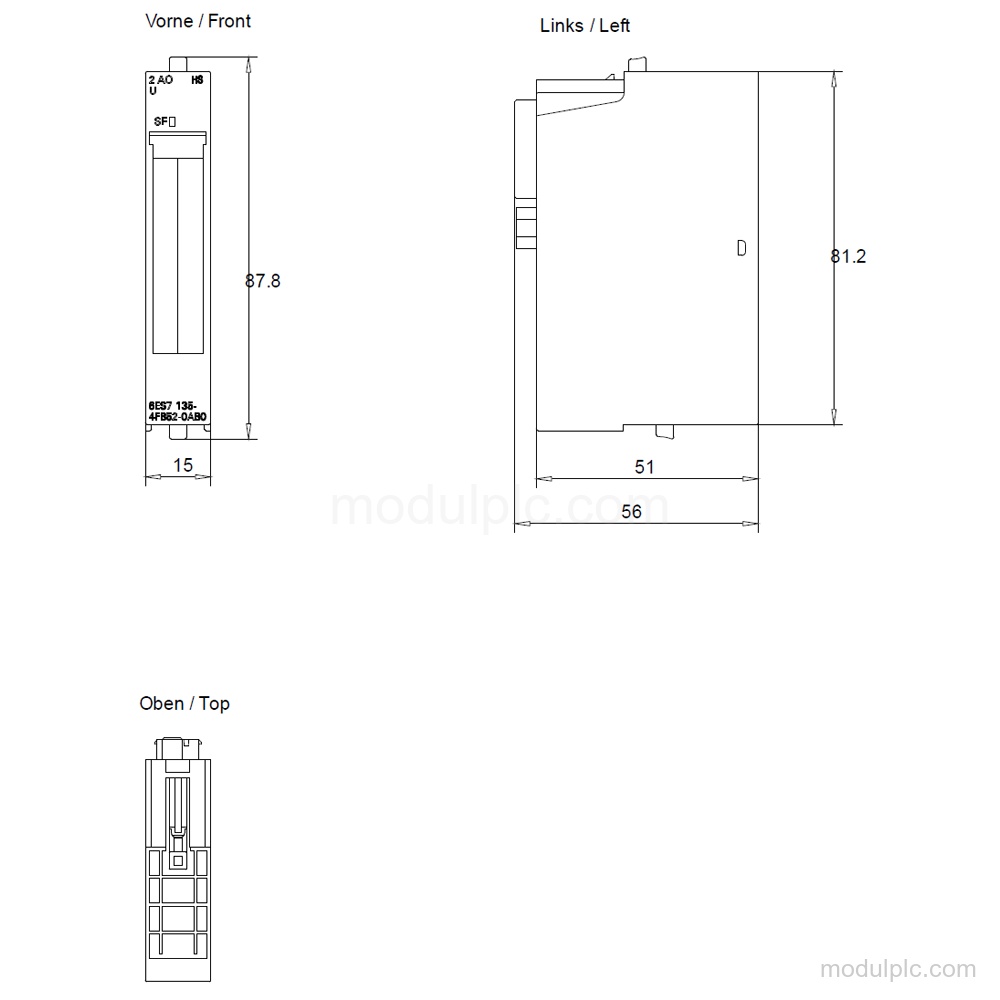

- Compact dimensions: Has a 15 mm width, 81 mm height, 52 mm depth, and approx. 40 g weight.
Frequently Asked Questions
1. How many analog outputs does the Siemens 6ES7135-4FB52-0AB0 have?
It has 2 analog voltage outputs.
2. Which voltage ranges does the 6ES7135-4FB52-0AB0 support?
It supports 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V.
3. What resolution and cycle time does this module provide?
It provides up to 16 bit resolution with overrange including sign, and the cycle time for all channels is max. 0.25 ms.
4. How are actuators connected to this module?
It supports two-wire voltage-output connection without compensation of line resistances and four-wire voltage-output connection.
5. What should be verified before requesting a quote for this configuration?
Verify the 24 V DC load voltage from the power module, the required voltage range, actuator connection, and 15 mm module width.
