Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog output channels | 2 |
| Output voltage ranges | 1 V to 5 V; -10 V to +10 V |
| Resolution with overrange | 14 bit; 1 to 5 V: 12 bit, ±10 V: 13 bit + sign |
| Cycle time, all channels, max. | 1.5 ms |
| Rated load voltage | 24 V DC; From power module |
| Minimum load impedance | 1 kΩ |
| Short-circuit current, max. | 25 mA |
| Connection options | Two-wire without compensation of the line resistances; four-wire |
| Diagnostics | Readable diagnostic information; short-circuit; group error; red SF LED |
Applications
- Voltage output control: Provides analog voltage outputs for connected actuators through two-wire or four-wire connections.
Key Features
- Analog voltage outputs: Has 2 analog outputs with 1 V to 5 V and -10 V to +10 V output ranges.
- Output protection: Voltage outputs have short-circuit protection and a maximum short-circuit current of 25 mA.
- Load and cable limits: Minimum load impedance is 1 kΩ, maximum capacitive load is 1 μF, and shielded cable length is up to 200 m.
- Connection options: Supports two-wire actuator connection without compensation of line resistances and four-wire actuator connection.
- Supply and isolation: Rated load voltage is 24 V DC from the power module; analog outputs are isolated from the backplane bus and load voltage L+.

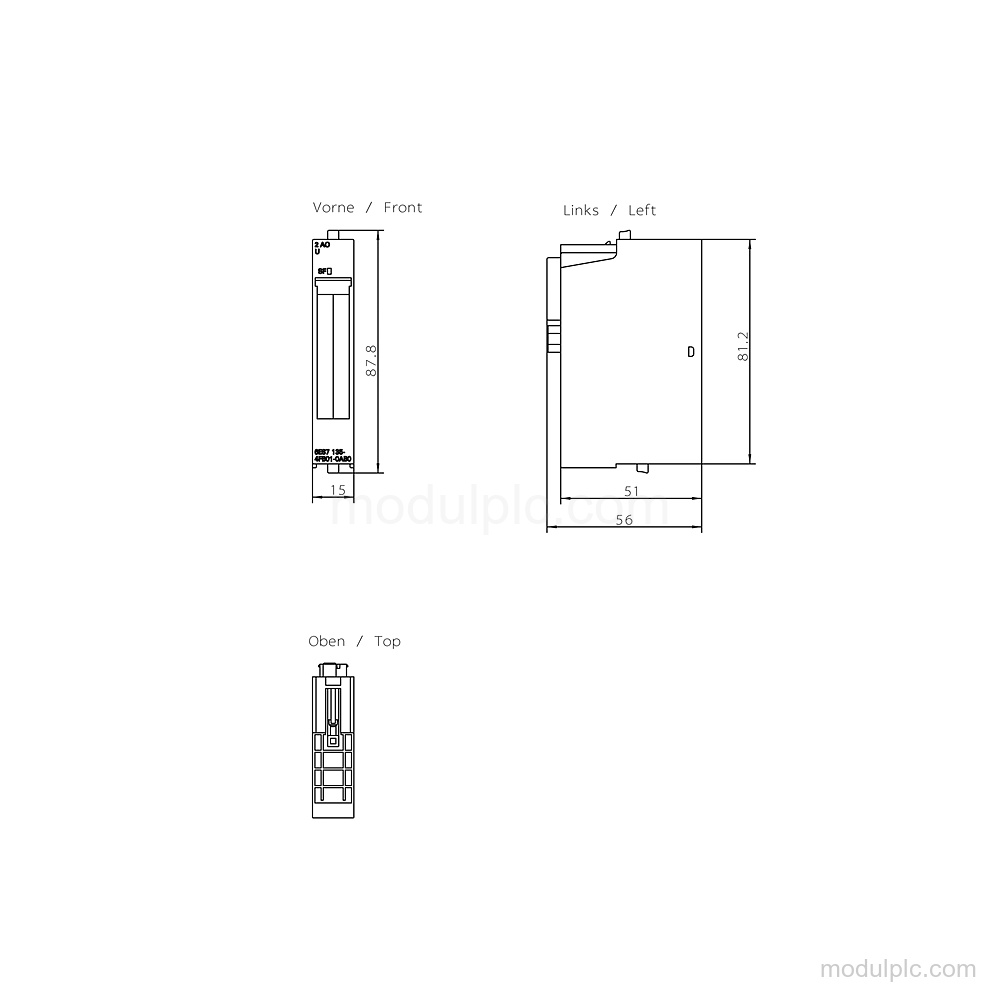

- Diagnostics and dimensions: Provides readable diagnostic information, short-circuit and group error diagnostics with a red SF LED; dimensions are 15 mm × 81 mm × 52 mm.
Frequently Asked Questions
1. How many analog outputs does 6ES7135-4FB01-0AB0 have?
It has 2 analog voltage outputs.
2. Which voltage ranges does this module support?
It supports 1 V to 5 V and -10 V to +10 V output ranges.
3. What actuator connections are available?
It supports two-wire actuator connection without compensation of the line resistances and four-wire actuator connection.
4. What supply voltage does the module use?
The rated load voltage is 24 V DC from the power module.
