Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 2 RTD inputs |
| Supported sensor connections | 2-wire, 3-wire, and 4-wire |
| Rated load voltage L+ | 24 V DC from power module |
| Resolution with overrange | Up to 16 bit; 15 bit + sign for specified RTD and Cu10 ranges |
| Resistance-type transmitter accuracy | ±0.1% |
| Diagnostics | Wire break, group error, overflow/underflow |
| Isolation | Channels isolated from backplane bus and load voltage L+; not isolated from each other |
| Product lifecycle | Product cancellation |
Applications
- Resistance and temperature measurement: Measures resistance-type transmitters and resistance thermometers, including Pt, Ni, and Cu10 sensors.
- Sensor signal acquisition: Acquires RTD and resistance signals through 2-wire, 3-wire, or 4-wire sensor connections.
Key Features
- RTD input channels: Has 2 analog RTD inputs for resistance thermometers and resistance-type transmitters.
- Sensor connections: Supports 2-wire, 3-wire with internal line-resistance compensation, and 4-wire connections.
- Resolution and accuracy: Provides up to 16 bit resolution with overrange; Pt100, Ni100, Ni120, Pt200, Ni200, Pt500, Ni500, Pt1000, Ni1000, and Cu10 use 15 bit + sign. Accuracy is ±0.1% for resistance-type transmitters.
- Supply and isolation: Uses rated load voltage L+ of 24 V DC from the power module, with reverse polarity protection. The channels are isolated from the backplane bus and load voltage L+, but not from each other.

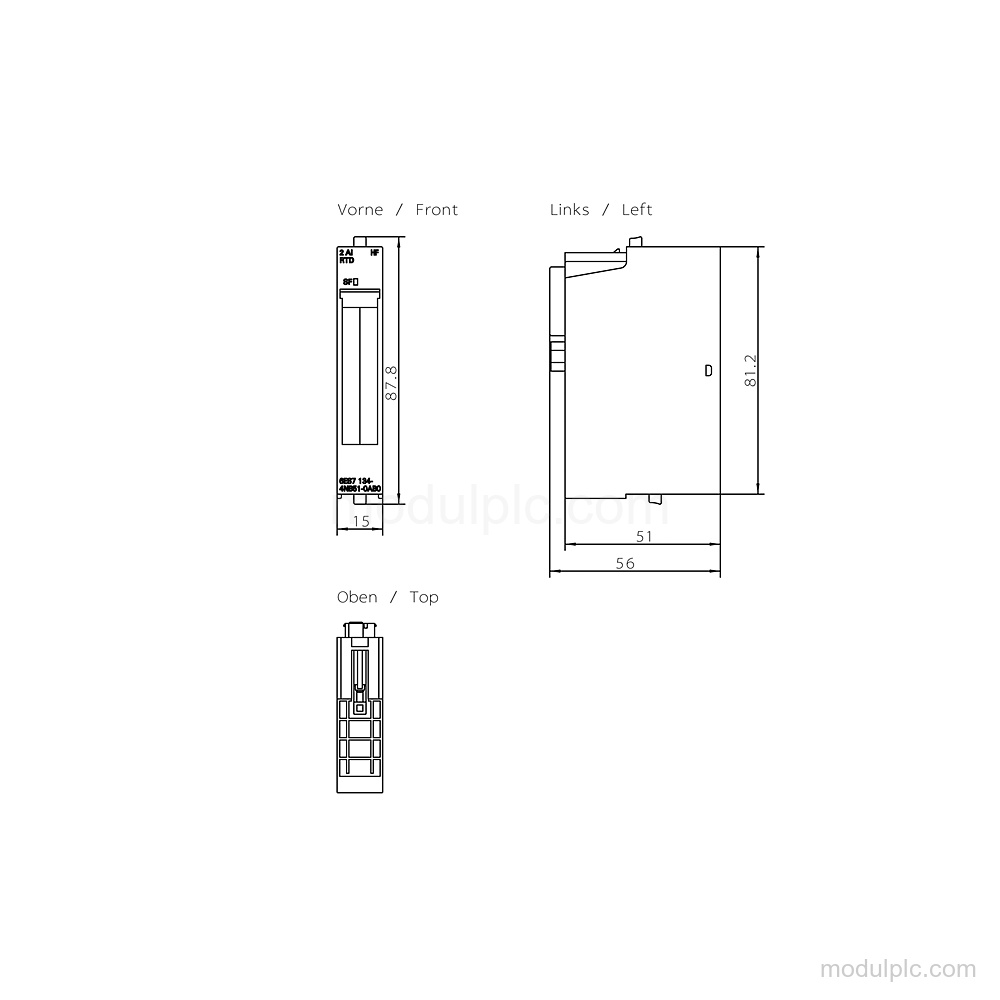

- Diagnostics and construction: Provides wire-break, group-error, and overflow/underflow diagnostics with a red SF LED. Width is 15 mm; dimensions are 15 mm × 81 mm × 52 mm and weight is approximately 40 g.
Frequently Asked Questions
1. How many RTD inputs does the 6ES7134-4NB51-0AB0 have?
It has 2 analog RTD inputs.
2. Which sensor connection types are supported?
It supports 2-wire, 3-wire with internal line-resistance compensation, and 4-wire connections.
3. What supply does the module use?
The rated load voltage L+ is 24 V DC from the power module, with reverse polarity protection.
4. What diagnostics are available?
Wire-break, group-error, and overflow/underflow diagnostics are available, with group error shown by a red SF LED.
5. What are the module dimensions?
The module is 15 mm wide and measures 15 mm × 81 mm × 52 mm; its approximate weight is 40 g.
