Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP electronics module for ET200S |
| Analog inputs | 2 |
| Supported thermocouples | Type B, C, E, J, K, L, N, R, S, T |
| Voltage input range | -80 mV to +80 mV |
| Resolution with overrange | 16 bit including sign |
| Internal temperature compensation | Yes; possible with TM-E15S24-AT, TM-E15C24-AT |
| Rated load voltage L+ | 24 V; From power module |
| Conversion time | 66 ms; 66 / 80 ms; additional conversion time for diagnostic wire break test |
| Product lifecycle | Product cancellation |
Applications
- Thermocouple temperature measurement: Measures temperature using supported B, C, E, J, K, L, N, R, S, and T thermocouples.
Key Features
- Thermocouple inputs: Has 2 analog inputs supporting thermocouple types B, C, E, J, K, L, N, R, S, and T.
- Input ranges: Supports -80 mV to +80 mV and thermocouple input ranges; input resistance is 1 MΩ.
- Temperature compensation: Has internal temperature compensation; external compensation is possible with one external compensating box per channel.
- Conversion and resolution: Provides 16 bit resolution with overrange including sign; conversion time is 66 ms; 66 / 80 ms with additional conversion time for diagnostic wire break test.
- Diagnostics and isolation: Has wire-break diagnostics for thermocouples, group error, overflow/underflow, red group error SF LED, and 500 V DC tested isolation.

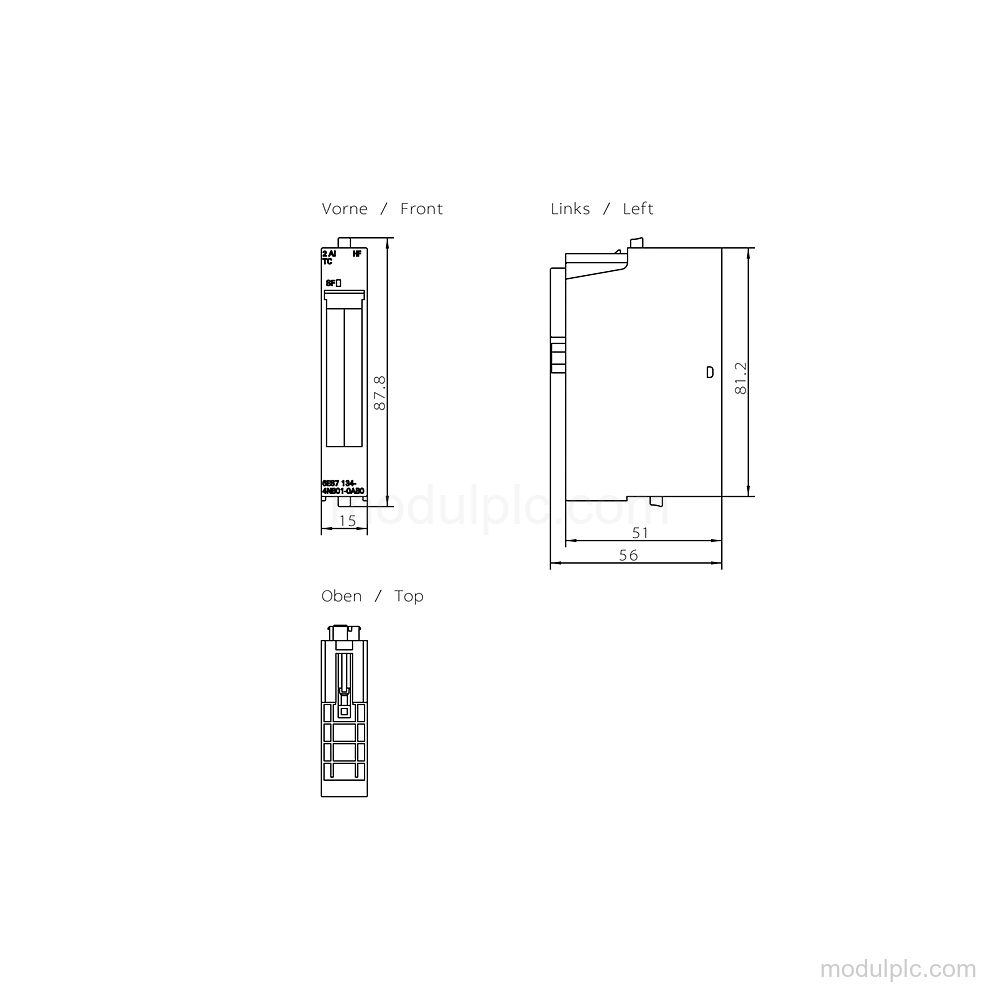

- Supply and dimensions: Rated load voltage L+ is 24 V from the power module; width is 15 mm, height 81 mm, depth 52 mm, and weight is approximately 40 g.
Frequently Asked Questions
1. How many analog inputs does 6ES7134-4NB01-0AB0 have?
It has 2 analog inputs.
2. Which thermocouple types does the module support?
It supports Type B, C, E, J, K, L, N, R, S, and T thermocouples.
3. Does it provide internal temperature compensation?
Yes; internal temperature compensation is possible with TM-E15S24-AT and TM-E15C24-AT.
4. What supply voltage does the module use?
The rated load voltage L+ is 24 V from the power module.
5. What should be verified before inquiry?
Verify the required thermocouple type, compensation arrangement, shielded cable length, and the Product cancellation status.
