Product Overview
Technical Summary
| Parameter | Value |
|---|---|

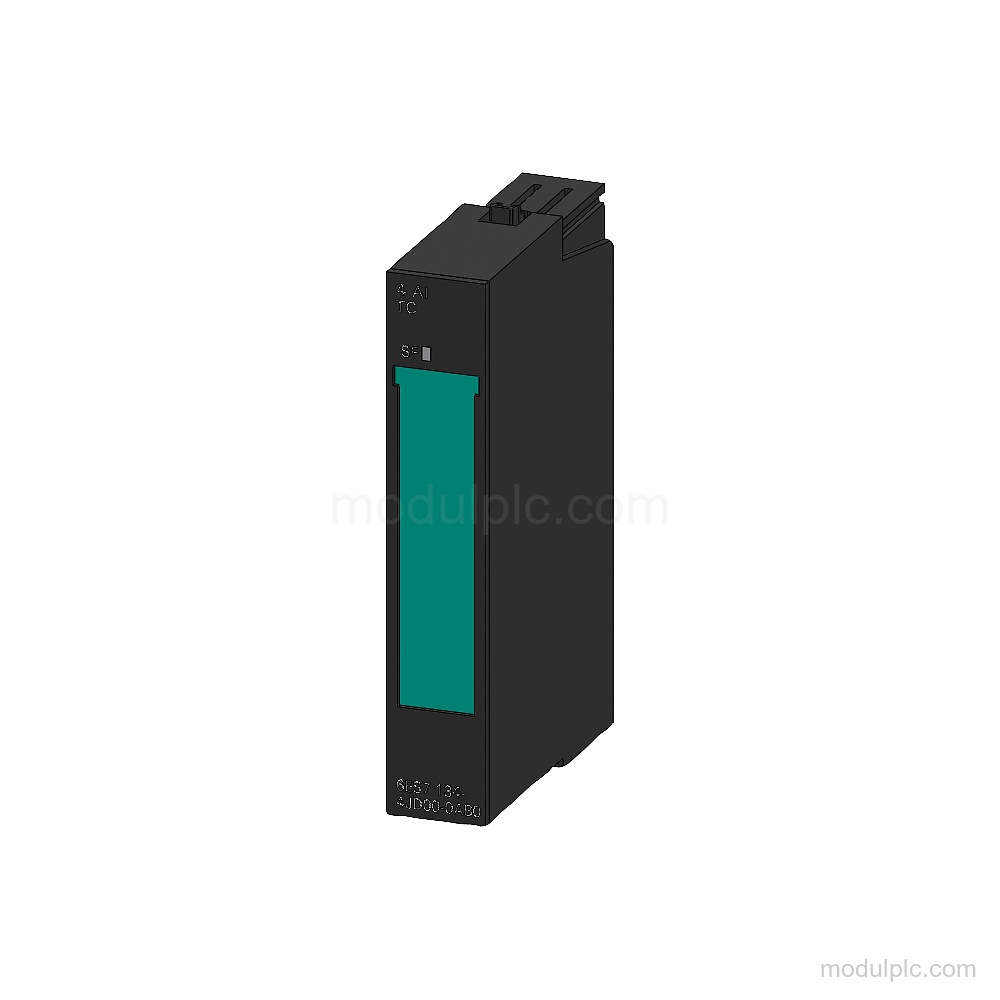

| Module type | SIMATIC DP electronics module for ET 200S |
| Analog inputs | 4 thermocouple inputs |
| Rated voltage input range | -80 mV to +80 mV |
| Supported thermocouple types | B, E, J, K, L, N, R, S, T |
| Resolution with overrange | 16 bit; 15 bit + sign |
| Load voltage L+ | 24 V DC from the power module |
| Integration time | 16,7 / 20 ms, parameterizable |
| Conversion time per channel | 65 ms; 55 / 65 ms with an additional 20 ms on activated wire-break test |
| Diagnostics | Wire break, group error, overflow/underflow, diagnostic information, red SF LED |
| External temperature compensation | Possible, one external compensating box per channel |
| Isolation | Between channels and backplane bus; between channels and load voltage L+ |
Applications
- Thermocouple signal acquisition: Measures thermocouple signals using supported types B, E, J, K, L, N, R, S, and T.
Key Features
- Thermocouple analog inputs: 4 analog inputs support thermocouple types B, E, J, K, L, N, R, S, and T.
- Input range and resolution: Rated voltage input range: -80 mV to +80 mV. Resolution with overrange: 16 bit; 15 bit + sign.
- Supply and current: Load voltage L+: rated 24 V DC from the power module. Maximum input current is 30 mA from load voltage L+ without load.
- Signal processing: Integration time is parameterizable at 16,7 / 20 ms; conversion time per channel is 65 ms, or 55 / 65 ms with an additional 20 ms on activated wire-break test.
- Diagnostics and isolation: Diagnostic information, wire-break detection for thermocouples, group error, overflow/underflow, and red SF group-error LED are supported. The analog inputs are isolated from the backplane bus and load voltage L+.

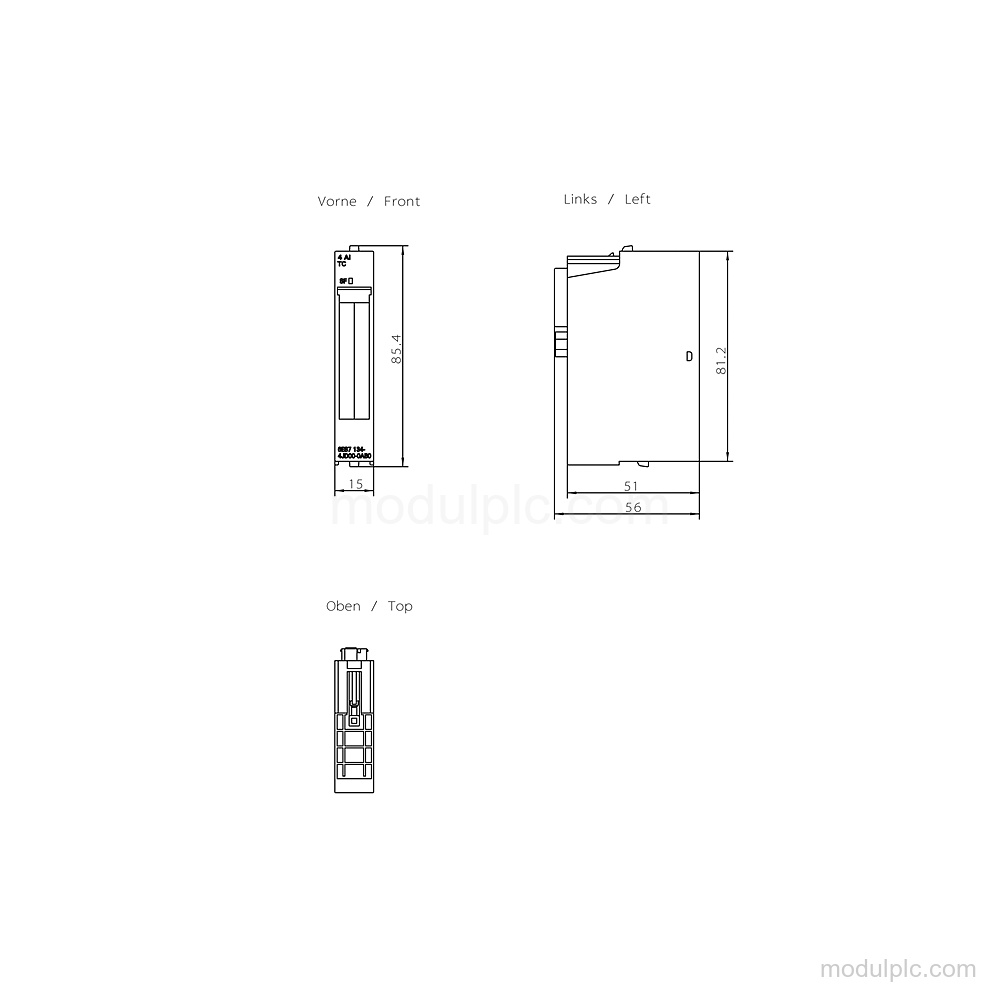

- Dimensions and lifecycle: Dimensions: 15 mm width, 81 mm height, and 52 mm depth; approximate weight: 40 g. Product cancellation; spare part.
Frequently Asked Questions
1. How many thermocouple inputs does 6ES7134-4JD00-0AB0 have?
It has 4 analog thermocouple inputs.
2. Which thermocouple types are supported?
Types B, E, J, K, L, N, R, S, and T are supported.
3. What input voltage range and resolution are available?
The rated voltage input range is -80 mV to +80 mV, with 16 bit resolution with overrange and 15 bit + sign.
4. What diagnostics are supported?
It supports readable diagnostic information, wire-break detection for thermocouples, group error, overflow/underflow, and a red SF group-error LED.
5. What should be verified before requesting a quote?
Verify the 24 V DC load voltage from the power module, the supported thermocouple type, the required integration and conversion time, and the need for one external compensating box per channel.
