Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 4 |
| Input signal range | 4 mA to 20 mA; into 25 Ohm |
| Resolution with overrange | 13 bit; 4 to 20 mA: 13 bit |
| Cycle time, all channels | Max. 40 ms; 33 to 40 ms |
| Rated load voltage L+ | 24 V DC; from power module |
| Transmitter supply | Present; short-circuit proof, approx. 200 mA for module |
| Burden of 2-wire transmitter, max. | 750 Ω |
| Current operational error limit | 0.4 % relative to input range |
| Group error indication | Red SF LED |
| Product lifecycle | Product cancellation |
Applications
- 2-wire transducer current measurement: Measures current from 2-wire transducers through the analog inputs in the 4 mA to 20 mA range.
Key Features
- Analog input channels: 4 analog inputs for 2-wire transducers with a 4 mA to 20 mA input range.
- Resolution and cycle time: 13-bit resolution with overrange; cycle time for all channels is max. 40 ms (33 to 40 ms).
- Supply and protection: Rated load voltage is 24 V DC from the power module, with reverse polarity protection. Transmitter supply is present and short-circuit proof at approx. 200 mA for the module.
- Diagnostics: Wire-break diagnosis is available for the 1 to 5 V measuring range only; group error and overflow/underflow diagnostics are available. Group error is indicated by the red SF LED.

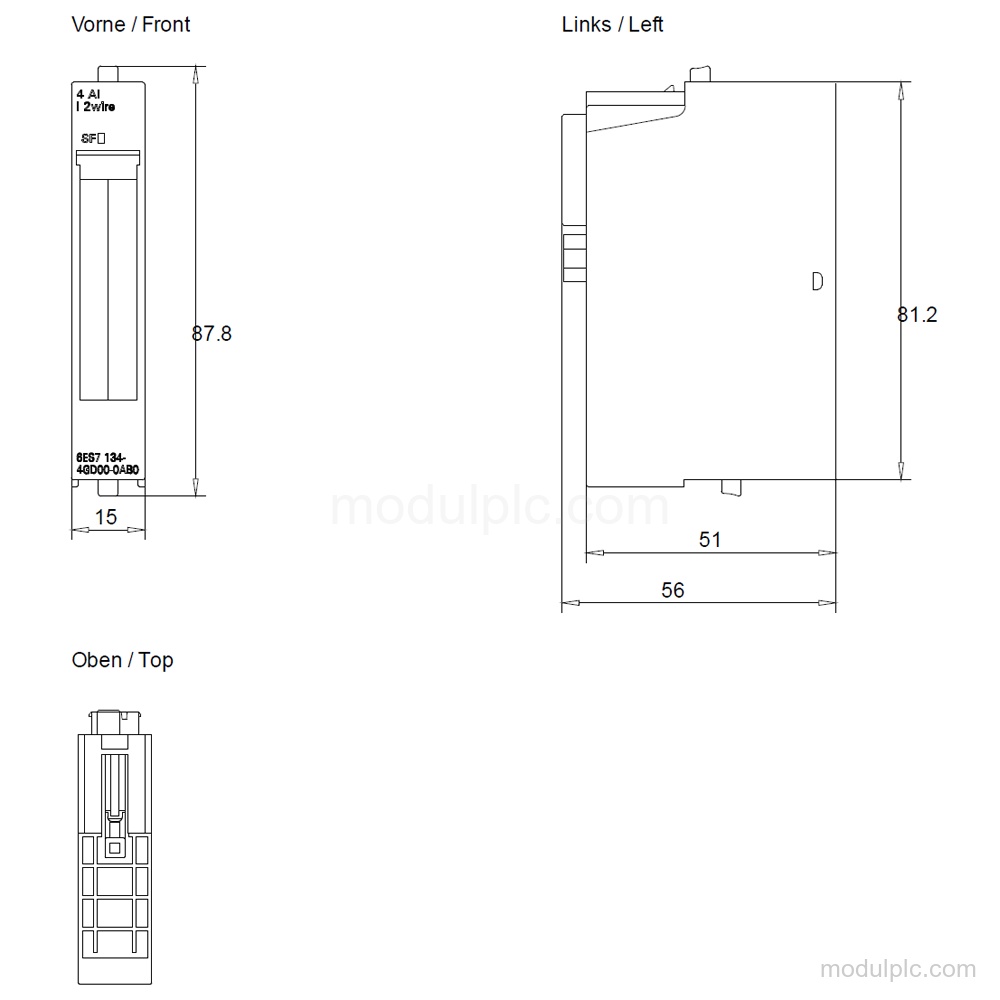

- Module dimensions: The module is 15 mm wide, 81 mm high and 52 mm deep, with an approximate weight of 40 g.
Frequently Asked Questions
1. How many analog inputs does the 6ES7134-4GD00-0AB0 have?
It has 4 analog inputs.
2. Which input signal range does this module support?
It supports 4 mA to 20 mA into 25 Ohm.
3. What resolution and cycle time are available?
Resolution with overrange is 13 bit; the cycle time for all channels is max. 40 ms (33 to 40 ms).
4. What supply does the module require?
The rated load voltage L+ is 24 V DC from the power module.
5. What should be verified before requesting a quote?
Verify the 15 mm module width, 2-wire transducer requirement, 200 m maximum shielded cable length and the Product cancellation lifecycle.
