Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 2 |
| Rated input ranges | 0 to 20 mA; 4 mA to 20 mA |
| Connection | 2-wire transducer for current measurement |
| Cycle time, all channels, max. | 0.25 ms |
| Resolution with overrange, max. | 16 bit |
| Load voltage L+, rated value (DC) | 24 V |
Applications
- Current measurement: Measures current using 2-wire transducers across the supported 0 to 20 mA and 4 mA to 20 mA input ranges.
Key Features
- Analog current inputs: Has 2 analog inputs for current measurement with 0 to 20 mA and 4 mA to 20 mA rated input ranges.
- 2-wire transducer connection: Supports connection of signal encoders for current measurement as 2-wire transducers.
- Resolution and cycle time: Resolution with overrange is up to 16 bit; cycle time for all channels is up to 0.25 ms.
- Diagnostics: Has hardware interrupt, wire-break diagnosis at 4 mA to 20 mA, group error and overflow/underflow diagnosis, with a red group error SF LED.
- Supply and protection: Load voltage L+ is rated at 24 V DC, with short-circuit and reverse polarity protection. Transmitter power supply is present and short-circuit proof.

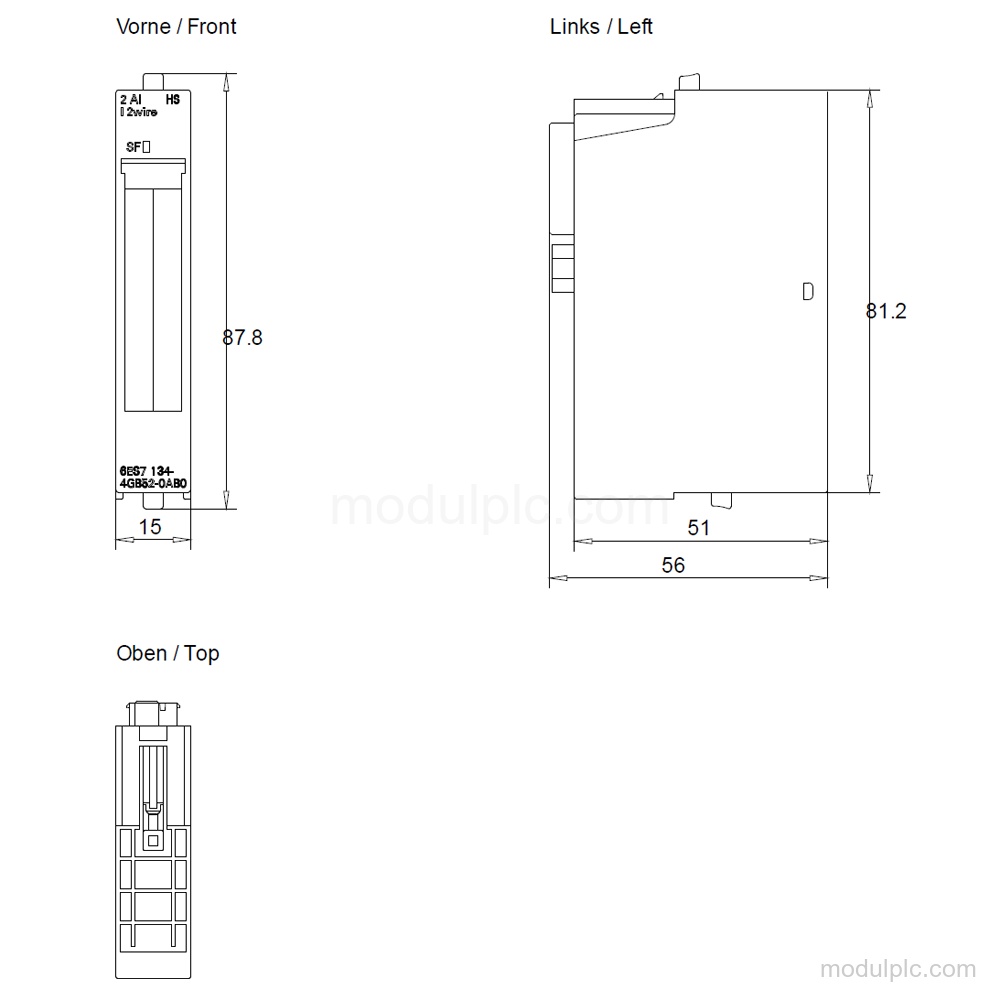

- Installation dimensions: Module width is 15 mm, height is 81 mm and depth is 52 mm.
Frequently Asked Questions
1. How many analog inputs does 6ES7134-4GB52-0AB0 have?
It has 2 analog inputs.
2. Which current input ranges are supported?
The rated input ranges are 0 to 20 mA and 4 mA to 20 mA.
3. Can it connect to a 2-wire transducer?
Yes. It supports current measurement with a 2-wire transducer.
4. What diagnostics are available?
It has hardware interrupt, wire-break diagnosis at 4 mA to 20 mA, group error, overflow/underflow and a red group error SF LED.
5. What should be verified before requesting a quote?
Verify the 24 V DC load voltage, 15 mm width, supported current range and shielded cable length up to 200 m.
