Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP electronics module for ET200S |
| Analog inputs | 2 |
| Input range | 4 mA to 20 mA on 50 ohms |
| Resolution | 13 bit with overrange |
| Conversion time | 65 ms per channel |
| 2-wire transducer burden | 750 Ω max. |
| Load voltage L+ | 24 V DC from power module |
| Protection diagnosis | Wire break, Group error, and Overflow/Underflow |
Applications
- Current signal acquisition: Acquires 4 mA to 20 mA current signals from 2-wire transducers.
Key Features
- Analog current inputs: 2 analog inputs support current measurement from 4 mA to 20 mA on 50 ohms.
- Resolution and conversion: Resolution with overrange is 13 bit; conversion time is 65 ms per channel.
- 2-wire transducer connection: The module supports 2-wire transducers with a maximum burden of 750 Ω.
- Diagnostics: Wire break, Group error, and Overflow/Underflow diagnoses are supported; group error is shown by the red SF LED.
- Supply and protection: Rated load voltage L+ is 24 V DC from the power module. Reverse polarity protection has a destruction limit of 35 mA per channel.

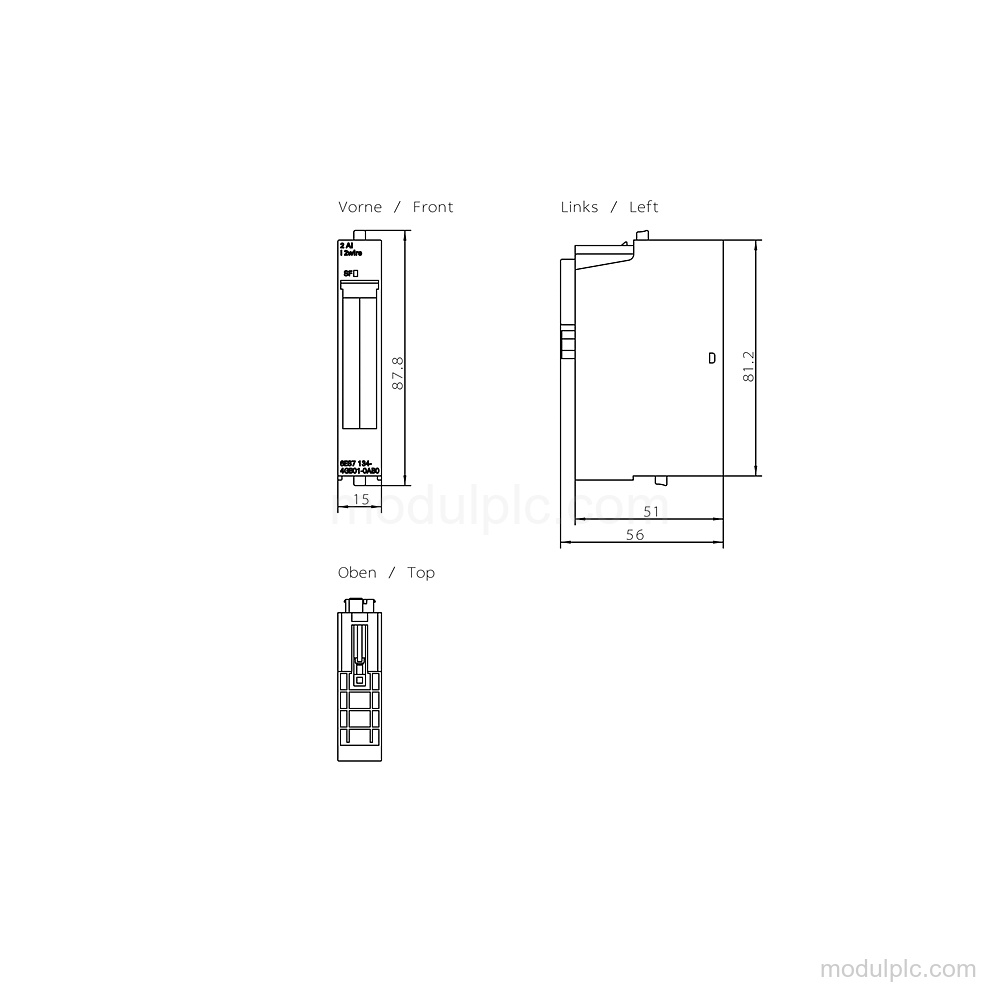

- Installation dimensions: The module measures 15 mm wide, 81 mm high, and 52 mm deep; weight is approximately 40 g.
Frequently Asked Questions
1. What type of signals does 6ES7134-4GB01-0AB0 acquire?
It acquires 4 mA to 20 mA current signals from 2-wire transducers.
2. How many analog inputs does the module have?
It has 2 analog inputs.
3. What resolution and conversion time are provided?
Resolution with overrange is 13 bit, and conversion time is 65 ms per channel.
4. What diagnostics are supported?
The module supports wire break, Group error, and Overflow/Underflow diagnoses, with Group error indicated by the red SF LED.
5. What should be verified before requesting a quote?
Verify the 24 V DC load voltage from the power module, 15 mm width, 2-wire transducer connection, and the maximum 750 Ω burden.
