Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module | SIMATIC DP ET 200S electronics module |
| Analog input channels | 2 |
| Rated input ranges | 1 V to 5 V; -10 V to +10 V; -2.5 V to +2.5 V; -5 V to +5 V |
| Maximum resolution | 16 bit; 15 bit: 1 to 5 V; ±2.5 V; 16 bit: ±10 V; ±5 V |
| Conversion time per channel | 15 μs |
| Module cycle time | 250 μs maximum (all channels) |
| Rated load voltage L+ | 24 V DC |
| Input current from load voltage L+ | 130 mA maximum (without load) |
| Isolation | Between channels and backplane bus: Yes; between channels and load voltage L+: Yes; between channels: No |
| Product lifecycle | Product cancellation |
Applications
- Voltage measurement: The module provides analog voltage measurement through its voltage input channels.
Key Features
- Analog voltage inputs: 2 high-speed analog inputs for voltage measurement.
- Supported input ranges: Rated input ranges: 1 V to 5 V, -10 V to +10 V, -2.5 V to +2.5 V, and -5 V to +5 V.
- Resolution and conversion: Resolution with overrange is 16 bit maximum; 15 bit applies to 1 V to 5 V and ±2.5 V, while 16 bit applies to ±10 V and ±5 V. Conversion time per channel is 15 μs.
- Supply and power: Load voltage L+ is 24 V DC rated, with reverse polarity protection. Input current from load voltage L+ is 130 mA maximum without load; power loss is 2 W typical.
- Diagnostics: The module has a red SF group-error LED, readable diagnostic information, wire-break diagnosis at 1 V to 5 V, hardware interrupt, group-error, and overflow/underflow diagnostics.

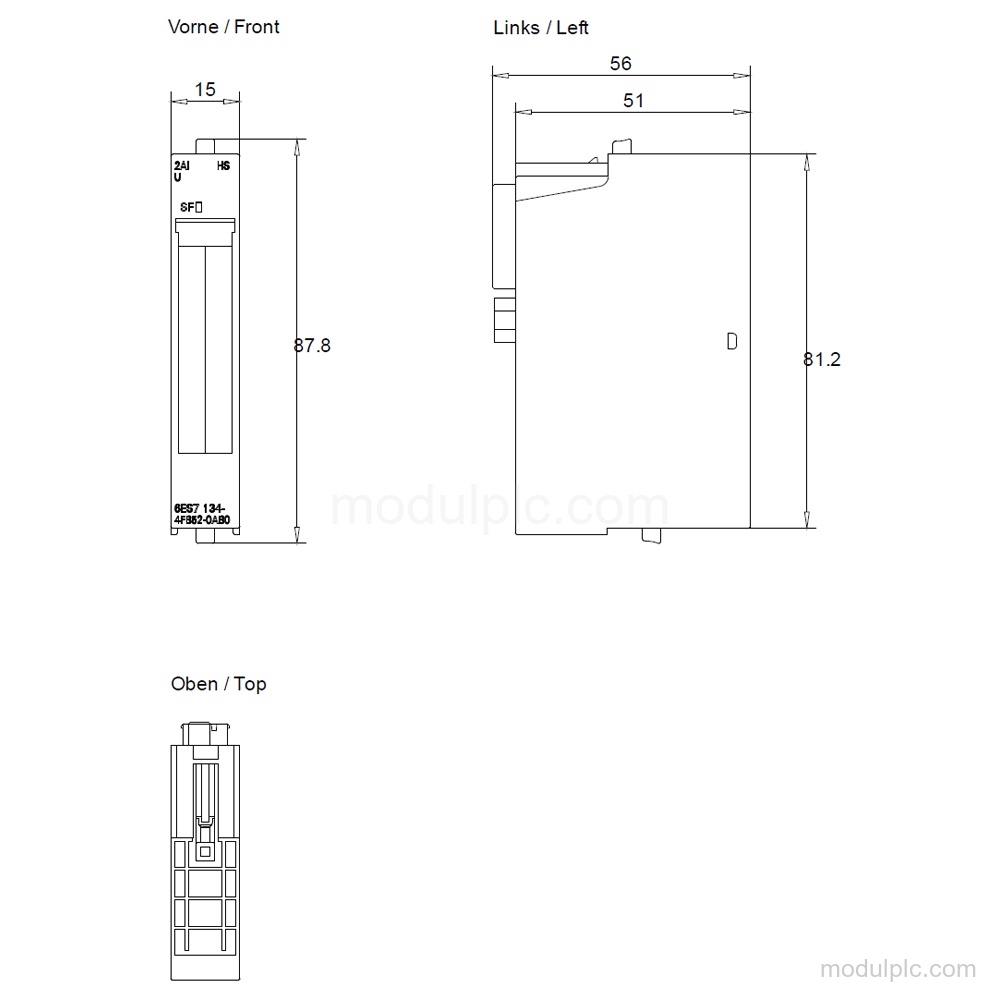

- Isolation and dimensions: The analog inputs are isolated from the backplane bus and load voltage L+ but not between channels. Dimensions are 15 mm × 81 mm × 52 mm; weight is approximately 40 g.
Frequently Asked Questions
1. How many analog inputs does 6ES7134-4FB52-0AB0 have?
It has 2 high-speed analog voltage inputs.
2. Which voltage input ranges does this module support?
It supports 1 V to 5 V, -10 V to +10 V, -2.5 V to +2.5 V, and -5 V to +5 V rated input ranges.
3. What resolution and conversion time does it provide?
Maximum resolution with overrange is 16 bit. Resolution is 15 bit for 1 V to 5 V and ±2.5 V, and 16 bit for ±10 V and ±5 V. Conversion time per channel is 15 μs.
4. What diagnostics are available?
It provides readable diagnostic information, hardware interrupt, group-error and overflow/underflow diagnostics, a red SF group-error LED, and wire-break diagnosis at 1 V to 5 V.
