Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP electronics module for ET 200S |
| Analog input channels | 2 |
| Supported voltage ranges | 1 V to 5 V; -10 V to +10 V; -5 V to +5 V |
| Resolution with overrange | Up to 14 bit including sign |
| Conversion time | 65 ms per channel |
| Load voltage L+ | 24 V DC from the power module |
| Wire-break diagnosis | Yes; 1 V to 5 V measuring range only |
| Group error indication | Red SF LED |
| Channel isolation | No |
| Backplane bus and load voltage isolation | Yes |
Applications
- Analog voltage measurement: Measures analog voltage signals through 2 voltage inputs using the supported 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V ranges.
Key Features
- Analog voltage inputs: Has 2 analog inputs supporting rated voltage ranges of 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V.
- Resolution and conversion: Resolution with overrange is up to 14 bit including sign; conversion time is 65 ms per channel.
- 24 V supply: Load voltage L+ is 24 V DC from the power module, with reverse polarity protection.
- Diagnostics: Has wire-break detection for the 1 V to 5 V measuring range, group error and overflow/underflow diagnostics, plus a red group error SF LED.
- Isolation and cable length: Analog inputs are isolated from the backplane bus and load voltage L+; the channels are not isolated from one another. Shielded cable length is up to 200 m.

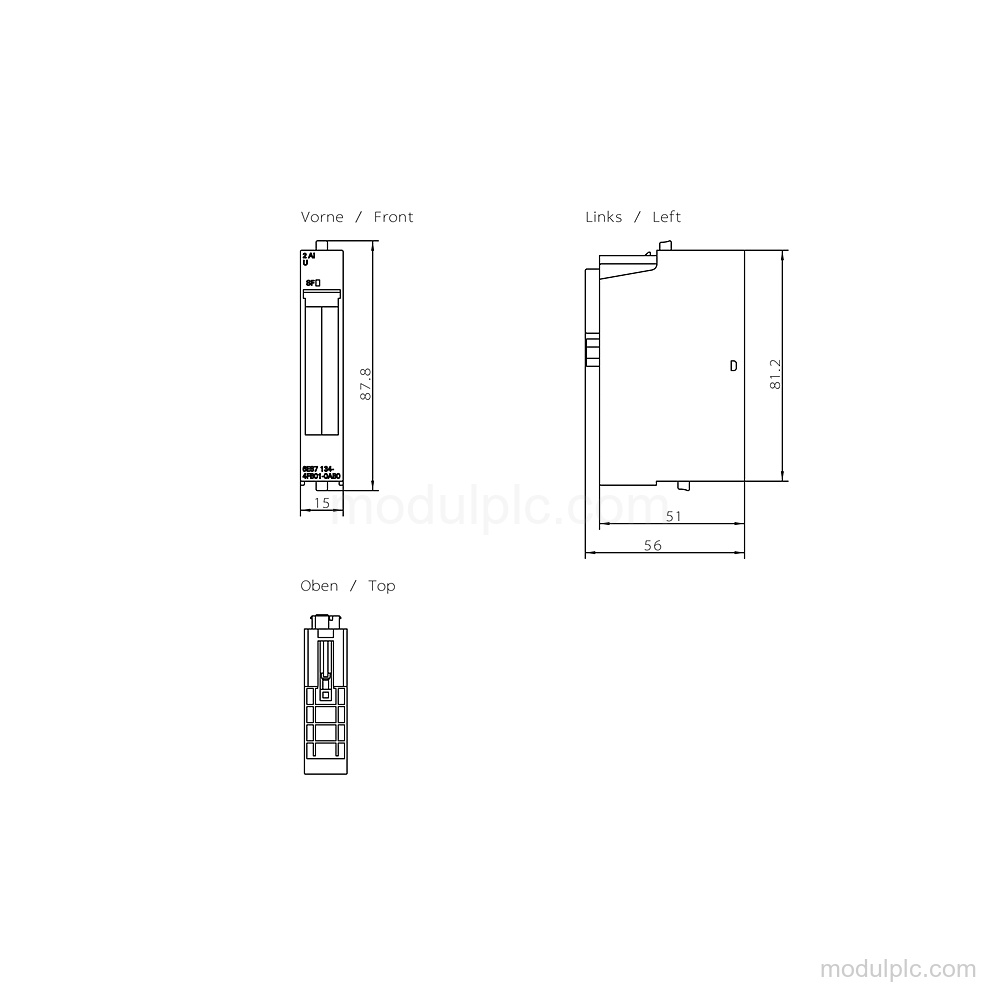

- Compact dimensions: Dimensions are 15 mm wide, 81 mm high, and 52 mm deep; weight is approximately 40 g.
Frequently Asked Questions
1. How many analog inputs does Siemens 6ES7134-4FB01-0AB0 have?
It has 2 analog voltage inputs.
2. Which voltage ranges does 6ES7134-4FB01-0AB0 support?
It supports 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V rated input ranges.
3. What are the resolution and conversion time?
Resolution with overrange is up to 14 bit including sign, and conversion time is 65 ms per channel.
4. What diagnostics are available?
It has wire-break detection for the 1 V to 5 V measuring range, group error and overflow/underflow diagnostics, and a red group error SF LED.
