Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Relays |
| Number of digital outputs | 2 |
| Load voltage L+ | 24 V; From power module |
| Output current for signal "1", rated value | 5 A; See data in manual |
| Output current for signal "1", minimum load current | 8 mA |
| Switching frequency with resistive load, max. | 2 Hz |
| Switching frequency with inductive load, max. | 0.5 Hz |
| Switching frequency with lamp load, max. | 2 Hz |
| External fuse requirement | 6 A |
| Substitute values | 0/1 |
| Diagnostics function | No |
Applications
- Digital output control: The relay outputs can control a digital input.
- Substitute value output: The module can connect substitute values of 0/1.
Key Features
- Relay outputs: The module has 2 digital relay outputs with isolated change-over contacts.
- Load voltage and output current: Load voltage L+ is rated at 24 V from the power module. Output current for signal "1" is rated at 5 A; the minimum load current is 8 mA.
- Switching frequency: Maximum switching frequency is 2 Hz with a resistive load, 0.5 Hz with an inductive load, and 2 Hz with a lamp load.
- Isolation and status indication: The digital outputs are electrically isolated between channels, between channels and the backplane bus, and between channels and load voltage L+. A green digital output status LED is provided.
- Substitute value output: Substitute values are connectable as 0/1. The module has no diagnostics function and no short-circuit protection; relay outputs must be fused externally with 6 A.

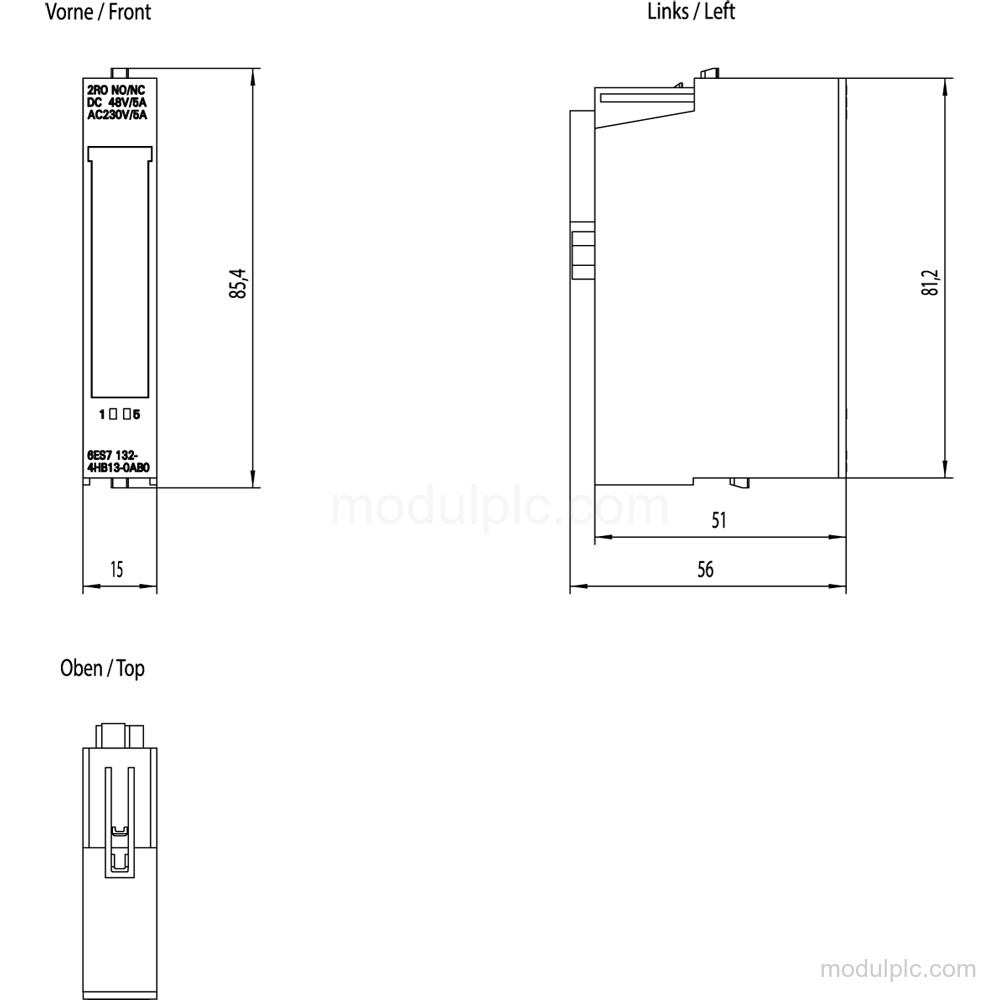

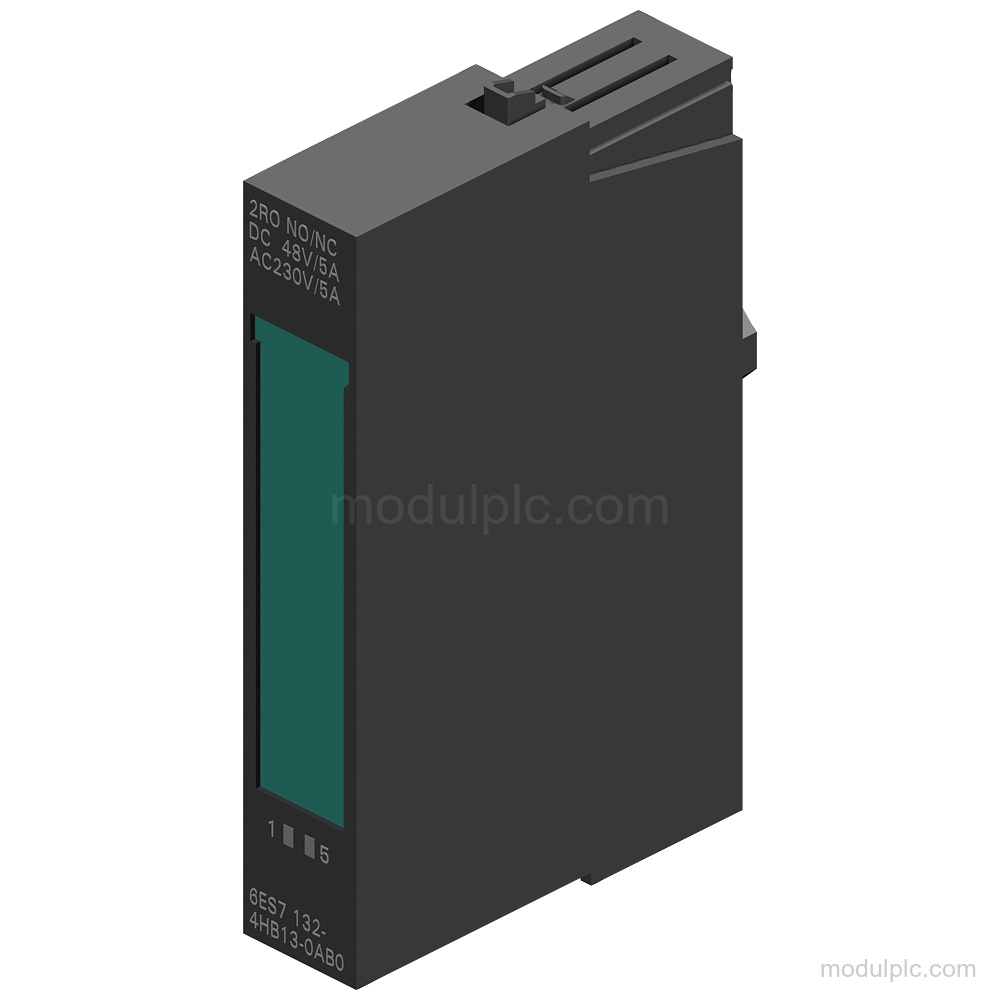

- Installation and dimensions: The module is 15 mm wide, 81 mm high, and 52 mm deep. For horizontal installation, the maximum is 5 A per channel up to 50 °C or 4 A per channel up to 60 °C; for vertical installation, it is 5 A up to 40 °C.
Frequently Asked Questions
1. How many digital outputs does 6ES7132-4HB13-0AB0 have?
It has 2 digital relay outputs.
2. What output current does the module support?
The rated output current for signal "1" is 5 A, and the minimum load current is 8 mA. See the data in the manual.
3. What load voltage is specified for the module?
Load voltage L+ is rated at 24 V from the power module.
4. Does the module have short-circuit protection and diagnostics?
It has no short-circuit protection and no diagnostics function. The relay outputs must be fused externally with 6 A.
