Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Relays |
| Number of digital outputs | 2 |
| Load voltage L+ | 24 V DC; From power module |
| Rated output current for signal "1" | 5 A |
| Minimum load current for signal "1" | 8 mA |
| Maximum switching frequency with resistive load | 2 Hz |
| Maximum switching frequency with inductive load | 0.5 Hz |
| Maximum switching frequency on lamp load | 2 Hz |
| Substitute values | Connectable; 0/1 |
Applications
- Digital output control: The relay outputs control digital inputs.
Key Features
- Relay digital outputs: The module has 2 relay digital outputs with 5 A rated output current for signal "1" and 8 mA minimum load current.
- Load voltage and protection: Load voltage L+ is 24 V DC from the power module, with reverse polarity protection.
- Substitute value output: Substitute values are connectable as 0/1, with a green digital-output status indicator.
- Electrical isolation: The digital outputs are electrically isolated between channels, the backplane bus, and load voltage L+.
- Switching frequency: Maximum switching frequency is 2 Hz with resistive load, 0.5 Hz with inductive load, and 2 Hz on lamp load.

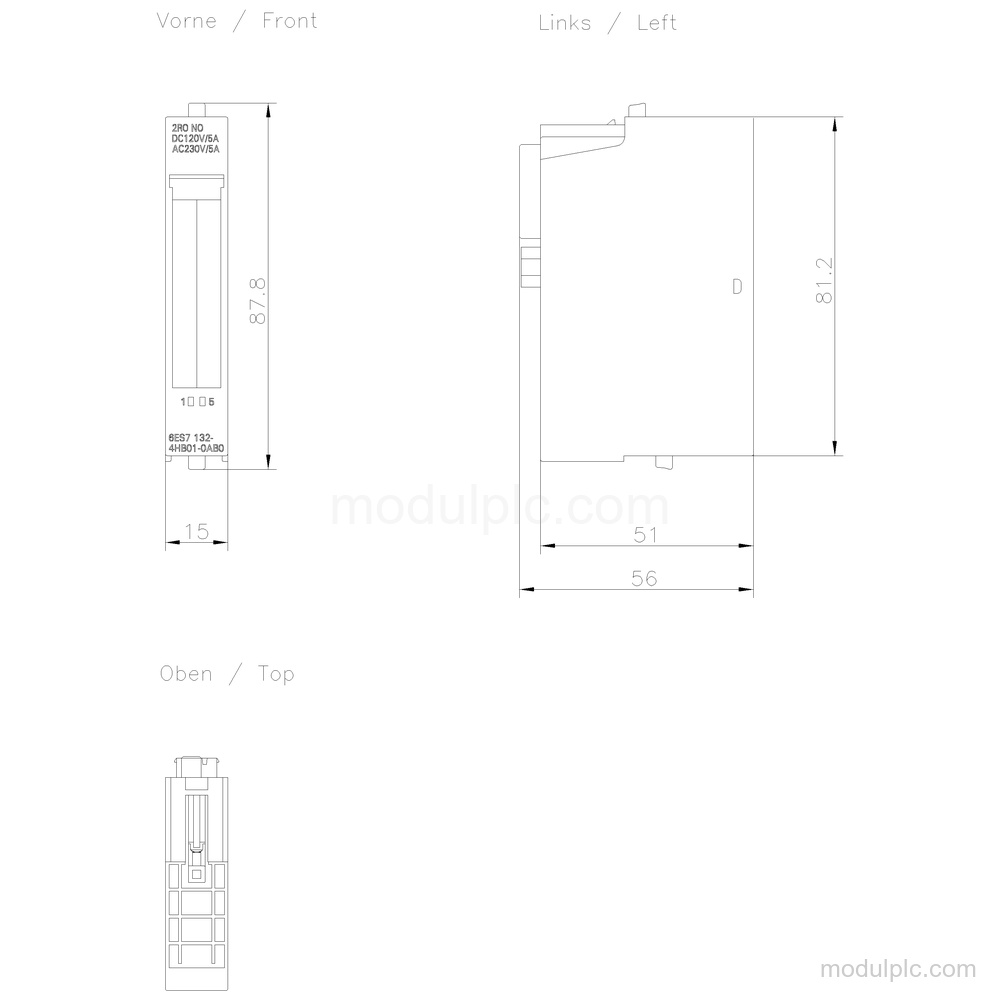

- Compact dimensions: The module is 15 mm wide, 81 mm high, and 52 mm deep; approximate weight is 50 g.
Frequently Asked Questions
1. What type of outputs does Siemens 6ES7132-4HB01-0AB0 have?
It has 2 relay digital outputs.
2. What load voltage does this module use?
Load voltage L+ is 24 V DC from the power module, with reverse polarity protection.
3. What output current is supported?
The rated output current for signal "1" is 5 A, and the minimum load current is 8 mA.
4. Does the module provide diagnostics?
No. The diagnostics function is not available, but substitute values are connectable as 0/1.
5. What are the module dimensions?
Width is 15 mm, height is 81 mm, and depth is 52 mm.
