Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP electronic module for ET 200S |
| Digital outputs | 2 Triac outputs |
| Load voltage | 24 V to 230 V AC, from power module |
| Signal "1" output current | 2 A rated value; 0.1 mA to 2.2 A permissible range |
| Switching frequency | 10 Hz maximum with resistive load; 0.5 Hz maximum with inductive load; 1 Hz maximum on lamp load |
| Short-circuit protection | Yes |
| Diagnostics function | No |
| Digital output status indication | Green LED, yes |
| Channel isolation | No |
| Isolation from backplane bus | Yes; tested with 2 500 V DC |
| Packing unit | 5 units |
Applications
- Digital output control: Controls digital inputs through the digital outputs; this function is possible.
- Redundant load control: Supports redundant control of a load per module.
Key Features
- Digital outputs: 2 Triac digital outputs with short-circuit protection and green status indication.
- Load voltage: 24 V to 230 V AC permissible load voltage range from the power module.
- Output current: Signal "1" output current: 2 A rated value, with a permissible range of 0.1 mA to 2.2 A.
- Output switching: Maximum switching frequency is 10 Hz with resistive load, 0.5 Hz with inductive load, and 1 Hz on lamp load.
- Isolation: Digital outputs are not isolated between channels, but are isolated from the backplane bus; isolation is tested with 2 500 V DC.

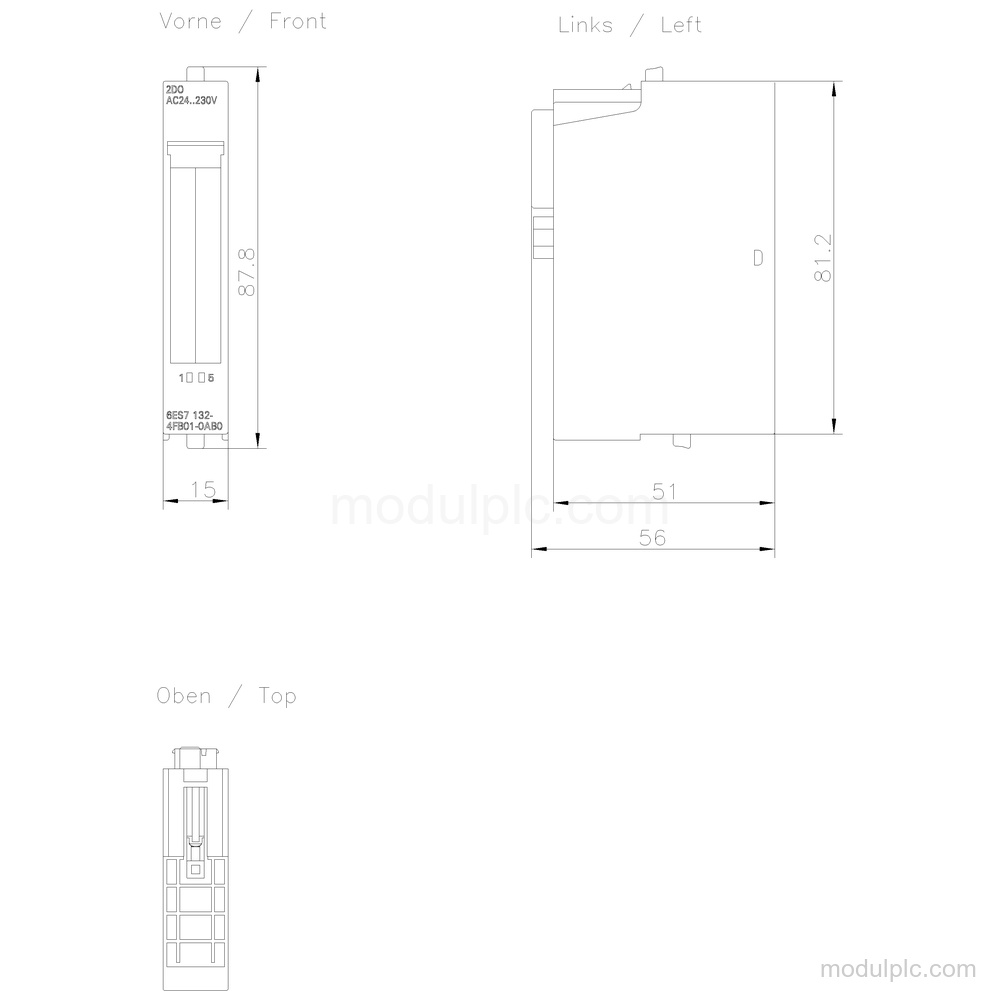

- Module dimensions: 15 mm width, 81 mm height, and 52 mm depth; approximate weight is 37 g.
