Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP electronic module for ET 200S |
| Digital outputs | 4 transistor outputs |
| Load voltage L+ | 24 V DC; from power module |
| Rated output current for signal "1" | 2 A |
| Permissible output current for signal "1" | 7 mA to 2.4 A |
| Short-circuit protection | Yes |
| Short-circuit diagnosis | Yes; module-wise |
| Group error indication | SF LED, red |
| Power loss, typ. | 1.6 W |
Applications
- Digital input control: The digital outputs can control a digital input.
- Redundant load control: Redundant control of a load is supported per module.
Key Features
- Digital outputs: 4 transistor digital outputs with a rated output current of 2 A for signal "1".
- Load voltage: Rated load voltage L+ is 24 V DC from the power module.
- Output protection: Short-circuit protection is provided, with short-circuit diagnosis available module-wise.
- Diagnostics indication: A red SF LED indicates group error; green digital-output status indicators are provided per channel.

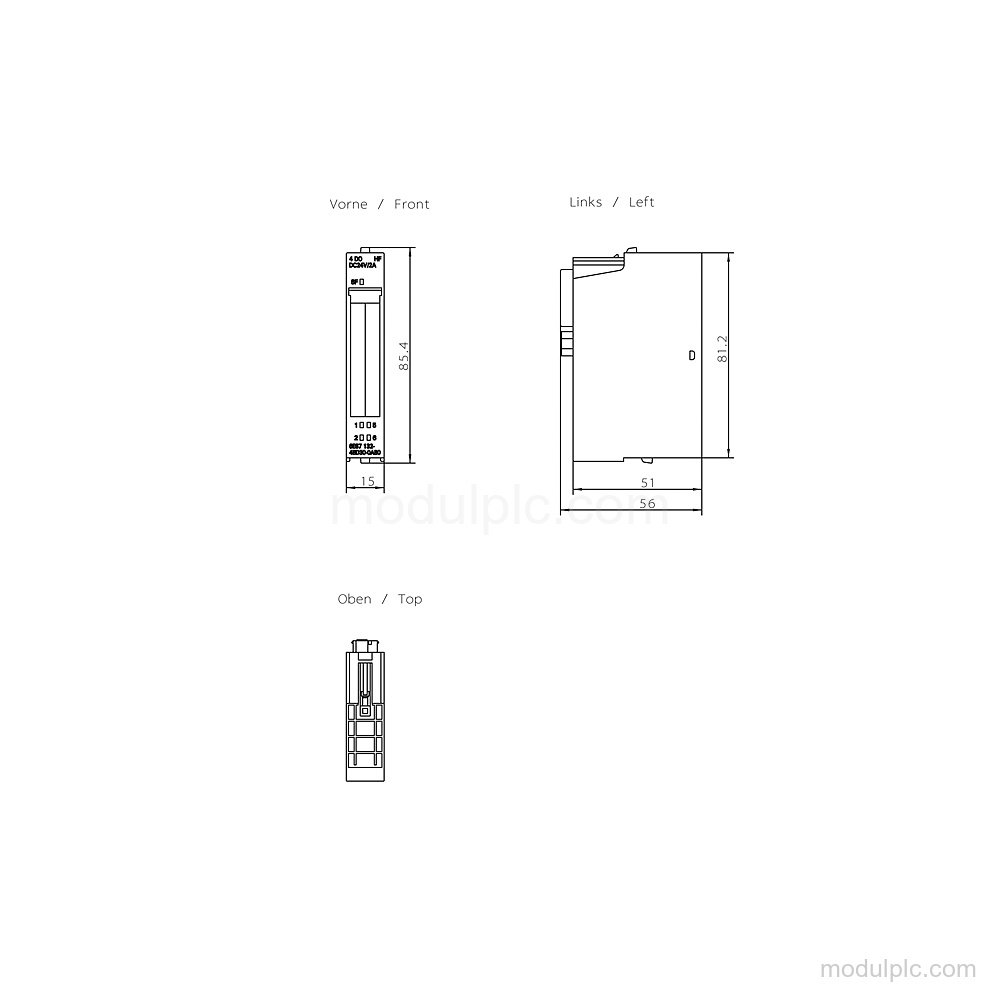

- Module dimensions: The module is 15 mm wide, 81 mm high, and 52 mm deep.
- Output switching: Maximum switching frequency is 100 Hz with resistive load, 2 Hz with inductive load, and 10 Hz on lamp load.
Frequently Asked Questions
1. What type of outputs does the Siemens 6ES7132-4BD30-0AB0 have?
It has 4 transistor digital outputs.
2. What load voltage does this module require?
The rated load voltage L+ is 24 V DC from the power module.
3. Does the module provide short-circuit diagnostics?
Yes. It has short-circuit protection and module-wise short-circuit diagnosis.
4. How wide is the module?
The module width is 15 mm.
