Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Source output (PNP, current-sourcing) |
| Digital output channels | 4 |
| Load voltage L+ | 24 V DC rated value; from power module |
| Rated output current for signal "1" | 0.5 A |
| Permissible output current for signal "1" | 7 mA to 600 mA |
| Output delay with resistive load | Max. 50 μs from "0" to "1"; max. 120 μs from "1" to "0" |
| Short-circuit protection | Yes |
| Output switching frequency | Max. 800 Hz with resistive load; max. 2 Hz with inductive load; max. 10 Hz on lamp load |
| Total output current | Max. 2 A per module |
| Status indicator | Green digital-output status indicator LED: Yes |
| Potential separation | No between channels; yes between channels and backplane bus |
Applications
- Digital output control: The module provides source digital outputs and can control a digital input.
Key Features
- Digital outputs: 4 source outputs (PNP, current-sourcing) with 0.5 A rated output current for signal "1".
- Supply and load voltage: Load voltage L+: 24 V DC rated value, from the power module.
- Output protection: Short-circuit protection is provided; reverse polarity protection is provided, with polarity reversal potentially connecting the digital outputs through.
- Output timing: Output delay with resistive load is max. 50 μs from "0" to "1" and max. 120 μs from "1" to "0".
- Status indication and isolation: A green digital-output status indicator LED is provided. The channels have no potential separation from each other, while the channels are separated from the backplane bus.

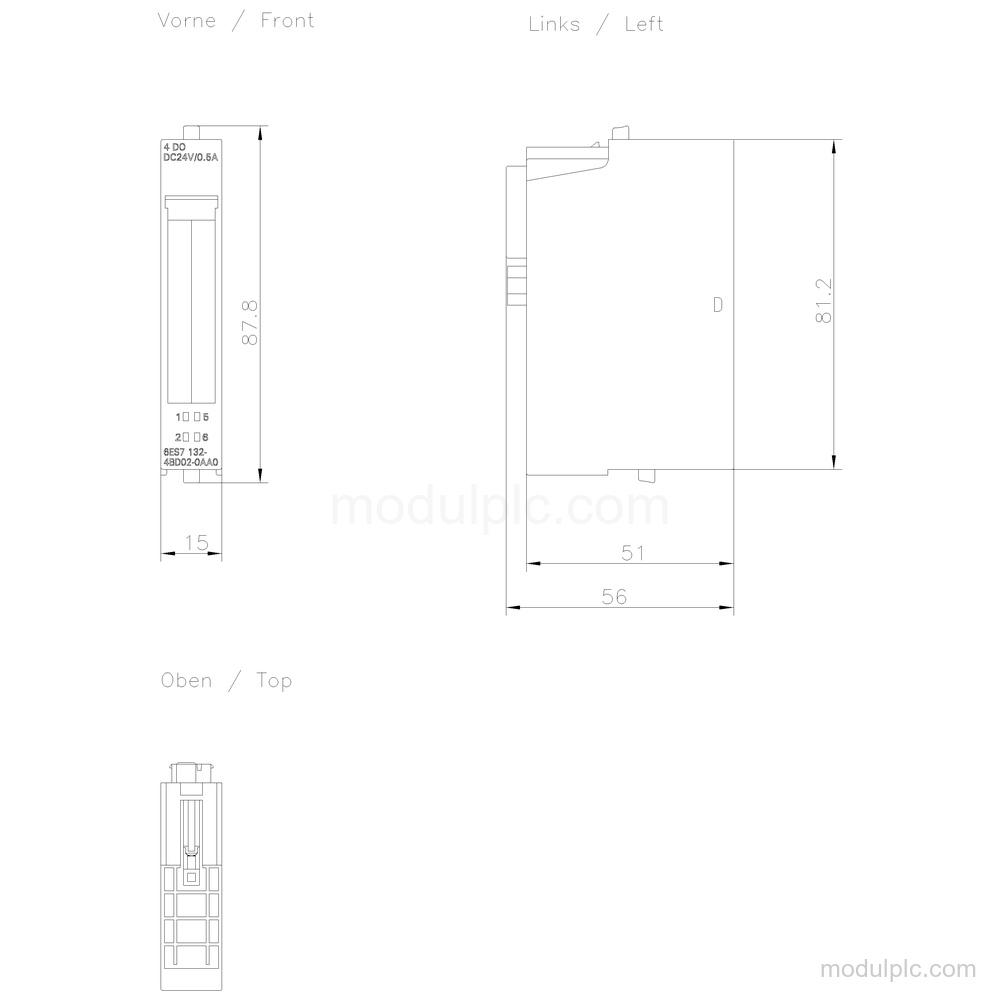

- Module dimensions and packing: Dimensions are 15 mm width, 81 mm height, and 52 mm depth; the product description specifies 5 units per packing unit.
Frequently Asked Questions
1. What output type does the 6ES7132-4BD02-0AA0 use?
It uses 4 source digital outputs (PNP, current-sourcing).
2. What load voltage and output current does this module support?
Load voltage L+ is 24 V DC from the power module. Rated output current for signal "1" is 0.5 A, with a permissible range of 7 mA to 600 mA.
3. Does the module provide short-circuit protection and status indication?
Yes. It has short-circuit protection and a green digital-output status indicator LED. Its diagnostics function is not provided.
4. What are the module dimensions?
The dimensions are 15 mm width, 81 mm height, and 52 mm depth. The product description specifies 5 units per packing unit.
